🧩 Maps

An extension for MIT App Inventor 2.
Developed by mariosoft using Fast.

Version 1.4

Fixed bugs related to deleting elements and button visibility

Route navigation has been added to adapt it to the extension. For this, you need a free API key from https://openrouteservice.org/

The blocks for this are as follows:

13. onCalculating

Event in calculating Navigation

Parameter Type
Km text
Time text
Points list
Json text
LatStart number
LonStart number
LatEnd number
LonEnd number

14. NavigationCompleted

Event that is triggered when the user reaches the final destination.

31. StartNavigation

Start Navigation

32. Navigation

Navigation

Parameter Type
latitud number
longitud number
speed number
Transportation text

34. RequestNavigation

Request Navigation

Parameter Type
Lat1 text
Lon1 text
Lat2 text
Lon2 text

35. keepsScreen

It keeps the screen on so that the GPS doesn’t stop during navigation.

Parameter Type
Active boolean

2. NavigatorApiKey

Api Key Navigator

  • Input type: text

3. Transportation

Type Transportation (foot-walking, driving-car, cycling-regular)

  • Input type: text

2. NavigatorApiKey

Api Key Navigator

  • Return type: text

3. Transportation

Type Transportation (foot-walking, driving-car, cycling-regular)

  • Return type: text

4. KmRemaining

Km remaining

  • Return type: text

5. SpeedRoute

Speed Route

  • Return type: text

6. InsRoute

Instruction Route

  • Return type: text

7. TimeRemaining

Time Remaining

  • Return type: text

Access to Google Street View has been added with the following blocks:

2. OpenStreetView

Load Street View in the current viewer using coordinates.

Parameter Type
lat number
lng number

3. CloseStreetView

Close Street View

Map rotation and zoom functionality have been added.

27. ActiveRotationFingers

Define whether the two fingers zoom (false) or rotate (true).

Parameter Type
OnlyRotate boolean

A compass and scale have been added, which can be visible or hidden at the user’s discretion.

4. ShowCompass

See or hide the compass

Parameter Type
visible boolean

5. ShowScale

Show or hide the scale and configure the measurement type (imperial or decimal)

Parameter Type
visible boolean
useImperial boolean

Other included features

33. Language

Language

  • Return type: text

28. Providers

List of Provider

  • Return type: list

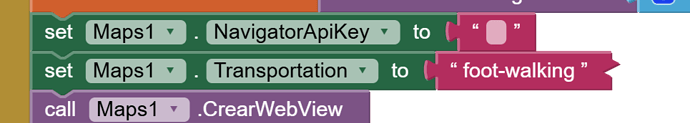

Two AIAs are now included: one for an overview of the extension and another for navigating an OpenStreamRoute route. In the general AIA, actions are performed via the map button, and in the navigation AIA, you must include its API key for it to work.

key
key965×173 25 KB

Version 1.3

Errors have been corrected regarding hiding the map button and the information displayed on elements when clicked.

:memo: Specifications

:package: Package: es.mariosoft.maps
:floppy_disk: Size: 44,38 KB
:gear: Version: 1.4
:mobile_phone: Minimum API Level: 14
:date: Updated On: 2026-03-03T23:00:00Z
:laptop: Built & documented using: FAST v5.5.0

Events:

Maps has total 14 events.

1. ButtonClick

It is triggered when the user touches the floating circular button on the map.

2. ReceiveMeasure

Event that returns the requested measurement (meters or square meters).

Parameter Type
id text
tipo text
valor number

3. ReceiveCoordinates

Event received when requesting the coordinates of a marker

Parameter Type
id text
lat number
lng number

4. Rotate

Event that is triggered when a touch zoom/rotate gesture is completed.

Parameter Type
angle number

5. ZoomChange

Event received when Zoom Change

Parameter Type
nivel number

6. MapClick

Event received when Click Map

Parameter Type
lat number
lng number

7. MapLongClick

Event received when LongClick Map

Parameter Type
lat number
lng number

8. ElementClick

Event received when Click Element

Parameter Type
id text
lat number
lon number
info text
type text

9. MarkDoubleClick

Event received when DoubleClick Mark

Parameter Type
id text
lat number
lon number
info text
type text

10. CircleClick

Event received when Click Circle

Parameter Type
id text
lat number
lng number
type text

11. ElementDragged

Event received when one element dragged

Parameter Type
id text
lat number
lng number

12. MapReady

It fires when the map has loaded and is ready to receive commands.

13. onCalculating

Event in calculating Navigation

Parameter Type
Km text
Time text
Points list
Json text
LatStart number
LonStart number
LatEnd number
LonEnd number

14. NavigationCompleted

Event that is triggered when the user reaches the final destination.

Methods:

Maps has total 35 methods.

1. CrearWebView

Initialize a custom WebView in the chosen container

Parameter Type
contenedor component

2. OpenStreetView

Load Street View in the current viewer using coordinates.

Parameter Type
lat number
lng number

3. CloseStreetView

Close Street View

4. ShowCompass

See or hide the compass

Parameter Type
visible boolean

5. ShowScale

Show or hide the scale and configure the measurement type (imperial or decimal)

Parameter Type
visible boolean
useImperial boolean

6. InitMap

Initialize the map to an exact location and zoom level (always include this in MapReady())

Parameter Type
lat number
lng number
zoom number

7. Layers

Change the map layer, layersname = OSM Mapnik, OSM Humanitarian, ESRI World Street Map, ESRI World Imagery, ESRI World Topo Map, CartoDB Positron, CartoDB Dark Matter, OPNVKarte, OpenTopoMap, OSM Cycle, Top Plus Color, Top Plus Gray

Parameter Type
layername text

8. CrearMarca

Create a brand with position, pop-up window, color (grades 0 a 360, example red 140, green 260, blue 0 purpple 100…, try several values) and drag option.

Parameter Type
id text
lat number
lng number
info text
color number
drag boolean

9. RotateMapa

Rotate the map to orient yourself according to the bearing or compass (it automatically reverses the rotation).

Parameter Type
grados number

10. IconMark

Replace a Mark icon with an image URL or an asset file. recomended max size 64

Parameter Type
id text
iconoUrl text
size number

11. AngleMark

Rotate a mark the indicated degrees, When using locationsensor, the icon must be facing north to function correctly.

Parameter Type
id text
grados number

12. MoveMark

Move a marker to a specific latitude and longitude

Parameter Type
id text
lat number
lng number

13. DrawLine

Draw a Line on the map, json format [[lat,lon],[lat,lon]…], color ‘blue’, ‘red’… or type ‘#3388ff’

Parameter Type
id text
json text
color text
thickness number
info text
discontinuous boolean

14. DrawPolygon

Draw a polygon on the map, json format [[lat,lon],[lat,lon]…], color ‘blue’, ‘red’… or type ‘#3388ff’

Parameter Type
id text
json text
color text
info text
drag boolean

15. DrawCircle

Draw a circle on the map, color ‘blue’, ‘red’… or type ‘#3388ff’

Parameter Type
id text
lat number
lng number
rad number
color text
drag boolean

16. MarkCoordinates

Request the coordinates of a marker

Parameter Type
id text

17. ClearMap

Clear map

18. SetView

Change position and zoom simultaneously with a flight effect.

Parameter Type
lat number
lng number
zoom number

19. SetZoom

Change the zoom without moving the coordinates.

Parameter Type
nivel number

20. CenterMap

Center Map

Parameter Type
lat number
lng number

21. JSONAListoCoordeinates

Convert list JSON [[lat,lng],…] in one List of List App Inventor.

  • Return type: list
Parameter Type
jsonTexto text

22. ListCoordinatesAJSON

Convert ones list of coordinates App Inventor a JSON list coordinates.

  • Return type: text
Parameter Type
lista list

23. DeleteElement

Delete any element

Parameter Type
id text

24. BoundigBoxMap

Bounding box map on four points

Parameter Type
n number
s number
e number
w number

25. BoundigBoxElement

Adjust the camera to perfectly frame a specific item using its ID.

Parameter Type
id text

26. RequestMeasure

Request the measurement (area or length) of an item by its ID.

Parameter Type
id text

27. ActiveRotationFingers

Define whether the two fingers zoom (false) or rotate (true).

Parameter Type
OnlyRotate boolean

28. Providers

List of Provider

  • Return type: list

29. Distances

Returns the distance in meters between two coordinates

  • Return type: number
Parameter Type
lat1 number
lon1 number
lat2 number
lon2 number

30. Heading

Calculate the angle (0-360) between two GPS coordinates.

  • Return type: number
Parameter Type
lat1 number
lng1 number
lat2 number
lng2 number

31. StartNavigation

Start Navigation

32. Navigation

Navigation

Parameter Type
latitud number
longitud number
speed number
Transportation text

33. Language

Language

  • Return type: text

34. RequestNavigation

Request Navigation

Parameter Type
Lat1 text
Lon1 text
Lat2 text
Lon2 text

35. keepsScreen

It keeps the screen on so that the GPS doesn’t stop during navigation.

Parameter Type
Active boolean

Setters:

Maps has total 3 setter properties.

1. ButtonVisible

Show or hide the circular button on the map.

  • Input type: boolean

2. NavigatorApiKey

Api Key Navigator

  • Input type: text

3. Transportation

Type Transportation (foot-walking, driving-car, cycling-regular)

  • Input type: text

Getters:

Maps has total 7 getter properties.

1. ButtonVisible

Show or hide the circular button on the map.

  • Return type: boolean

2. NavigatorApiKey

Api Key Navigator

  • Return type: text

3. Transportation

Type Transportation (foot-walking, driving-car, cycling-regular)

  • Return type: text

4. KmRemaining

Km remaining

  • Return type: text

5. SpeedRoute

Speed Route

  • Return type: text

6. InsRoute

Instruction Route

  • Return type: text

7. TimeRemaining

Time Remaining

  • Return type: text

After help from TIMAI2 and suggestions from curious_singh, Zaq_Qum, and David_B, significant modifications have been made to the extension:

  1. The extension now ignores the App Inventor WebView and generates from the native Android WebView component. You will need to specify a container to include the map. This eliminates the zoom button and makes map interaction smoother.

  2. The map now adapts 100% to the container size.

  3. Mark icons now have a new “size” parameter where you specify the icon size up to infinity, although 64 is recommended. You must consider the size of the asset icon to avoid misalignment.

  4. The extension now works with both the App Inventor Companion and Kodular Companions without asset permission issues.

  5. In addition to the clean map, you can now delete elements individually. To do this, each element (Marks, Lines, Polygons, and Circles) must have an ID. (Unique)

  6. The colors of the circle, line, and polygon can be in #3388ff format or with the color’s own name.

  7. In the case of watermarks, it’s different; it allows a color change from 0 to 360 degrees depending on the hue filter of the CSS file. 8. Elements allow a click event, returning all element information, except for markers, which will be triggered by a double click, as a single click is reserved for popup information.

  8. Two Bounding Boxes have been included: one over the map with the north, south, east, and west coordinate parameters, and another over each element.

  9. The map rotation function has been included.

  10. The map includes a button that can be deleted by the user, which would be very useful for, for example, centering my position and creating a marker at my location, or anything else I want to do.

  11. Functions have been included that calculate the length of the line in meters and the areas of the polygon and circle in square meters.

  12. Four new layers have been included.

  13. Two new functions have been included: one that converts a JSON of coordinates into an App Inventor list of lists, and another that converts an App Inventor list of coordinates into a JSON coordinate string.

es.mariosoft.maps.aix (45.1 KB)

Mapas.aia (75.5 KB)

Navegar.aia (113.8 KB)

Un saludo
