AudioVisualize: Extension for creating audio visualisation effects

vknow360 · June 10, 2023, 8:37am

1. Introduction

Description: Using this extension, you can create audio visualisation effects such as Wave , Bar, Hifi, Circle, etc.
Latest Version: 1
Released: 2023-06-09T18:30:00Z
Last Updated: 2023-06-09T18:30:00Z
Permissions: android.permission.RECORD_AUDIO

2. Blocks

3. Usages & Docs

Init Player

Attach Player component to visualizer

Init visualizers

Show/Hide by id

Remove visualizer

Increase/Decrease visualizer quality

Default: 0.25

animSpeed: SLOW, MEDIUM, FAST

style: FILL, OUTLINE

gravity: TOP, BOTTOM

4. Previews

Blast:

Wave;

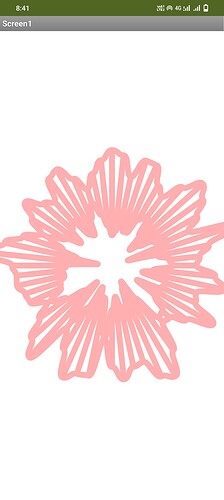

Circle:

Hifi:

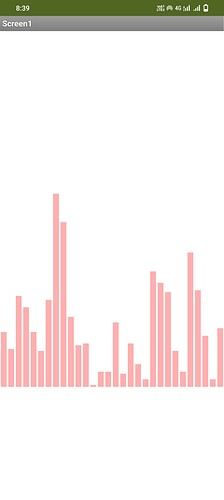

Bar:

5. Download

Aix:
com.sunny.visualize.aix (33.2 KB)

Hope it helps!

Md_Tohaa · June 10, 2023, 1:50pm

Can i do this using youtube video player?

vknow360 · June 10, 2023, 2:08pm

You want to visualize audio from YouTube player?

Md_Tohaa · June 10, 2023, 4:58pm

Yes
Is it possible?

vknow360 · June 10, 2023, 5:06pm

It seems but it might not be possible as well.
I’ll check tomorrow.

H_Player · September 25, 2023, 9:35pm

Good working
Can you add play source url online .

vknow360 · September 26, 2023, 6:48am

If player can play audio from url then extension works with online source too.
Extension doesn’t ask you to specify audio file anyway.

hamidolit03 · January 28, 2024, 11:04am

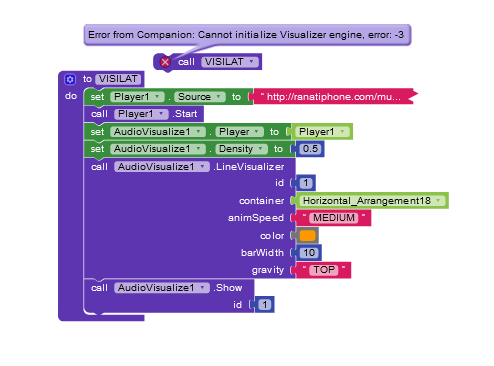

i get this error
Cannot initialize Visualizer engine, error: -3
screenshot-creator.kodular.io-2024.01.28-11_59_58

thank y for help

vknow360 · January 28, 2024, 12:24pm

Ok, I never mentioned but extension needs android.permission.RECORD_AUDIO permission.

hamidolit03 · January 28, 2024, 7:57pm

Yes it working good thank you

sp4ubw · February 3, 2024, 10:32am

How to use exoplayer?
When I try to use exoplayer, I get an error, and only this one works properly and I cannot use another one instead.

vknow360 · February 3, 2024, 2:07pm

Since Kodular is closed source so I don’t have access to ExoPlayer component’s source. I need at least exoplayer field’s name to use reflection.
Can you help? @pavi2410

sp4ubw · February 3, 2024, 2:14pm

I didn’t know that the encoder was closed. I don’t follow the posts.
Ok, what exactly should I give you?

Is an error message with visible entries enough?

vknow360 · February 3, 2024, 2:22pm

Nothing for you to do.
Just wait until Pavi replies.

jjteban114 · February 14, 2024, 3:30pm

Good morning
how to reduce audioVisualize line to have like this, thank you
Wave
image size 150x90

vknow360 · February 14, 2024, 5:27pm

Like this. (Line Visulaizer)

jjteban114 · February 14, 2024, 9:35pm

when I put line and wave have an error message : setCaptureSize() called in wrong state: 2
Note: You will not see another error reported for 5 seconds.

jjteban114 · February 14, 2024, 9:37pm

and I would like to have a small wave. I reduced the arrangement but nothing changed
