Downloading pdf file generated by html

_kids_jollytv · June 15, 2026, 5:31pm

Hello

I have created an HTML page inside a WebViewer that generates a PDF file using JavaScript (jsPDF/html2pdf).

The PDF is generated successfully, but I am facing an issue downloading/saving the PDF file on Android devices when running inside Kodular WebViewer.

My Requirement

Generate PDF from HTML content
Download/Save PDF to device storage
Work inside Kodular Android App
Support Android 10, 11, 12, 13+

Current Issue

The PDF generation works, but the download button does not save the file or trigger a download in Kodular WebViewer.

Questions

What is the best way to download a PDF generated inside WebViewer?
Should I use WebViewString communication with Kodular?
Is there any JavaScript method that works reliably in Kodular?
How can I save the PDF directly to the Download folder?

Any sample blocks, extensions, or working examples would be greatly appreciated.

Thank you.

RaYzZz · June 15, 2026, 7:27pm

Hi dear,

I think the issue is with the Kodular WebViewer, which is a bit limited.
Using CustomWebView should solve the problem.

Make sure you use the latest version 13
CustomWebView : An extended form of Web Viewer - #723 by vknow360 - Extensions - MIT App Inventor Community

Below I leave you an example using eKoopmans/html2pdf.js

html2pdf.html

<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">

<script src="https://cdnjs.cloudflare.com/ajax/libs/html2pdf.js/0.10.1/html2pdf.bundle.min.js"></script>

<style>
body { font-family: Arial; margin: 0; padding: 0; }
#content {
  padding: 20px;
  overflow: visible;
  height: auto;
}
img {
  max-width: 100%;
}
button {
  margin: 20px;
  padding: 10px;
}
</style>
</head>

<body>

<div id="content">
  <h2>PDF Example</h2>
  <p>This content will be exported to PDF using html2pdf.</p>
  <img src="https://avatars.githubusercontent.com/u/30081152?s=280&v=4">
</div>

<button onclick="downloadPDF()">Download PDF</button>

<script>
function downloadPDF() {
  const element = document.getElementById("content");

  html2pdf().set({
    margin: 10,
    filename: "document.pdf",
    image: { type: "jpeg", quality: 1 },
    html2canvas: {
      scale: 2,
      useCORS: true,
      scrollY: 0,
      windowWidth: document.body.scrollWidth,
      windowHeight: document.body.scrollHeight
    },
    jsPDF: {
      unit: "mm",
      format: "a4",
      orientation: "portrait"
    }
  }).from(element).save();
}
</script>

</body>
</html>

_kids_jollytv · June 16, 2026, 2:58am

Thank you for your response.

Unfortunately, the HTML code is not working on my device. I tested it in Kodular WebViewer, but the PDF is not being generated/downloaded correctly.

Could you please share the AIA project file as well? It would help me understand the complete setup, including the WebViewer configuration, required permissions, assets, and blocks used in the project.

If possible, please also share screenshots of the blocks.

Thank you for your help.

RaYzZz · June 16, 2026, 10:21am

Hi,

You need to use the CustomWebView extension.

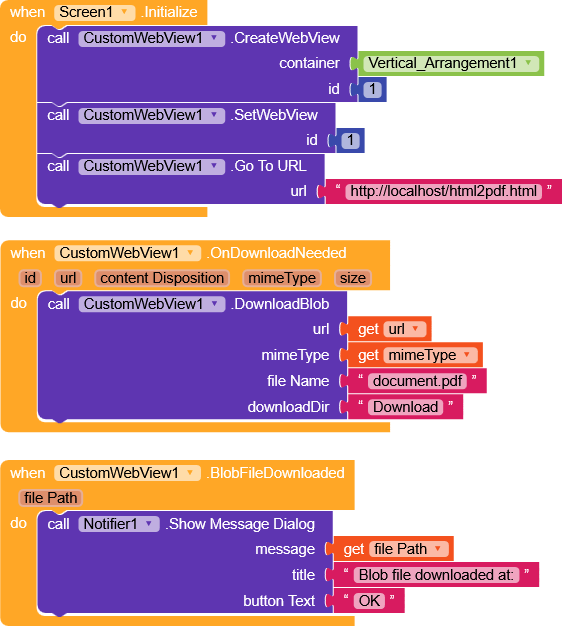

Here is the AIA project.

html2pdf.aia (284.2 KB)

_kids_jollytv · June 16, 2026, 10:57am

html2pdf (1).aia (284.8 KB)
this file you please set the aia file

eAcademy_tech1 · June 16, 2026, 12:13pm

You can test my extension for saving your pdf files-[Paid $3] 🔥 File Downloader & File Saver Extension | Downloads OR Saves Any File To Device's Shared Storage i.e.'Download' Folder| Auto Permissions Handling - Extensions - MIT App Inventor Community

Gaston · June 16, 2026, 12:27pm

Really? Do you need anything else? Dude, you’ve got the extension and an example. The next step is up to you.
search > investigate > read > try and search again.

RaYzZz · June 16, 2026, 1:50pm

This should work, but only by adding one file at a time.
It would be great to implement multi-selection as well.

html2pdfv2.aia (306.0 KB)

html pdf-lib

<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>PDF Merge Pro</title>

<script src="https://cdnjs.cloudflare.com/ajax/libs/pdf-lib/1.17.1/pdf-lib.min.js"></script>

<style>
body {
    font-family: Arial, sans-serif;
    margin: 0;
    background: linear-gradient(135deg, #6a11cb, #2575fc);
    color: #fff;
}
.container {
    max-width: 900px;
    margin: 20px auto;
    padding: 20px;
}
.card {
    background: rgba(255, 255, 255, 0.15);
    backdrop-filter: blur(10px);
    border-radius: 20px;
    padding: 20px;
    box-shadow: 0 8px 25px rgba(0,0,0,.25);
}
h1 { text-align: center; }
input, button {
    width: 100%;
    padding: 14px;
    margin: 8px 0;
    border: none;
    border-radius: 12px;
    box-sizing: border-box;
}
button {
    background: #ff9800;
    color: white;
    font-size: 18px;
    font-weight: bold;
    cursor: pointer;
    transition: background 0.2s;
}
button:hover { background: #e68a00; }
.btn-clear { background: #f44336; margin-top: 5px; }
.btn-clear:hover { background: #d32f2f; }
#fileList {
    margin-top: 15px;
    background: rgba(255, 255, 255, 0.2);
    padding: 10px;
    border-radius: 12px;
    min-height: 50px;
}
.item {
    padding: 8px;
    margin: 5px 0;
    background: rgba(255, 255, 255, 0.2);
    border-radius: 10px;
    font-size: 14px;
    word-break: break-all;
}
.status {
    margin-top: 10px;
    font-weight: bold;
    text-align: center;
}
</style>
</head>
<body>

<div class="container">
    <div class="card">
        <h1>PDF Merge</h1>
        <input type="file" id="pdfFiles" accept="application/pdf" multiple>
        <div id="fileList">No file selected</div>
        <button onclick="mergePDFs()">Merge PDFs</button>
        <button class="btn-clear" onclick="clearList()">Clear List</button>
        <div class="status" id="status"></div>
    </div>
</div>

<script>
const pdfInput = document.getElementById("pdfFiles");
const fileList = document.getElementById("fileList");
const statusDiv = document.getElementById("status");

let uploadedFiles = [];

pdfInput.addEventListener("change", () => {
    const files = pdfInput.files;
    if (files.length === 0) return;

    for (let i = 0; i < files.length; i++) {
        if (files[i].type === "application/pdf" || files[i].name.toLowerCase().endsWith('.pdf')) {
            uploadedFiles.push(files[i]);
        }
    }
    renderFileList();
    pdfInput.value = "";
});

function renderFileList() {
    if (uploadedFiles.length === 0) {
        fileList.innerHTML = "No file selected";
        return;
    }
    fileList.innerHTML = "";
    uploadedFiles.forEach((file, i) => {
        const div = document.createElement("div");
        div.className = "item";
        div.innerText = (i + 1) + ". " + file.name;
        fileList.appendChild(div);
    });
}

function clearList() {
    uploadedFiles = [];
    renderFileList();
    statusDiv.innerText = "List cleared.";
}

async function mergePDFs() {
    if (uploadedFiles.length < 2) {
        alert("Select at least 2 PDF files");
        return;
    }

    statusDiv.innerText = "Merging...";

    try {
        const mergedPdf = await PDFLib.PDFDocument.create();

        for (const file of uploadedFiles) {
            const bytes = await file.arrayBuffer();
            const pdf = await PDFLib.PDFDocument.load(bytes);
            const pages = await mergedPdf.copyPages(pdf, pdf.getPageIndices());
            pages.forEach(p => mergedPdf.addPage(p));
        }

        const mergedBytes = await mergedPdf.save();

        if (!mergedBytes || mergedBytes.length === 0) {
            throw new Error("Error generating the PDF.");
        }

        const blob = new Blob([mergedBytes], { type: "application/pdf" });
        const blobUrl = URL.createObjectURL(blob);

        const a = document.createElement("a");
        a.href = blobUrl;
        a.download = "Merged_PDF.pdf";
        a.style.display = 'none';
        document.body.appendChild(a);

        a.click();

        setTimeout(() => {
            document.body.removeChild(a);
            URL.revokeObjectURL(blobUrl);
        }, 200);

        statusDiv.innerText = "PDFs merged successfully!";

    } catch (error) {
        console.error(error);
        statusDiv.innerText = "Error during merge.";
        alert("An error occurred: " + error.message);
    }
}
</script>

</body>
</html>

vknow360 · June 16, 2026, 2:40pm

You should avoid spoon feeding.

I have seen more people ask for ready made solutions or fixing aia files, rather than trying something on their own. This has increased a lot in recent times, probably due to AI.

RaYzZz · June 16, 2026, 4:30pm

You’re absolutely right, Sunny…

But when I see a problem I could learn something from, I start experimenting, and then when I end up with a working project, it feels like a shame not to make it public

Well, it definitely helps with research, so if used the right way, it’s not a bad thing
