I’m sharing my extension, which draws a circular progress with some unique properties. building progress has no effect (does not erase or close the contents of loyout), which allows you to use it without additional overlay. It is possible to use additional progress drawing to reflect additional information.

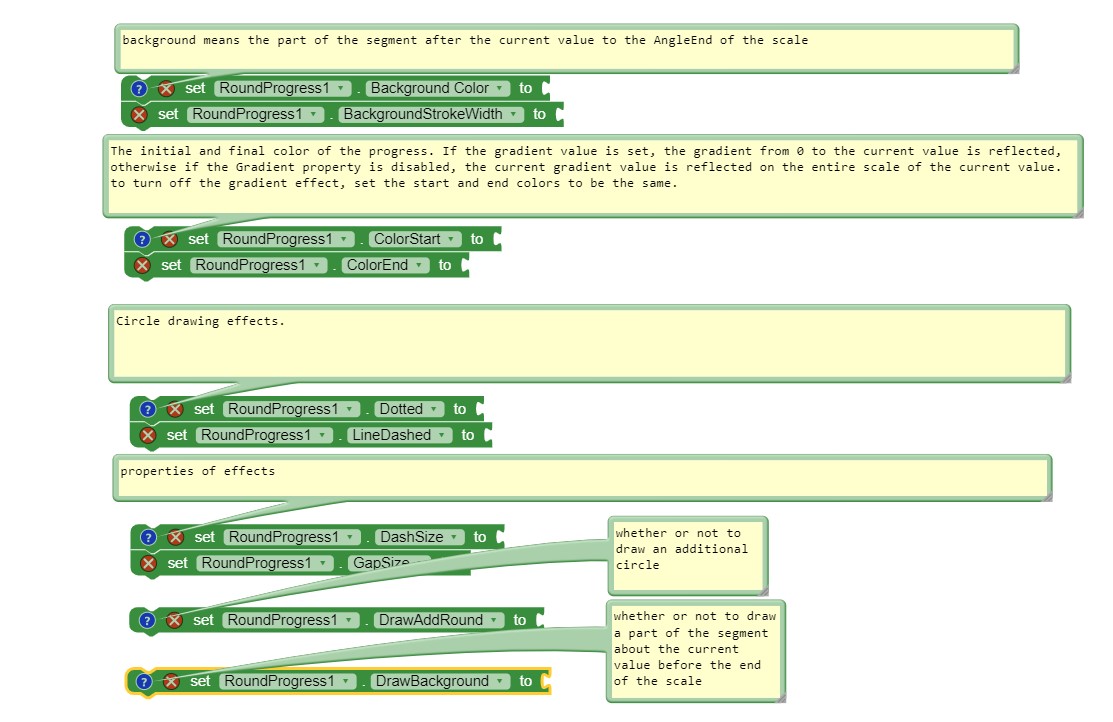

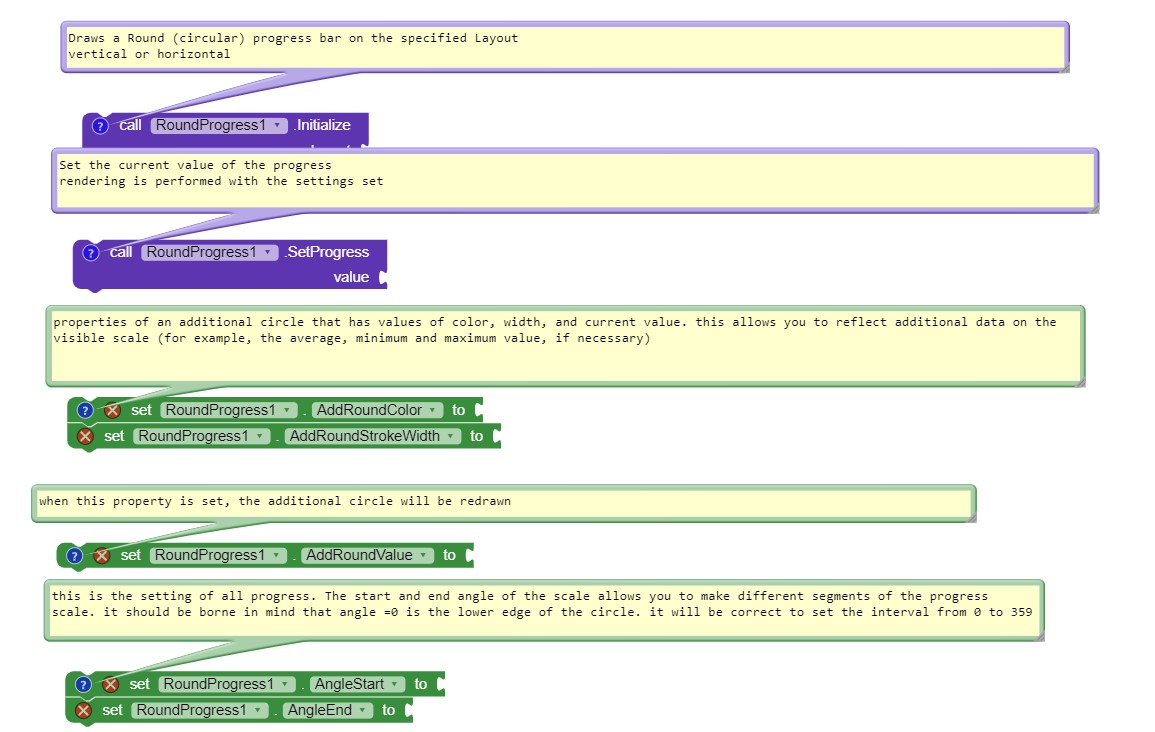

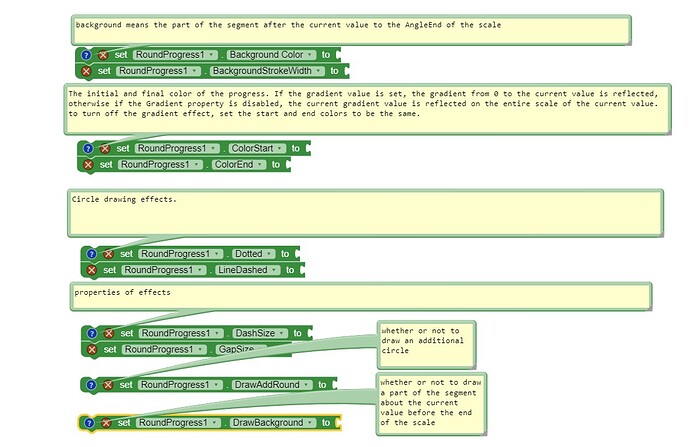

brief description of the blocks:
version1:RoundProgress.aix (12.5 KB)
version2:RoundProgress.aix (14.0 KB)
![Screenshot_3-newblock](https://kodular-community.s3.dualstack.eu-west-1.amazonaws.com/original/4X/6/f/6/6f6f7d9f144483773be1e9aef2402803d3db5b4f.jpeg)

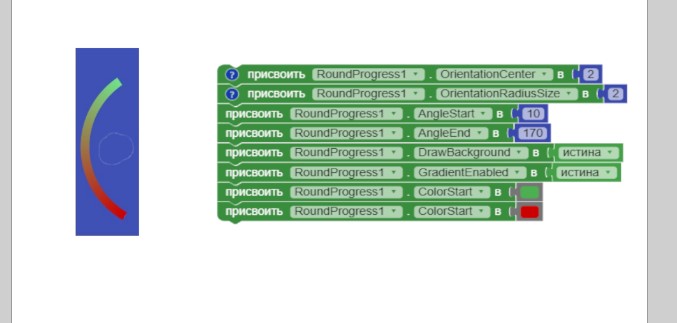

example:
![Screenshot_4](https://kodular-community.s3.dualstack.eu-west-1.amazonaws.com/original/4X/6/c/a/6ca0fa2cd75ed4c5c7bb1b84d968aa1e255c6a64.jpeg)
