How to generate DynamicComponents inside RecyclerList views

[RaYzZz (Gianluca Franco)]

Hi everyone

Today I want to share with you an interesting discovery I recently made, which could open the door to a lot of ideas.

The core idea is to dynamically generate components with DynamicComponents inside a RecyclerList.

Don’t run away! It might actually make more sense than you think!
Look at the potential

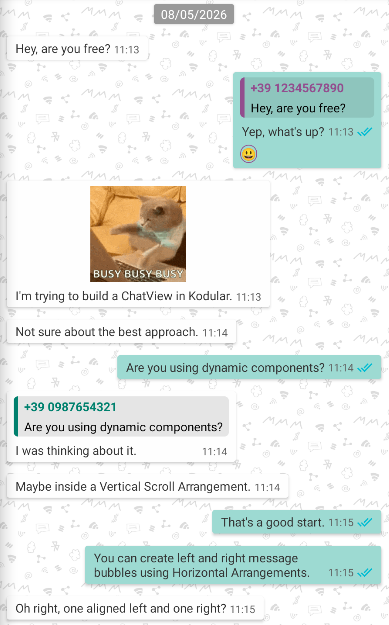

• The first image is a ChatView entirely built with RecyclerList + DynamicComponents, and it’s 100% customizable.

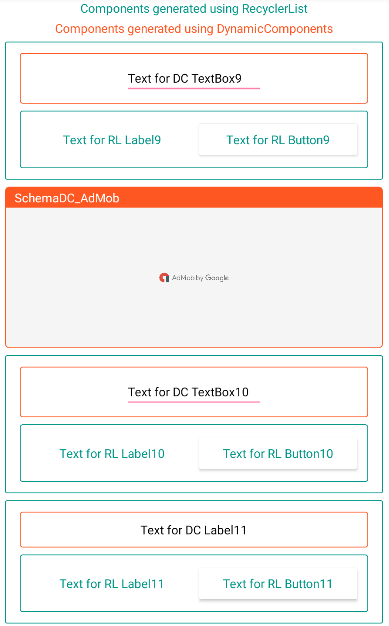

• The second image shows how to display ads while scrolling.

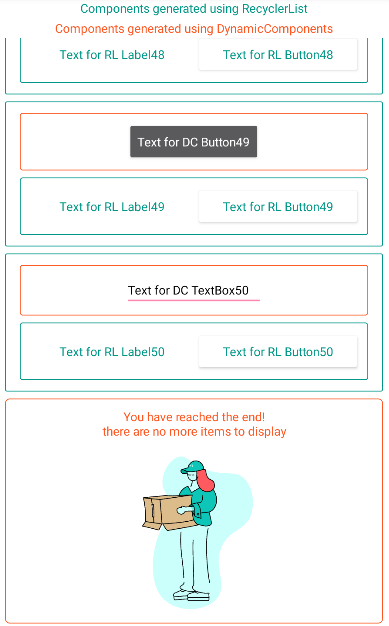

• The third image shows how to add a layout at the end of a RecyclerList to indicate the end of the list.
  Lottie by Ahmed Khaled

---

How RecyclerView works (by Gemini AI)

The RecyclerView (often colloquially referred to as recyclerList by Android developers) is one of the most crucial components for displaying lists of data in an application.

Its main strength is efficiency: unlike older systems (such as ListView), it doesn’t create a visual view (a list row) for every single item in your dataset. If you have 10,000 products to display, creating 10,000 views would instantly crash the phone’s memory.

Here is how it handles massive lists while consuming minimal memory:

---

The Secret: Recycling

The RecyclerView creates only the exact number of views needed to fill the screen, plus a couple of extra ones at the top and bottom for safety.

When the user scrolls the list (let’s say, downwards):

1. The Exit: The item at the top leaves the screen. Instead of being destroyed, it is placed into a “recycling bin” (called the Scrap Heap).
2. The Entry: A new item is about to enter from the bottom. Instead of creating a new view from scratch, the RecyclerView grabs an old view from the recycling bin, “pastes” the new data onto it, and displays it at the bottom.

Thanks to this process, the phone’s memory only ever handles about a dozen views at a time, even if your list is theoretically infinite.

---

The 3 Key Components

To make this mechanism work, the RecyclerView relies on three elements working together:

Component	Main Role	Metaphor
ViewHolder	Holds the visual references (text views, image views). It prevents the system from constantly having to perform expensive lookups to find UI elements.	The empty “shell” or template of the row.
Adapter	The actual director. It takes raw data (e.g., a list of names) and “binds” it inside the ViewHolders when needed.	The worker who fills the shell with the correct data.
LayoutManager	Decides how to position the items (vertically, horizontally, or in a grid).	The architect who decides the layout structure.

---

The Workflow in a Nutshell

When the screen needs to display a row:

It asks the Adapter: “Hey, I need row number 5.”
The Adapter checks if there is a ViewHolder available to recycle. If there is, it takes that used shell, overwrites it with the data for row 5 (onBindViewHolder), and hands it to the LayoutManager, which positions it on the screen.

---

Index

1. Creating DCs inside RL views

2. Tracking created DCs

3. Removing DCs to prevent duplicates

4. Managing events of DCs

5. Tracking created Schemas

6. AIA

7. Creations

---

Creating DCs inside RL views

This step is quite straightforward.
By using CreateComponent inside RL.GetComponent(root, tag), the DC will be created without any issues.

---

Tracking created DCs

Every DCs must be removed when their root is recycled otherwise, they would be carried over to the next bind, repeating themselves and causing errors.

For this reason, I created a roots variable, a dictionary structured as follows:

{
  "rootReference1": {
    "components": [
      "Button1_rootReference1",
      "Label1_rootReference1",
      "Image1_rootReference1"
    ],
    "key": "a1046104-27aa-4d9b-8ba1-936f346644a3"
  },
  "rootReference2": {
    "components": [
      "CheckBox_rootReference2"
    ],
    "key": "d2e846cf-bf70-4a58-8861-438d477f8053"
  }
}

Explanation of each field

• rootReference (text) represents the reference name of the root component (Vertical Arrangement)



• components is a list containing all dynamic component IDs
  These are the IDs that would be assigned in this field:




• key To clarify, RecyclerList.Data is managed by passing it the keys of RecyclerListData, a dictionary structured as follows:

{
  "a04ab4b4-ca2b-4c33-ac17-22fa40e04e59": {
    "position": 1,
    "componentCode": 1073741823,
    "textColor": 4292851220,
    "dynamicComponentName": "Radiobutton"
  },
  "dc3f58a6-c7e7-470c-b093-6571939bf64f": {
    "position": 2,
    "componentCode": 1073741823,
    "textColor": 4291031633,
    "dynamicComponentName": "DatePicker"
  }
}

This structure is used as sample data to populate the RecyclerList.
Therefore, the keys of this dictionary are passed to RecyclerList.Data:

(a04ab4b4-... dc3f58a6-... ...)

The key values are stored in roots so they can later be used in events such as .OnClick.

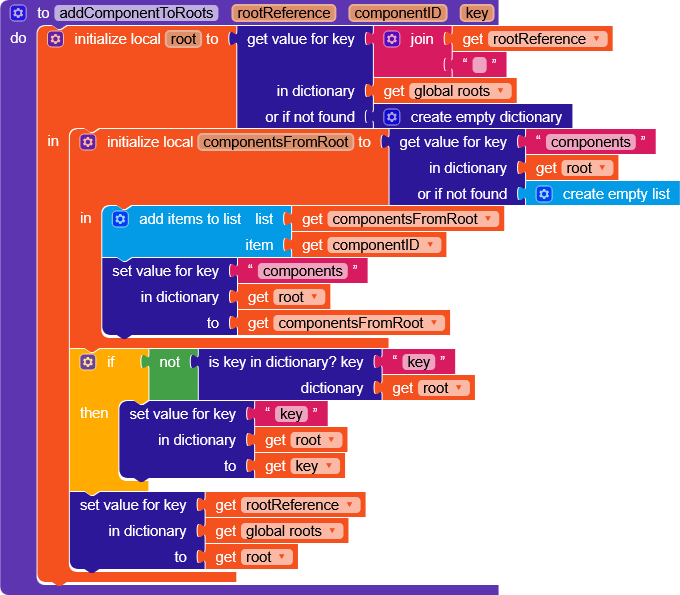

The dictionary is populated through a procedure called addComponentToRoots

This function takes rootReference, key, and componentID as inputs and adds to roots.

componentID is what gets inserted into the components list described in the “Explanation of each field” section

---

Removing DCs to prevent duplicates

This part is arguably even simpler than the first, as it is fully automated.

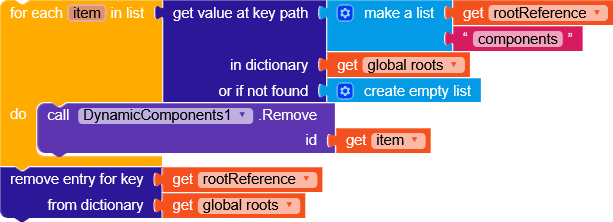

On every .OnBindView event, the view is cleared of DCs by iterating over the components list at rootReference -> components and removing each item using DC.Remove.

Finally, the entry associated with rootReference is deleted from roots.

---

Managing events of DCs

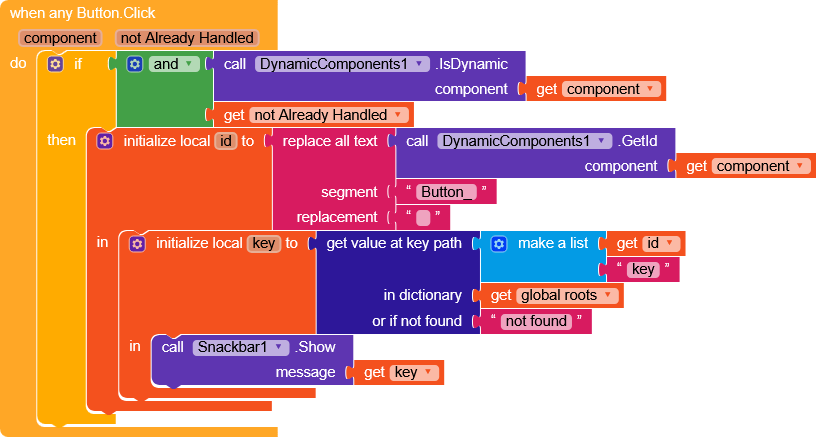

The process is practically identical to how we would normally handle it, except that to obtain the RecyclerListData key associated with the button, we need to retrieve it from roots, and it is done like this.

---

Tracking created Schemas

From the previous discovery to this one, the step is really short.

There is only one problem, for a single component it’s easy to store its componentID, but for all the components of a schema, how do you store them in roots?
Do I use addComponentToRoots for every single ID?

Absolutely not!

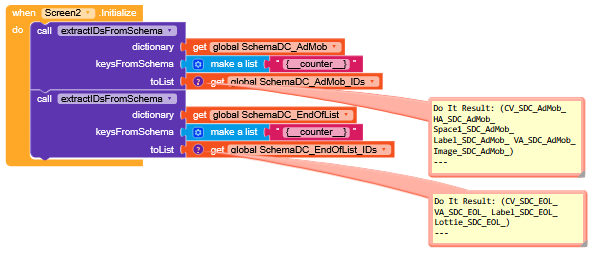

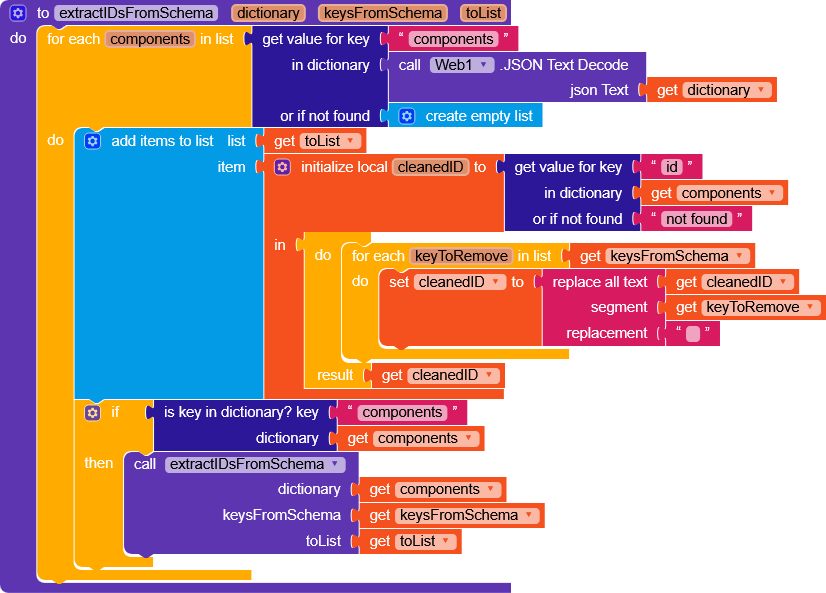

Here is a function that iterates through the schema and retrieves all component IDs by replacing with an empty string all the keys specified in keysFromSchema, turning something like Button1_{__counter__} into Button1_, and then stores them in a list specified in toList.

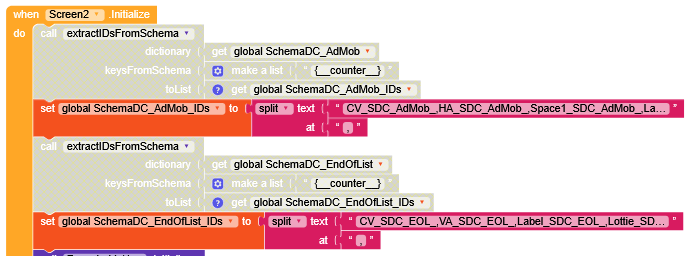

It could also be handled this way later on, although I don’t think the procedure has much impact, but you never know.

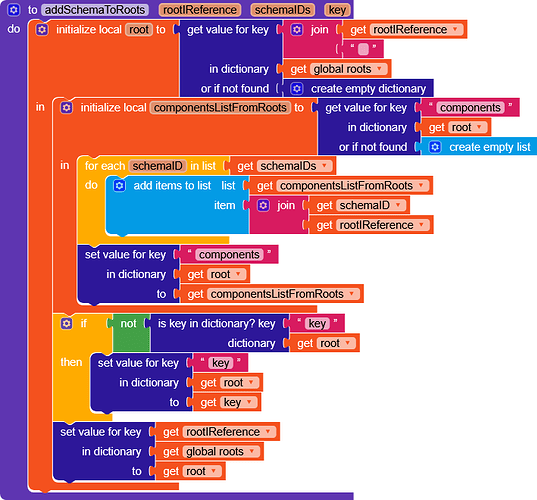

After that, I transformed addComponentToRoots into addSchemaToRoots

and we brought home this functionality as well !

---

AIA

Below is an AIA project split into 3 screens.

• Screen1

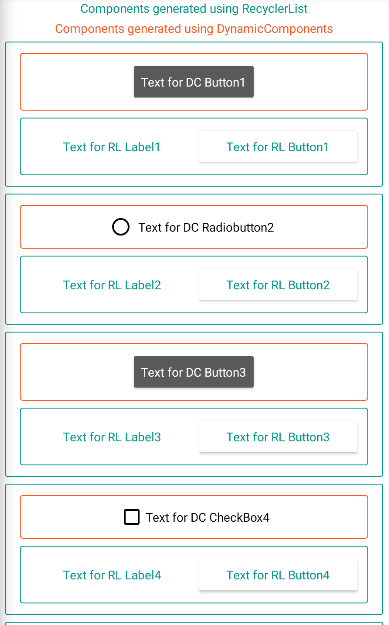

  generates random dynamic components in all RL views.

• Screen2




  generates an AdMob schema every 9 RL views and an EndOfList schema at the end of the list.

• Screen3




  combines all configurations and is mainly used to show how it behaves with a large number of elements.

It’s also important to consider that overly complex schemas should be avoided if you want to prevent laggy performance on lower-end devices.

DCinRL.aia (209.3 KB)

---

Creations

• Sticky headers
  How to implement Sticky Headers in a RecyclerList


---

---

---

As always, I remain available for any clarification.

Happy oding
