How to make custom Table View? [GUIDE]

If you want to create your own table view, you can create it using the WebViewTools Extension which you can download here:

🚀WebViewTools - Enhancing WebView Functionality with WebViewTools Extension 🚀 [FREE] - #9

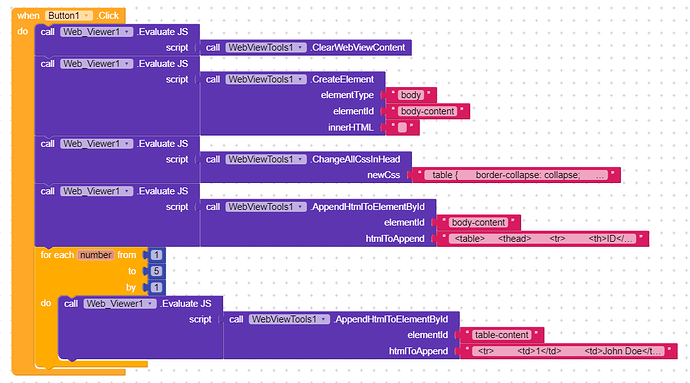

the only component required is the Web Viewer, and this is an example block:

I will explain each block

The main block in Web_Viewer is Evaluate Js

Step 1

use the ClearWebViewContent block to clear all the contents of the web page

blocks (17)

Step 2

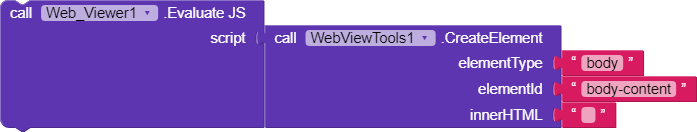

add the body element with the CreateElement block and for the Id you can change it as you like

Step 3

add css to the page using the ChangeAllCssInHead block
and this is my css example

    /* Style the table */
    table {
      border-collapse: collapse;
      width: 100%;
      margin-top: 20px;
    }

    th, td {
      border: 1px solid #ddd;
      padding: 8px;
      text-align: left;
    }

    th {
      background-color: #f2f2f2;
    }

Step 4

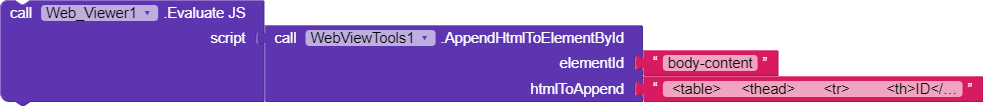

add an html element to the body with the ID that we set previously using the AppendHtmlToElementById block

and this is an example of my element

 <table>
    <thead>
      <tr>
        <th>ID</th>
        <th>Nama</th>
        <th>Email</th>
      </tr>
    </thead>
    <tbody id="table-content">

    </tbody>
  </table>

Step 5

add an html element to the table with the table ID that we set in the previous html

In this example I use “table-content” as the ID, then use the same block as before to insert HTML into the Element using the AppendHtmlToElementById block

and this is my html example

  <tr>
         <td>1</td>
         <td>John Doe</td>
         <td>[email protected]</td>
  </tr>

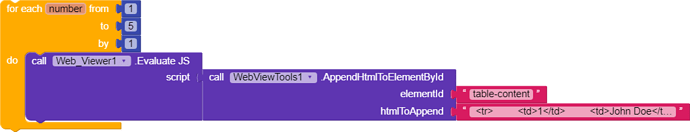

and use a for each block for repetition to add more content to the table

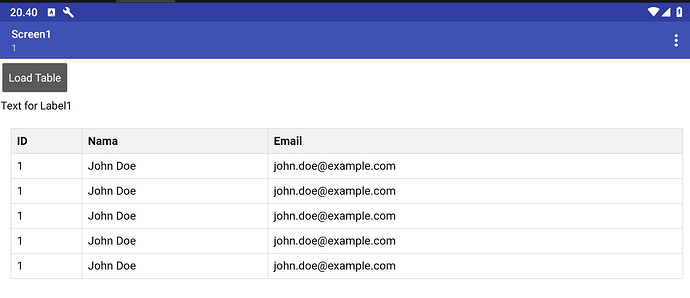

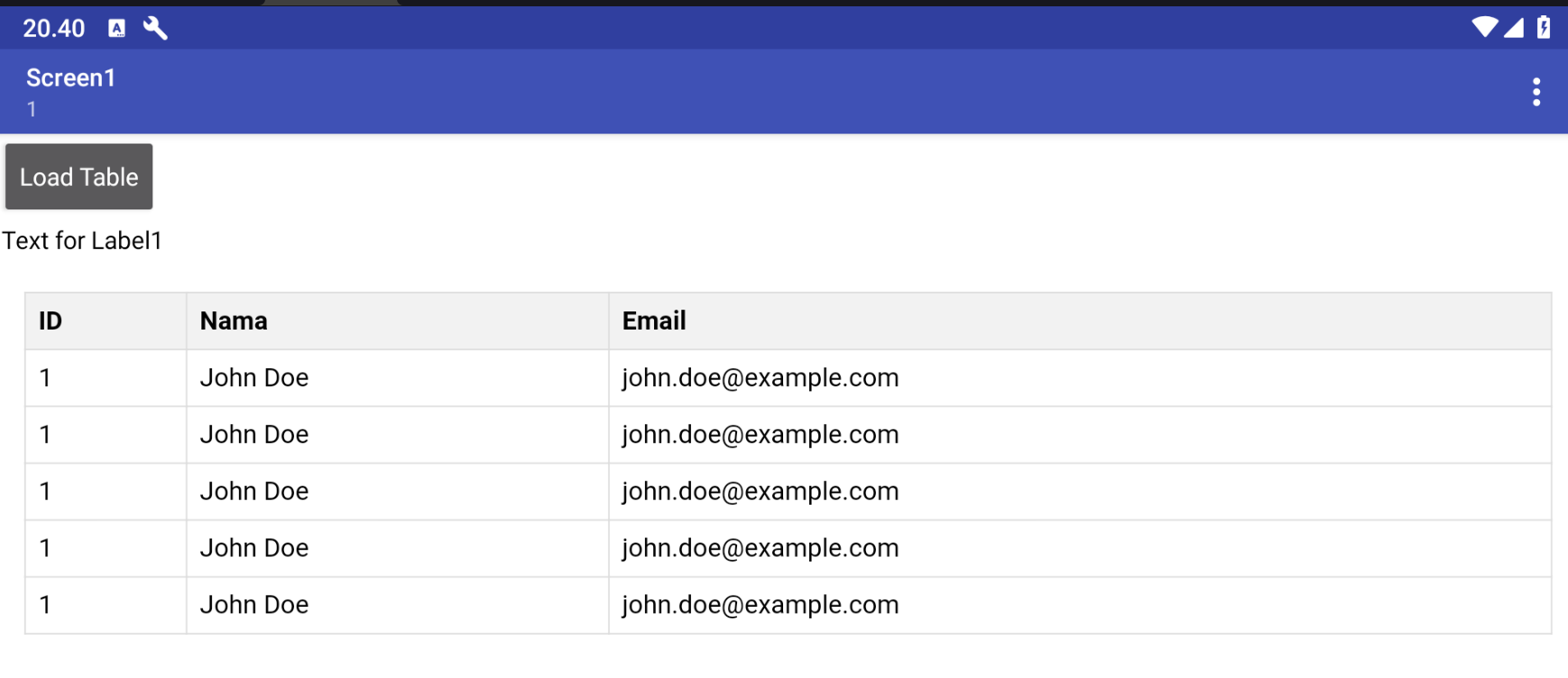

View Result

Thank you for reading this short guide!

10 Likes

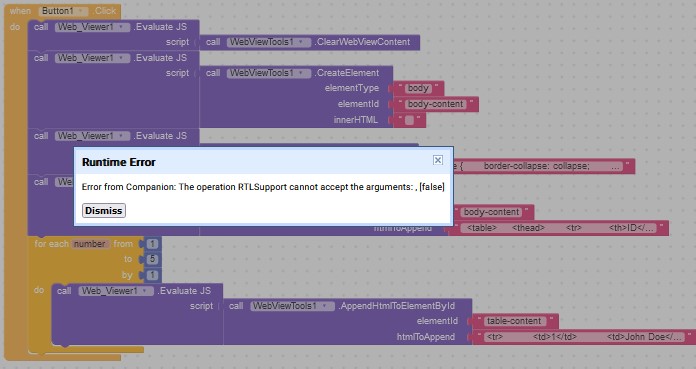

please help me

It’s your project that’s having problems, not this extension

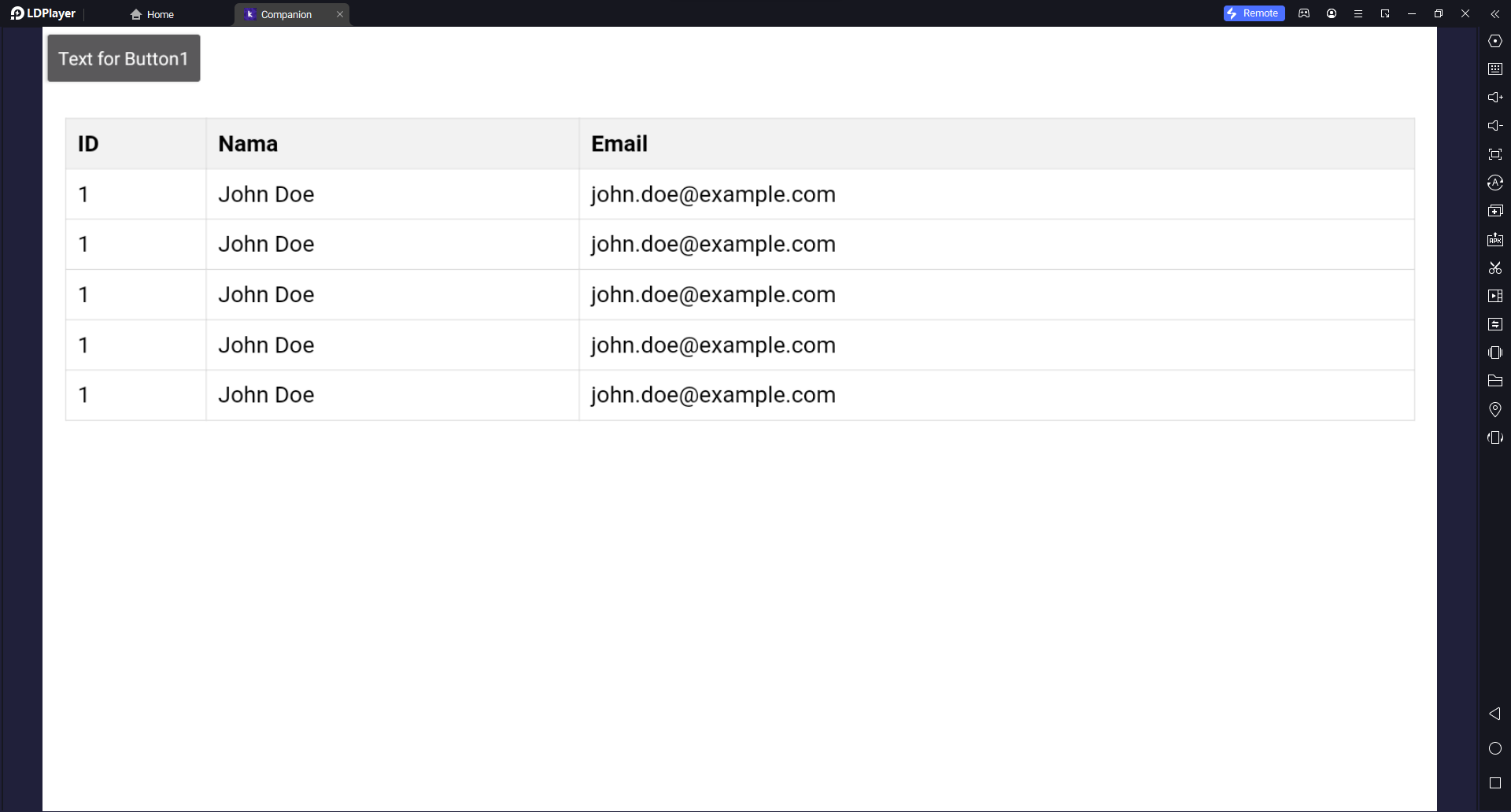

I did a project like yours and this was the result

htmltable.aia (18.2 KB)

Working Without Error


please check this
htmltable (1).aia (18.2 KB)

Thank you so mach :star_struck:

1 Like

@rasi_tech how to add “text-align:justify” in text. Pls guide

Use a web browser

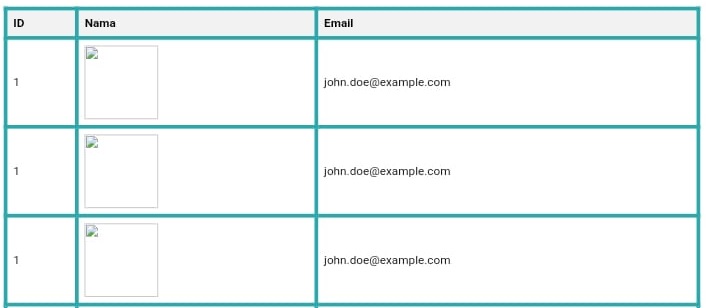

I tried to put the picture but it didn’t appear
<img src="file:///android_asset/user.png" width="100" height="100">

use base64

can you helpe me to make print buttnon?
