How to send a Post request?

Good morning everyone;
I have a program written in c (Arduino) with which I read the data of my photovoltaic system, through the following POST request:
http.begin(client, “http://” + IPaddress + “/lala.cgi/”); //HTTP
http.addHeader(“Content-Type”, “application/json”);

can i have your help?, i can’t do it with kodular, at most i can get only a simple {“ENERGY”:
thanks to anyone who can help me

…with the help of curl-to-blocks

you wrote that program yourself, but why so complicated?
can’t you use a GET request and just tell the program “give me the data”?

what is the response content in your case?


Hello and thanks for the reply
get request doesn’t work on my inverter
the data I should receive (done with POSTMAN) are:
“GUI_INVERTER_POWER”: “fl_4356E001”,
“GUI_HOUSE_POW”: “fl_43BFD6E4”,
“GUI_BAT_DATA_POWER”: “fl_C31546E3”,
“GUI_GRID_POW”: “fl_C26C47AE”,

in BODY: {“ENERGY”: {}}

this is the link where I got my inspiration: Query the hidden API of your SENEC photovoltaic appliances

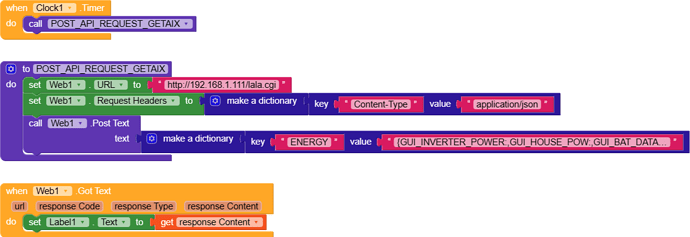

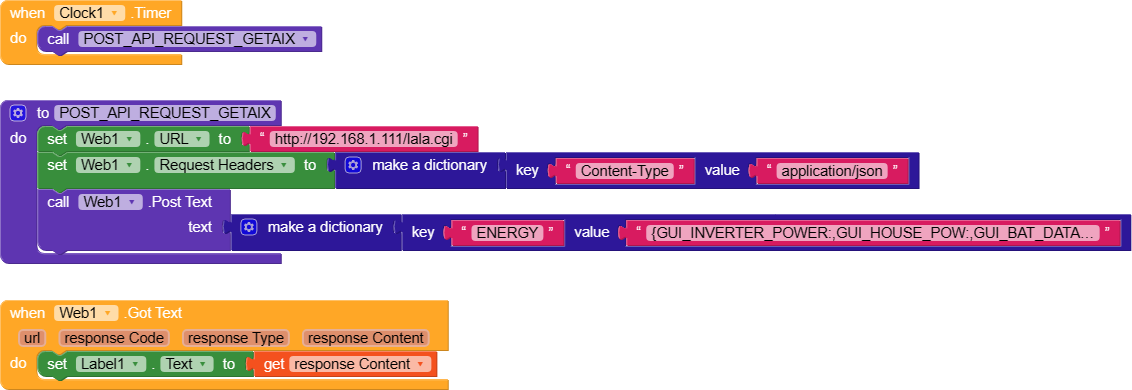

Web1.RequestHeaders => make a list:

You can simply add this block and it should work I guess:


unfortunately it doesn’t work
the result on Label1 is: {“ENERGY”:

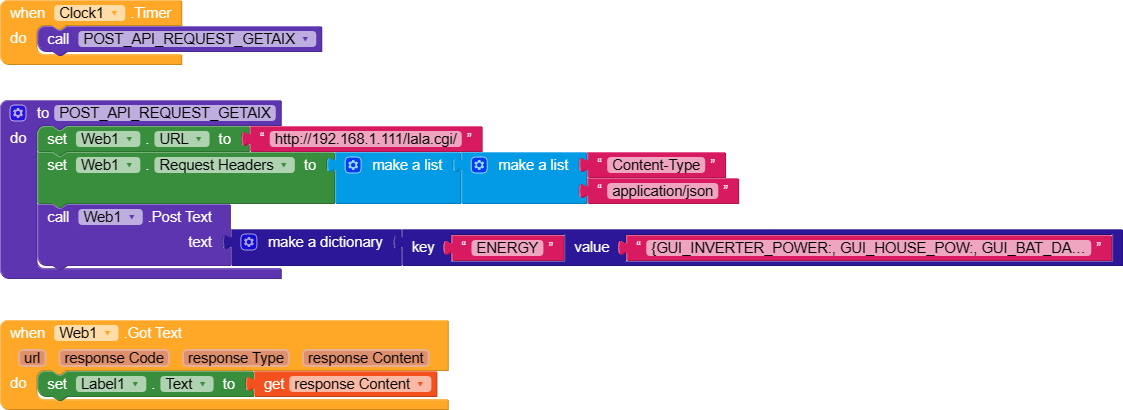

you can use a list of lists or a alternatively as @Amidonu is using it a dictionary to define a request header

you also can try to put the complete string as it is
into a text block and the text block as text into the PostText method


Thank you very much

please provide a screenshot of the working solution then

certainly, I create a structure and send you screenshots

1 Like

I’m still here asking for help

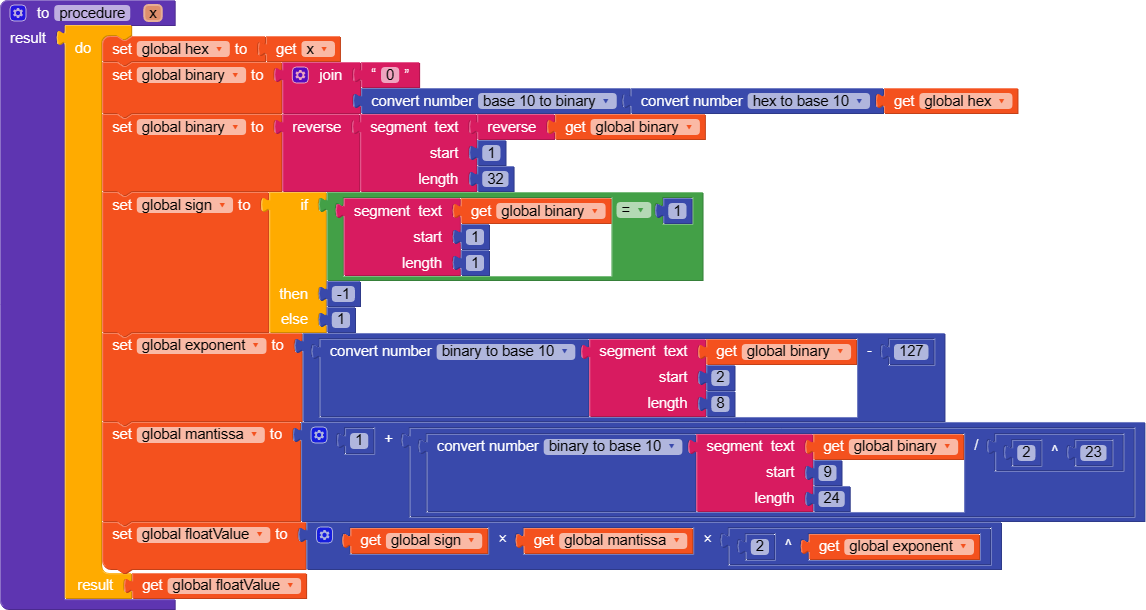

the data imported with the POST request are in hexadecimal format (8 bytes) and I should transform them into FLOAT or INT to display them
example: hex 450B9AB0 = float 2233.67
can you help me?

Maybe this discussion can help

You can also try

Or do another search in the community…


solved with the help of Profile - Juan_Antonio - MIT App Inventor Community
I hope it can be useful to anyone

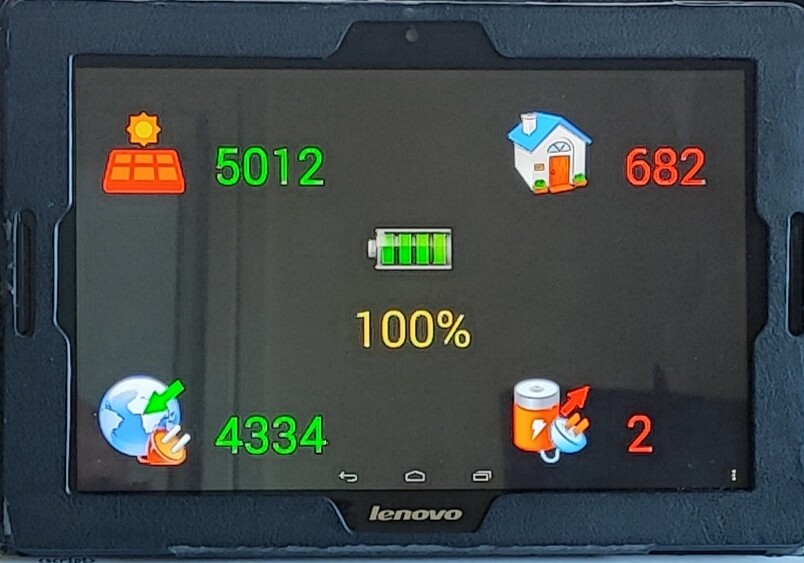

after some adjustments, this is the final result.
Thanks again for the help
