Location sensor and maps loading

Discuss
1

In my app i am making a route tracker on the base of location sensor which take GPS coordinates and kodular Map (not google) to show the track of the individual. i am facing below issues. request if someone can guide.

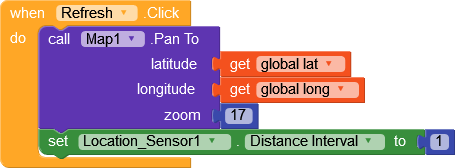

  1. I am displaying map and when i am getting coordinates from “location changed” sensor in a label then i am pressing “refresh” button to get it to the map of the own location. I need to press refresh at least 2 to 3 times to come to my location. I want to develop in a simple manner the movement the app is open we can have a progress bar till the time GPS is locking and the movement it is done it should show the map. what logic i should use.

  2. Second the movement the display is off. GPS stop locking and i have to press something on the screen to open display and GPS start locking again. I need in simple manner that app should be on all times and GPS should lock and if the user put off the display manually then also GPS should lock.

i am attaching the photos of block and aia file along
thanks in anticipation

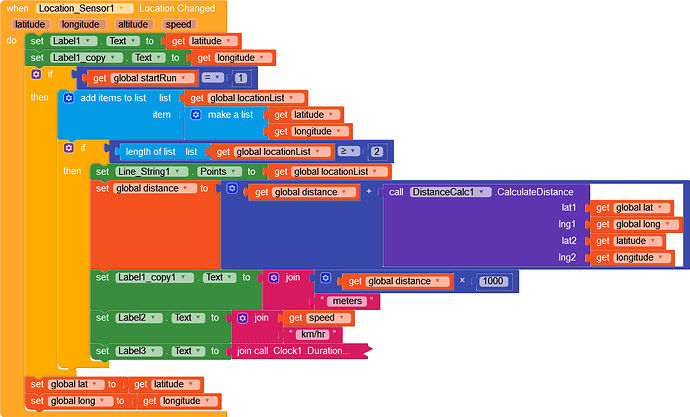

blocks(40)
blocks(40)1078×653 59.8 KB

blocks(41)
blocks(41)455×168 8.97 KB

blocks(42)
blocks(42)564×363 25.9 KB

try23(2).aia (51.2 KB)

2

no answer till now

3

Try this and see if it works for you

try23_1.aia (52.0 KB)

4

Hi friends, in this case how would I save this data to view it later?

5

After retrieve the data, we save it to tinyDB (TagstoredItems (or anything))

blocks(161)

Later we retrieve the data using the tiyDB using our (TagstoredItems (or anything))

blocks(162)
blocks(162)627×119 9.83 KB

Then we’ll verify if our data variable isn’t empty
blocks(163)
Then we’ll call our main blocks to execute the function.

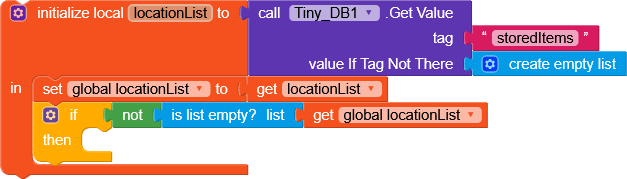

A block-based code snippet that initializes a local variable 'locationList' by retrieving 'storedItems' from a Tiny_DB1 database, sets a global variable 'locationList' to this value, and checks if this global list is not empty. (Captioned by AI)
A block-based code snippet that initializes a local variable 'locationList' by retrieving 'storedItems' from a Tiny_DB1 database, sets a global variable 'locationList' to this value, and checks if this global list is not empty. (Captioned by AI)627×179 13.9 KB

Don’t know if i explained well :smiling_face:

6

Okay

But with this, can I show on the map where the route was, retrieving the data as you showed?

7

Yes, you have to repeat the same process as the first time of showing it. BTW, is maps component working? Kodular Bugs Tracker

8

Oops

This isn’t working.

:angry:

1 Like
