[PAID] DigitalInk: Handwritten text recognizer and Gesture classifier ($10 or INR 701)

DigitalInk Extension

With DigitalInk recognition extension, you can recognize handwritten text and classify gestures on a digital surface (Canvas) in hundreds of languages, as well as classify sketches. The digital ink recognition uses the same technology that powers handwriting recognition in Gboard, Google Translate, and the Quick, Draw! game.

1. Overview

LatestVersion: 1
Released: 2024-04-17T18:30:00Z
Last Updated: 2024-04-17T18:30:00Z
Min SDK: 21
Permissions: ACCESS_NETWORK_STATE

Aix Size: 4.7mb (main extension) + 2.7mb (Kotlin library)

Key Features:

  • Converts handwritten text to sequences of unicode characters
  • Runs on the device in near real time
  • The user’s handwriting stays on the device, recognition is performed without any network connection
  • Supports 300+ languages and 25+ writing systems, see the complete list of supported languages
  • Recognizes emojis and basic shapes
  • Keeps on-device storage low by dynamically downloading language packs as needed

2. Blocks

3. Documentation

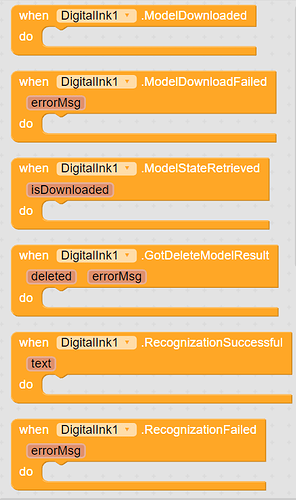

Events

ModelDownloaded Event raised when model is downloaded successfully
ModelDownloadFailed Event raised when model downloading fails
errorMsg | text
ModelStateRetrieved Event raised after retrieving model state
isDownloaded | boolean
GotDeleteModelResult Event raised after getting 'DeleteModel' method's result. 'errorMsg' is empty if model was deleted successfully.
deleted | boolean
errorMsg | text
RecognizationSuccessful Event raised when recognition was successful
text | text
RecognizationFailed Event raised when recognition failed
errorMsg | text

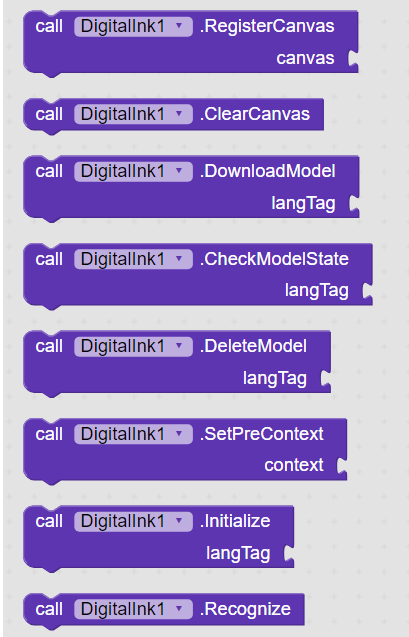

Methods

RegisterCanvas Register Canvas component from which handwritten text will be recognized
canvas | component
ClearCanvas Clear Canvas drawing. You must use this method instead of Clear method of Canvas component.
DownloadModel Download specified language model
langTag | text
CheckModelState Checks whether model for specified language has been downloaded or not
langTag | text
DeleteModel Remove specified model from device.
langTag | text
SetPreContext Recognizer will use this pre-context to identify work breaks and differentiate between ambiguous letter
context | text
Initialize Initialize Recognizer for specified language
langTag | text
Recognize Process Canvas text for recognition

4. Example Usage

First register canvas component

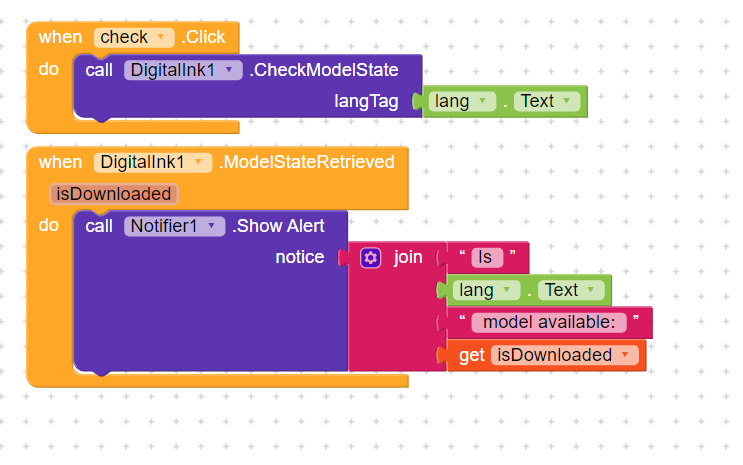

Check language model state

You can list of languages and gestures tag here: Base models  |  ML Kit  |  Google for Developers

If model doesn’t exist then we’ll download it otherwise if it exists then we are good to go.

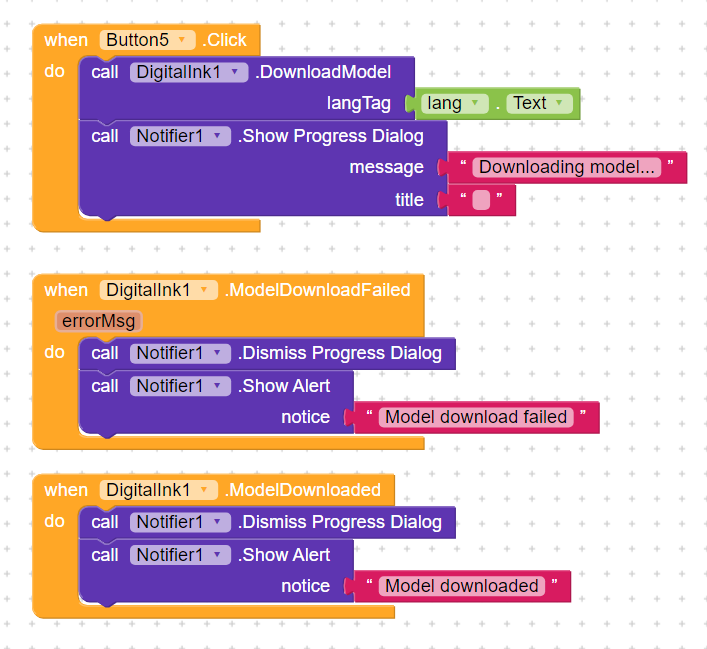

Download Model if not exists

each language model is of ~20mb

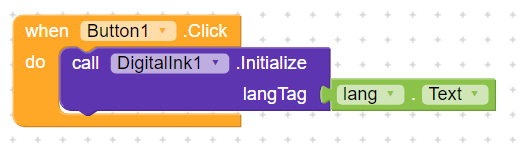

If model was downloaded successfully then we can initialize Recognizer

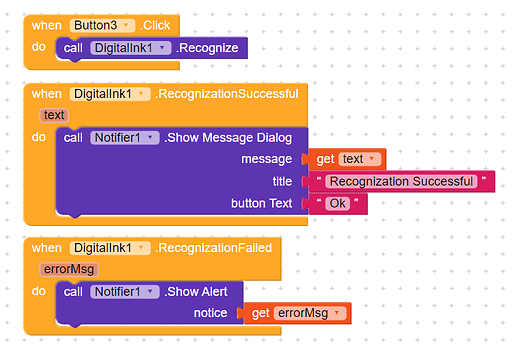

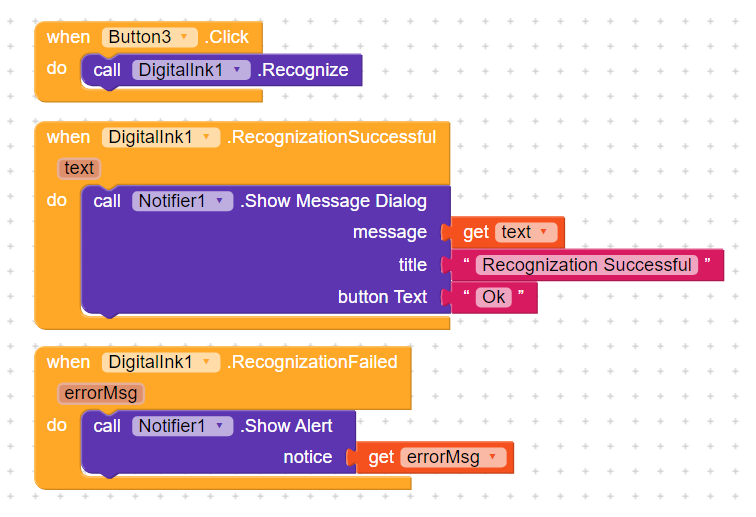

Now we can start recognition process

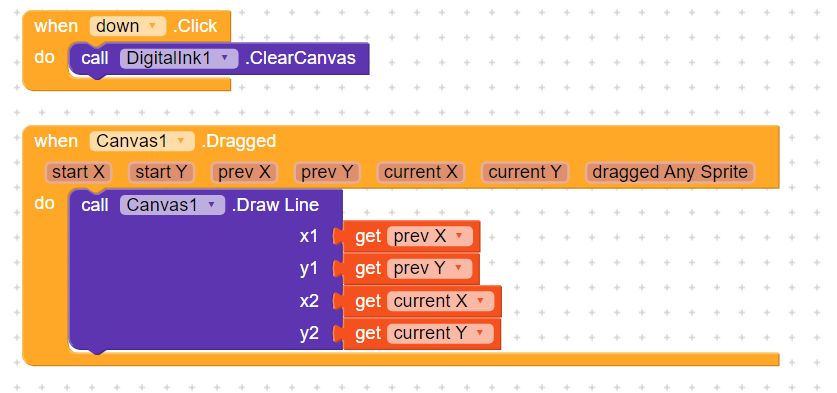

Draw and Clear canvas when needed

You must use ClearCanvas block of extension

Delete Language Model when not needed further

5. Samples and Demos

Gesture Example

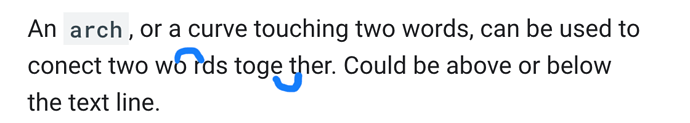

arch:above
arch:below

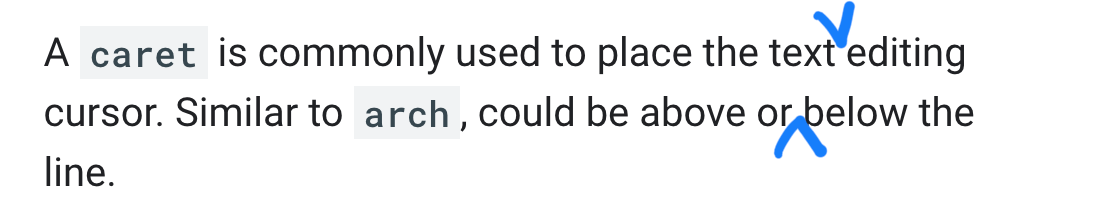

caret:above
caret:below

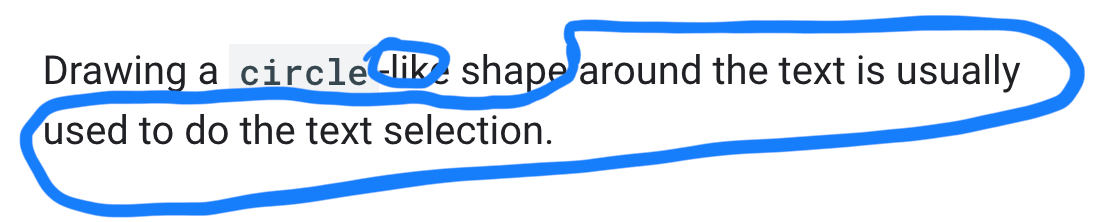

circle

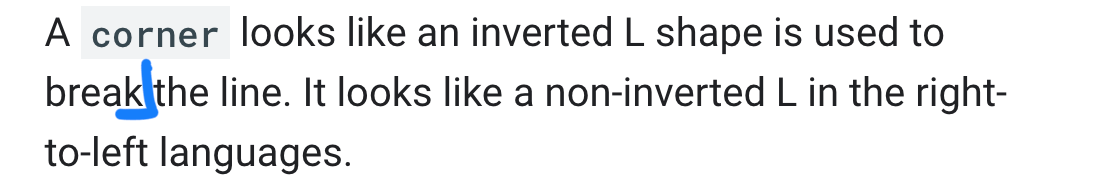

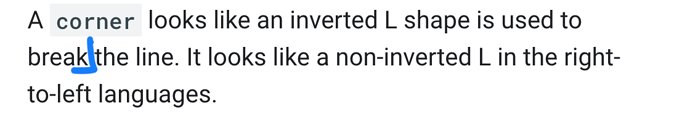

corner:downleft

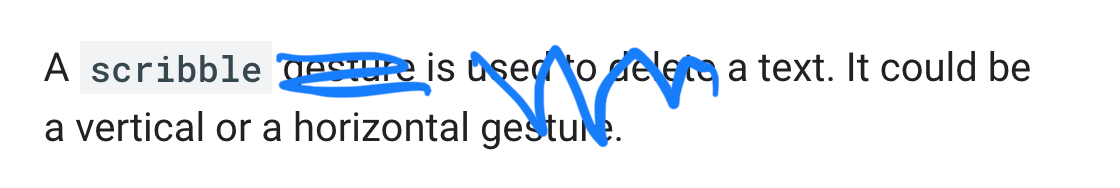

scribble

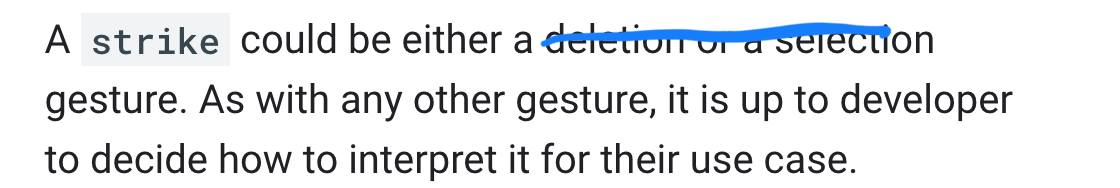

strike

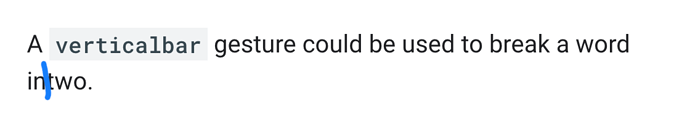

verticalbar

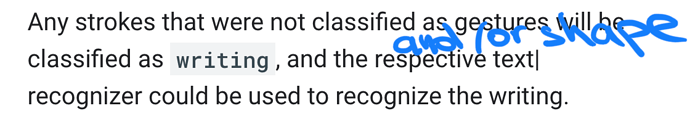

writing

Demo Video

6. Inject Native libs to APK/AAB

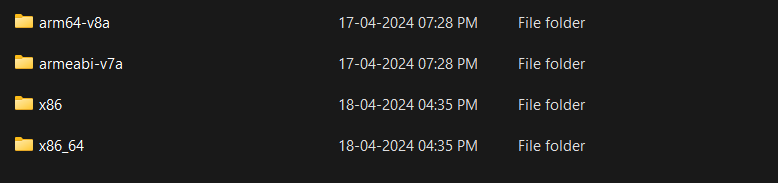

You’ll get 4 native libs files:

but only arm64-v8a and armeabi-v7a are required to run apk on real devices.
Remaining two are required to run apk on Emulators.

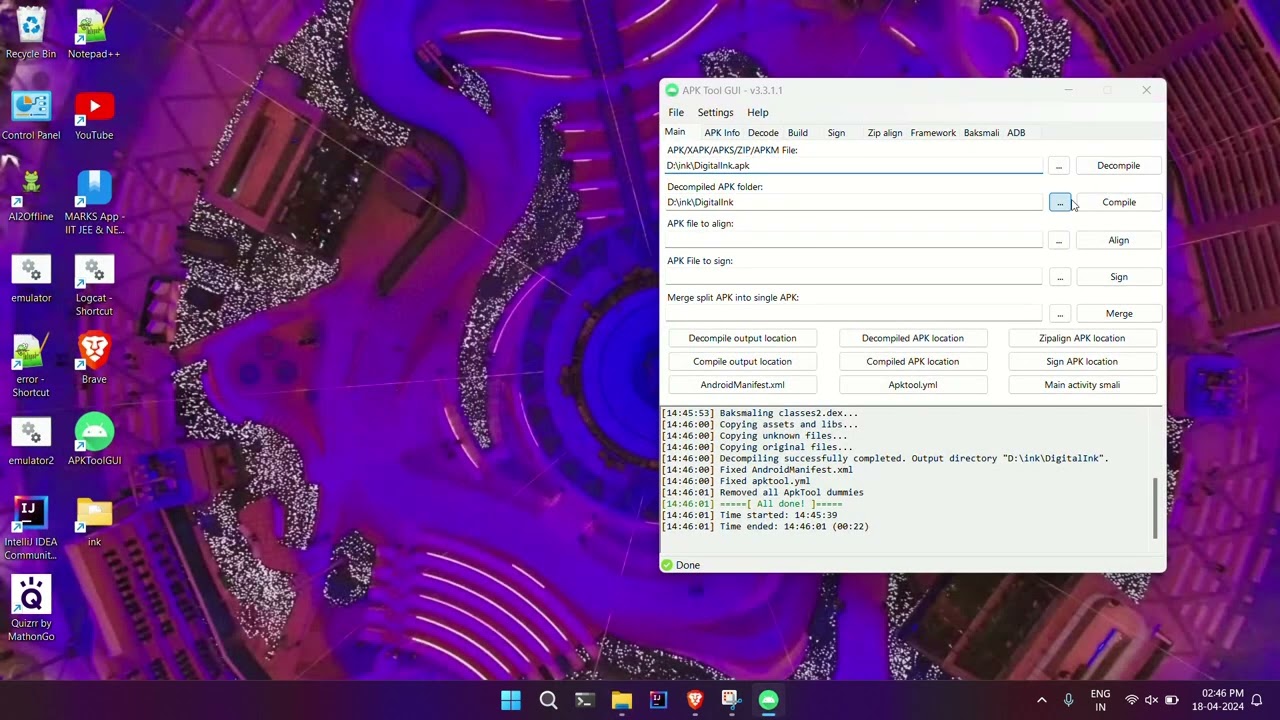

The video given below demonstrates how to add these libs to apk:

A simple app after injection becomes 15mb in size.

How to Sign Apk by @bodymindpower
How to build a big app → APK max. 100 MB or → AAB 150 MB

7. Purchase Extension

PayPal:

UPI:
vknow360@apl

Thank you.
Hope it helps!

2 Likes

ChangeLog Version 1.1

  • Reduced aix size to 3.2mb
    (No additional aix required)
  • Reduced scope of class conflicts
