[PAID] FloatingSheet: Create beautiful and customisable floating sheets ($3 or INR 151)

Extensions
#1

1. Overview

The FloatingSheet extension, allows you to create customizable floating sheets with a floating action button (FAB) on your Android apps. It supports a variety of features, including animating the FAB with customizable margins, colors, and icons. The extension provides methods to show, hide, and remove both the FAB and the associated sheet view. It also includes event handling to notify when the sheet is shown or hidden. This extension is easy to integrate, with support for Android devices running API level 19 and above.

Latest Version: 1
Published: 2024-08-15T18:30:00Z
Last Updated: 2024-08-15T18:30:00Z

2. Blocks

image391×730 23.3 KB

3. Documentation

Events

SheetShown Event raised when sheet is shown.
SheetHidden Event raised when sheet is hidden.

Methods

CreateFloatingSheet Creates floating action button and associates component as sheet view.
component | component
bottomMargin | number
rightMargin | number
animDuration | number
dimBackground | boolean
fabColor | number
icon | text
ShowFAB Shows floating action button.
HideFAB Hides floating action button.
IsSheetVisible Returns whether floating sheet is visible or not.
ShowSheet Shows floating sheet.
HideSheet Hides floating sheet.
Remove Removes floating action button and sheet from screen.

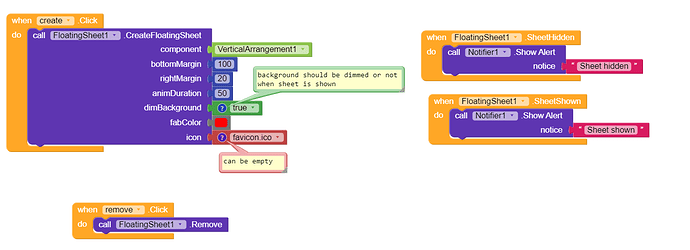

4. Example Blocks

image1395×507 39.3 KB

bottomMargin and rightMargin are responsive values.

5. Purchase Extension

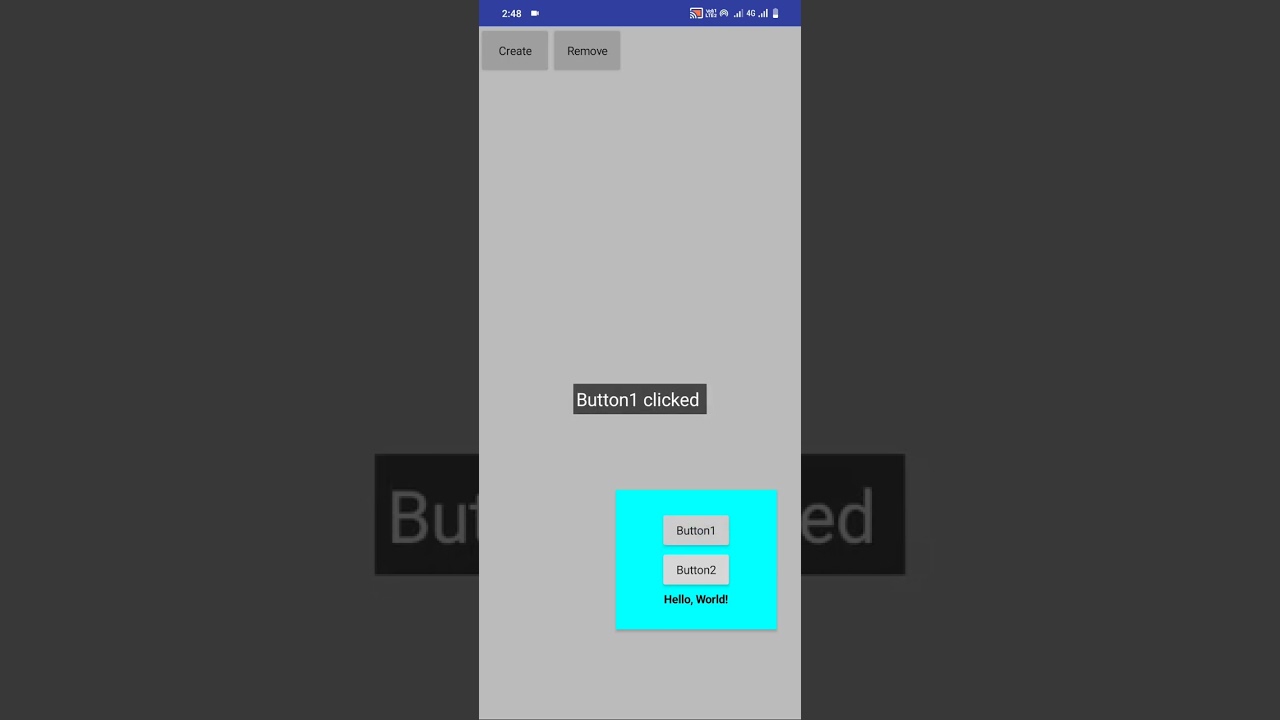

6. Preview

Thank you.
Hope it helps!
