[FREE] Component tools extension

[Mohamed_Tamer]

@topgatgets

please add component or layout full click feature

It will be added in the next update of my Component Tools extension

[kitavalf (Valf)]

Add duration

[iamwsumit (Sumit Kumar)]

unable to watch demo video

[Mohamed_Tamer]

Yes, you are right, i will re upload it

[Vaibhav]

Hello @Mohamed_Tamer Can we move multiple components at once?

[Mohamed_Tamer]

Yes you can.

[Vaibhav]

can you show how?

[Mohamed_Tamer]

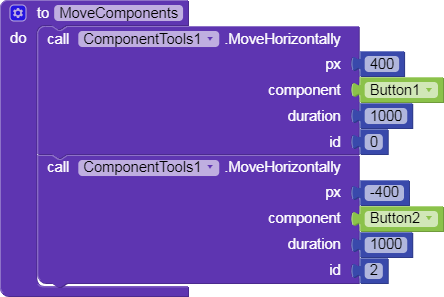

Here is an example:

And this is the output:

All the movement blocks works with ids, which will help you manage multiple movements at the same time.
That was a usage example about movements also:

@Mohamed_Tamer

Move your components:

As you know the extension have some blocks that controls the movement of the components.This usage example describes how to use this blocks.
You can try this apk by touching a component then writing its id and press move,pause,resume.

blocks:

[Vaibhav]

Thanks for the answer. But in the above example(latest provided blocks) you have have used two different components with two MoveHorizontal methods for each component.

But what I want to ask is, can we use only one MoveHorizontal method and then pass a list of components in a component socket of the mentioned method??

[Mohamed_Tamer]

@Vaibhav

pass a list of components in a component socket of the mentioned method??

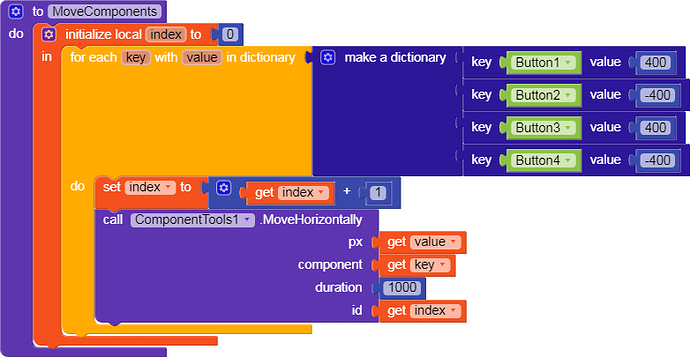

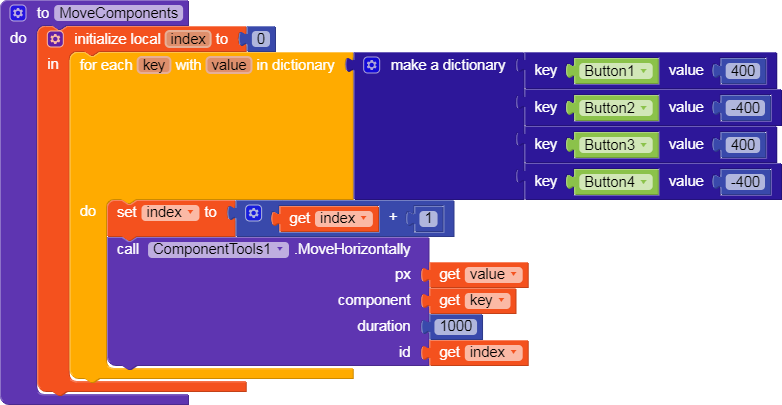

Right now you can’t.But there is another way :

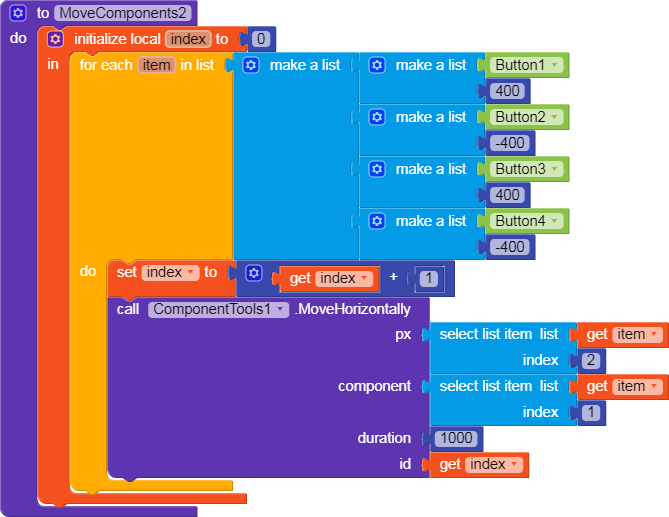

Or:

Both methods works with me.

[Vaibhav]

Ok will try this. Will ping you if any query. Thanks

[Soham_Shah]

Hi @Mohamed_Tamer could you also please add events like when component flung or slided?

[Mohamed_Tamer]

It can be done by the touched event I think

@Soham_Shah

component flung or slided?

The action variable in the touched event, also you might use the position count variable.

[Soham_Shah]

ok thank you but which action would be useful to detect it?

[Mohamed_Tamer]

@Soham_Shah

ok thank you but which action would be useful to detect it

For sliding ACTION_MOVE is useful.For fling I think it can be done using the pointer count variable, you can find all of the actions here:
