`NocoDB`

No Code Database | Airtable & Baserow Alternative

NocoDB provides an intuitive spreadsheet interface for creating online databases like Airtable and Baserow, either from scratch or by connecting to any Postgres/MySQL.

Blocks:

GetAllRows

Function to get all rows of the database. Keep the filterList empty if you don’t want to filter the data based on certain conditions.

Parameter	Type
filters	list

GetRowById

Function to get a row by id. Keep the column list empty if you don’t want row of any specific column.

Parameter	Type
rowId	number
columnList	list

GetColumn

Function to get a column using column name. Keep the filters list empty if you want to get the column without applying any filter.

Parameter	Type
columnName	text
filters	list

FilterSortBy

Function to apply SortBy filter that can sort the result based on the ascending or descending order of column names.

Parameter	Type
columnNames	list

Return Type: text

Ascending

Function to retrieve ascending order of a column name.

Parameter	Type
columnName	text

Return Type: text

Descending

Function to retrieve descending order of a column name

Parameter	Type
columnName	text

Return Type: text

FilterSkipRows

Function to apply SkipRows filter that can skip first n number of rows in the data.

Parameter	Type
number	number

Return Type: text

FilterLimitLength

Function to apply LimitLength filter that can limit the number of rows to be retrieved in the data.

Parameter	Type
number	number

Return Type: text

FilterWhere

Function to apply conditional filters. Don’t include space anywhere in the condition string.

Parameter	Type
conditions	text

Return Type: text

GetCell

Function to get a cell.

Parameter	Type
rowId	number
columnName	text

GetRowCount

Function to get row count. Keep the conditions string empty if you don’t want to retrieve count based on certain conditions. If you are adding any condition don’t include space anywhere in the string.

Parameter	Type
conditions	text

CreateRow

Function to create row.

Parameter	Type
columnList	list
valueList	list

UpdateRow

Function to update a row.

Parameter	Type
rowId	number
columnList	list
valueList	list

DeleteRow

Function to delete a row.

Parameter	Type
rowId	number

Events:

GotAllRows

Triggered when successfully retrieved all rows.

Parameter	Type
values	text
rowIds	list
totalRows	number
response	text

GotRowById

Triggered when successfully retrieved row by id.

Parameter	Type
response	text

GotColumn

Triggered when successfully retrieved column.

Parameter	Type
values	text
totalRows	number
response	text

GotCell

Triggered when successfully retrieved cell.

Parameter	Type
response	text
value	any

GotRowCount

Triggered when successfully retrieved rows count.

Parameter	Type
count	number

RowCreated

Triggered when successfully create a row.

Parameter	Type
rowId	number

RowUpdated

Triggered when successfully updated row.

Parameter	Type
response	text

RowDeleted

Triggered when successfully deleted a row.

Parameter	Type
response	text

OnError

Triggered on error.

Parameter	Type
errorMessage	text
errorFrom	text

Properties:

Url

Host url of NocoDB server. Change it only if you are using self hosted server.

TableId

Table id of your NocoDB database.

Token

API Token of your NocoDB database.

Conditional Operators

Do not include any space while using this inside the string.

It can be used in these two blocks:

Operation	Meaning	Example
eq	equal	(colName,eq,colValue)
neq	not equal	(colName,neq,colValue)
not	not equal (alias of neq)	(colName,not,colValue)
gt	greater than	(colName,gt,colValue)
ge	greater or equal	(colName,ge,colValue)
lt	less than	(colName,lt,colValue)
le	less or equal	(colName,le,colValue)
is	is	(colName,is,true/false/null)
isnot	is not	(colName,isnot,true/false/null)
in	in	(colName,in,val1,val2,val3,val4)
btw	between	(colName,btw,val1,val2)
nbtw	not between	(colName,nbtw,val1,val2)
like	like	(colName,like,%name)
isWithin	is Within (Available in `Date` and `DateTime` only)	(colName,isWithin,sub_op)
allof	includes all of	(colName,allof,val1,val2,…)
anyof	includes any of	(colName,anyof,val1,val2,…)
nallof	does not include all of (includes none or some, but not all of)	(colName,nallof,val1,val2,…)
nanyof	does not include any of (includes none of)	(colName,nanyof,val1,val2,…)

Comparison Sub-Operators

The following sub-operators are available in Date and DateTime columns.

Operation	Meaning	Example
today	today	(colName,eq,today)
tomorrow	tomorrow	(colName,eq,tomorrow)
yesterday	yesterday	(colName,eq,yesterday)
oneWeekAgo	one week ago	(colName,eq,oneWeekAgo)
oneWeekFromNow	one week from now	(colName,eq,oneWeekFromNow)
oneMonthAgo	one month ago	(colName,eq,oneMonthAgo)
oneMonthFromNow	one month from now	(colName,eq,oneMonthFromNow)
daysAgo	number of days ago	(colName,eq,daysAgo,10)
daysFromNow	number of days from now	(colName,eq,daysFromNow,10)
exactDate	exact date	(colName,eq,exactDate,2022-02-02)

For isWithin in Date and DateTime columns, the different set of sub-operators are used.

Operation	Meaning	Example
pastWeek	the past week	(colName,isWithin,pastWeek)
pastMonth	the past month	(colName,isWithin,pastMonth)
pastYear	the past year	(colName,isWithin,pastYear)
nextWeek	the next week	(colName,isWithin,nextWeek)
nextMonth	the next month	(colName,isWithin,nextMonth)
nextYear	the next year	(colName,isWithin,nextYear)
nextNumberOfDays	the next number of days	(colName,isWithin,nextNumberOfDays,10)
pastNumberOfDays	the past number of days	(colName,isWithin,pastNumberOfDays,10)

Logical Operators

It can be used if more than one condition is to be used.

Operation	Example
~or	(checkNumber,eq,JM555205)~or((amount, gt, 200)~and(amount, lt, 2000))
~and	(checkNumber,eq,JM555205)~and((amount, gt, 200)~and(amount, lt, 2000))
~not	~not(checkNumber,eq,JM555205)

Extension Setup

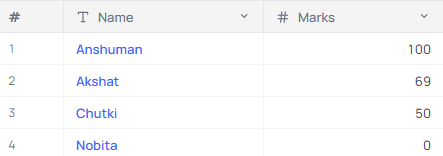

Our data structure is like this:

How to get API Token?

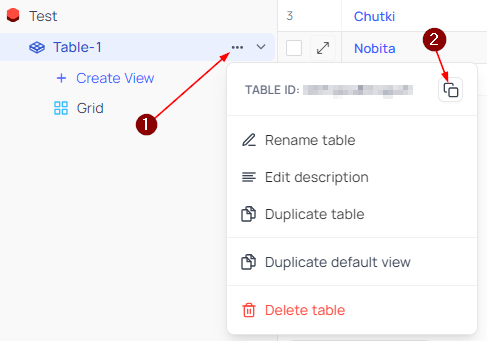

Getting Table ID

FAQs

Q. How to use conditional filters?

Output:

[
  {
    "Id": 35,
    "Name": "Anshuman",
    "Marks": 100,
    "CreatedAt": "2024-10-05 09:29:28+00:00",
    "UpdatedAt": "2024-10-06 06:29:47+00:00"
  },
  {
    "Id": 79,
    "Name": "Nobita",
    "Marks": 0,
    "CreatedAt": "2024-10-06 06:30:25+00:00",
    "UpdatedAt": "2024-10-06 06:30:33+00:00"
  }
]

Q. How to use sort filters?

Output:

[
  {
    "Id": 35,
    "Name": "Anshuman",
    "Marks": 100,
    "CreatedAt": "2024-10-05 09:29:28+00:00",
    "UpdatedAt": "2024-10-06 06:29:47+00:00"
  },
  {
    "Id": 70,
    "Name": "Akshat",
    "Marks": 69,
    "CreatedAt": "2024-10-06 04:27:42+00:00",
    "UpdatedAt": "2024-10-06 06:29:53+00:00"
  },
  {
    "Id": 72,
    "Name": "Chutki",
    "Marks": 50,
    "CreatedAt": "2024-10-06 04:32:31+00:00",
    "UpdatedAt": "2024-10-06 06:30:23+00:00"
  },
  {
    "Id": 79,
    "Name": "Nobita",
    "Marks": 0,
    "CreatedAt": "2024-10-06 06:30:25+00:00",
    "UpdatedAt": "2024-10-06 06:30:33+00:00"
  }
]

Download

Download by version

1.0 (Latest)

in.akshatdeveloper.NocoDB.aix (59.5 KB)

Liked My Work?

This documentation was generated using Akshat Developer’s Documentation Generator.
