Media Player Extension based on Androidx Media3 Library for AppInventor, Kodular, Media3 is upgraded version of Exoplayer
Hello dear! it’s Media Player Extension based on Androidx Media3 Library in this extension i used Androidx Media3 library version 1.3.1 it’s latest version of Media3. Why i not used Exoplayer library to create this extension because Exoplayer is deprecated and google will not continue exoplayer because Google launched Media3, Media3 contains all exciting Exoplayer features and even more basically Media3 is upgraded version of Exoplayer.
Our extension support all Media protocols like MP4, HLS, DASH, RTSP and SmoothStreaming. This Extension will be best choice for Developers who demand the best performance and flexibility in media.
Feature’s
Support all DRM protected media’s.
Most highlighted feature is developer can create custom controls, Any type he/she want…

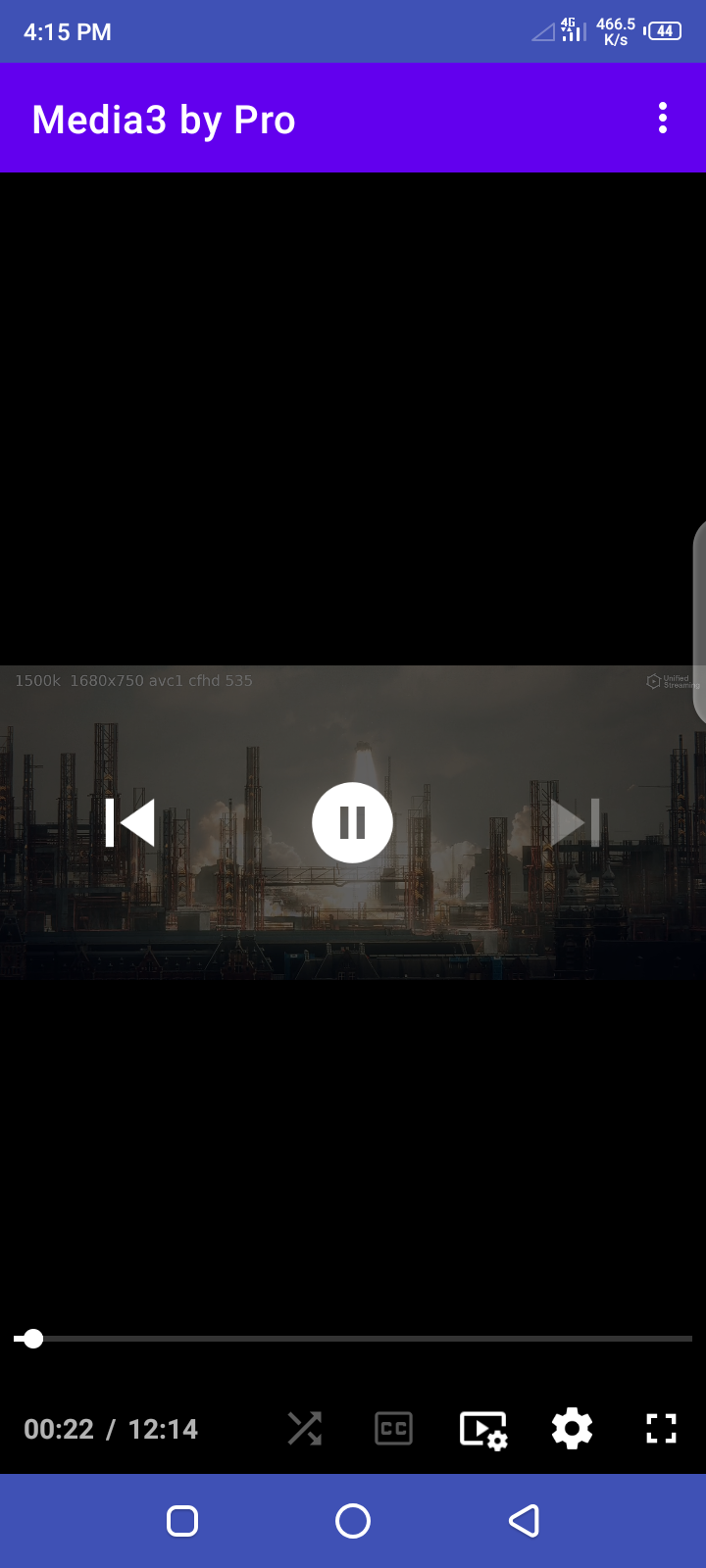

Default Controls.

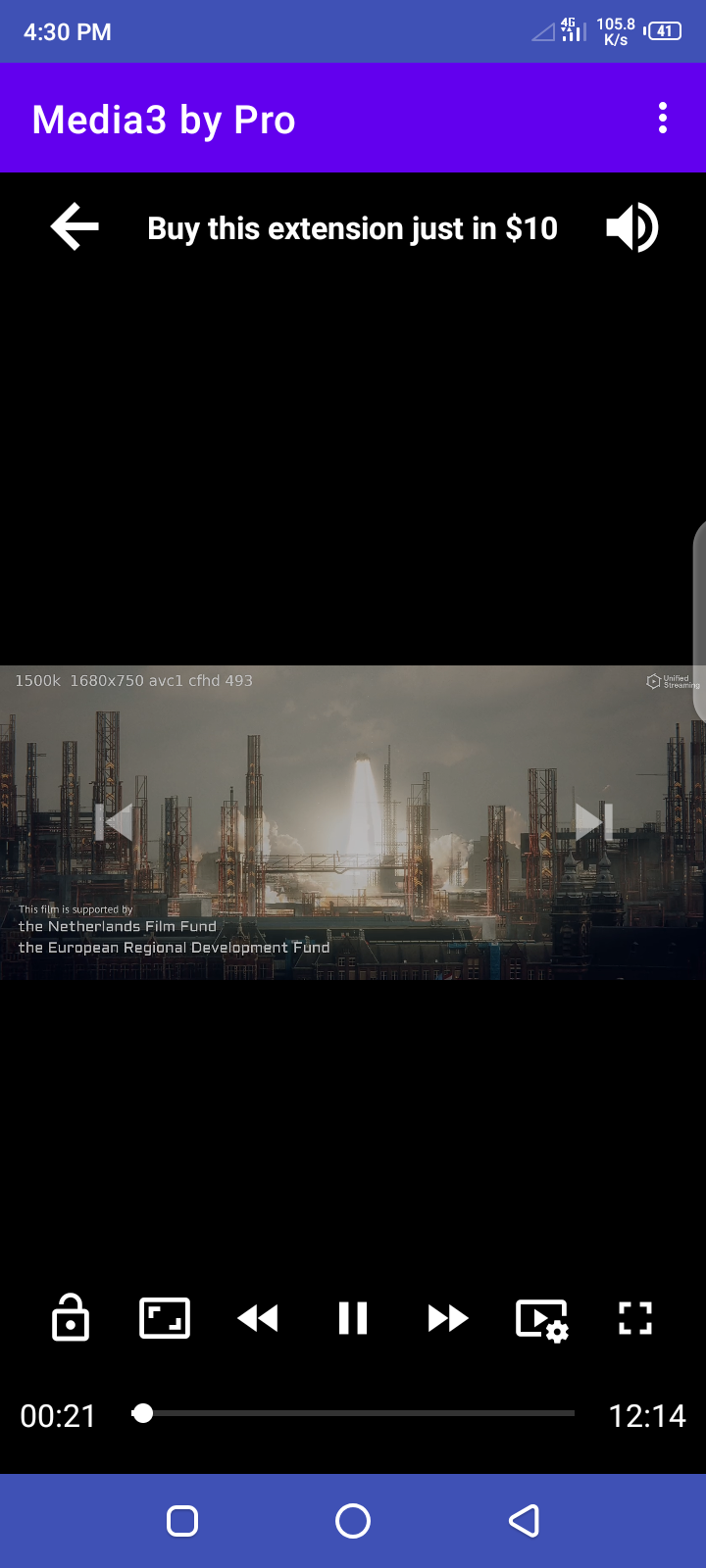

Custom Controls

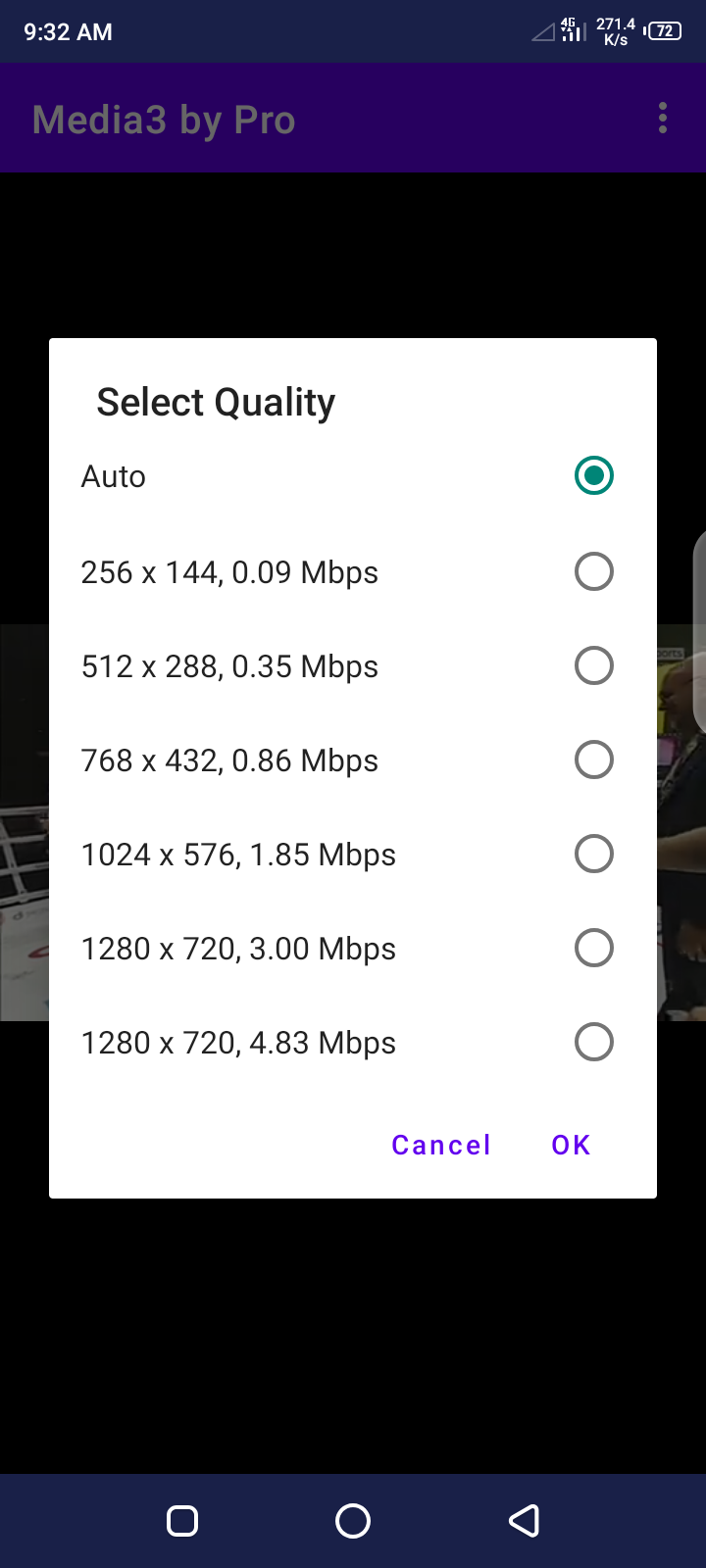

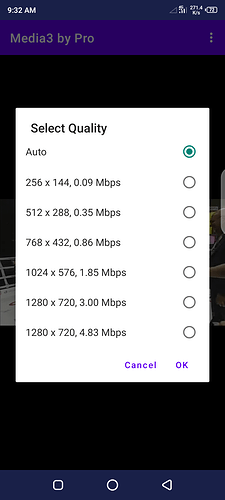

Quality selection, user can change quality.
Supported formats
Streaming: HLS, DASH, RTSP and SmoothStreaming
Containers: MP4, MOV, FLV, MKV, WebM, Ogg, MPEG
Video: H.263, H.264 AVC, H.265 HEVC, MPEG-4 SP, VP8, VP9, AV1
Audio: Vorbis, Opus, FLAC, ALAC, MP1, MP2, MP3, AAC, AC-3, E-AC-3, DTS, DTS-HD, TrueHD
DRM
Widevine
Clearkey
Playready
Events
OnAudioSessionIdChanged
Event raised when audio session change.
audioSessionId = Number
OnControlsVisibilityChanged
Event raised when controls visible or hide.
visible = Boolean
OnCues
Event raised when Text output changes.
cues = List
OnFullscreenButtonClick
Event raised when fullscreen button clicked.
isFullscreen = Boolean
OnIsLoadingChanged
Event raised when the player starts or stops loading.
isLoading = Boolean

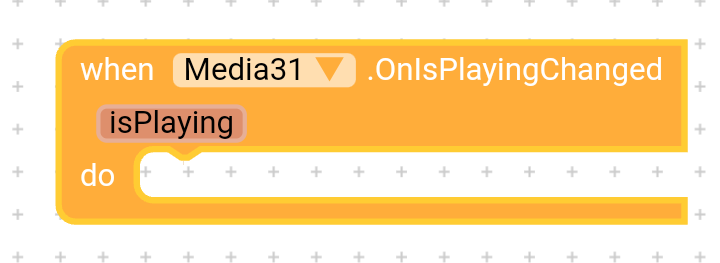

OnIsPlayingChanged
Event raised when the player’s play/pause state changes.
isPlaying = Boolean
OnMaxSeekToPreviousPositionChanged
Event raised when maximum seek to previous position change.
maxSeekToPreviousPositionMs = Number
OnMetadataChanged
Event raised when media metadata changes.
data = Dictionary
Keys
title,
artist,
albumTitle,
albumArtist,
displayTitle,
subtitle,
description,
mediaType,
artwork_uri,
track_number,
total_tracks,
releaseYear,
playable
OnPlayWhenReadyChanged
Event raised when play when ready change.
playWhenReady = Boolean
reason = Number
OnPlaybackStateChanged
Event raised when playback state has been changed.
state = Number
OnPlayerError
Event raised when player got error.
error = Text
OnPositionDiscontinuity
Event raised when position discontinuity.
oldContentPositionMs = Number
oldPositionMs = Number
newContentPositionMs = Number
newPositionMs = Number
OnProgressUpdate
Event raised when progress update.
positionMs = Number
bufferedPositionMs = Number
durationMs = Number
OnRenderedFirstFrame
Event raised when video first frame rendered.
OnRepeatModeChanged
Event raised when repeat mode change.
repeatMode = Text
OnSeekBackIncrementChanged
Event raised when seek back imcrement change.
seekBackIncrementMs = Number

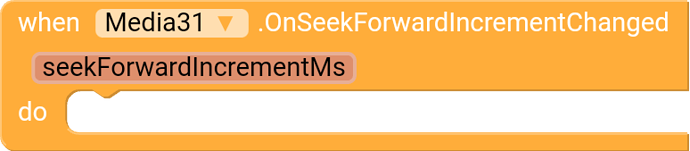

OnSeekForwardIncrementChanged
Event raised when seek forward imcrement change.
seekForwardIncrementMs = Number

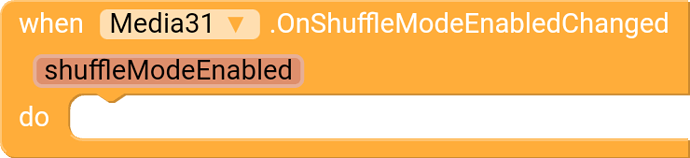

OnShuffleModeEnabledChanged
Event raised when shuffle mode enabled change.
shuffleModeEnabled = Boolean
OnTracksChanged
Event raised when tracks changes.
videoTracks = List of Dictionary
audioTracks = List of Dictionary
textTracks = List of Dictionary
Keys
id,
bitrate,
accessibilityChannel,
averageBitrate,
channelCount,
codecs,
containerMimeType,
cryptoType,
frameRate,
roleFlags,
maxInputSize,
width,
height,
language,
label
OnVolumeChanged
Event raised when device volume change.
volume = Number
muted = Boolean
Functions
CustomControls
Add Custom controls layout in player view.
Required
controlsLayout = Arrangement
PlayerView
Create a player view for player.
Required
playerLayout = Arrangement
defaultControls = Boolean Set False if you set CustomControls
MovePlayerView
Move player view in another layout…
Required
newLayout = Arrangement
SetBufferingProgress
Set Buffering Progress Layout.
Required
progressLayout = Arrangement
Set Circle Progress in VerticalArragement then pass VerticalArragement.

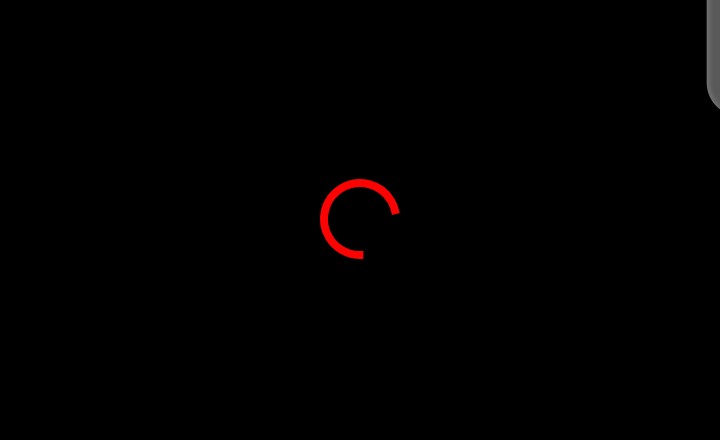

BufferingProgress

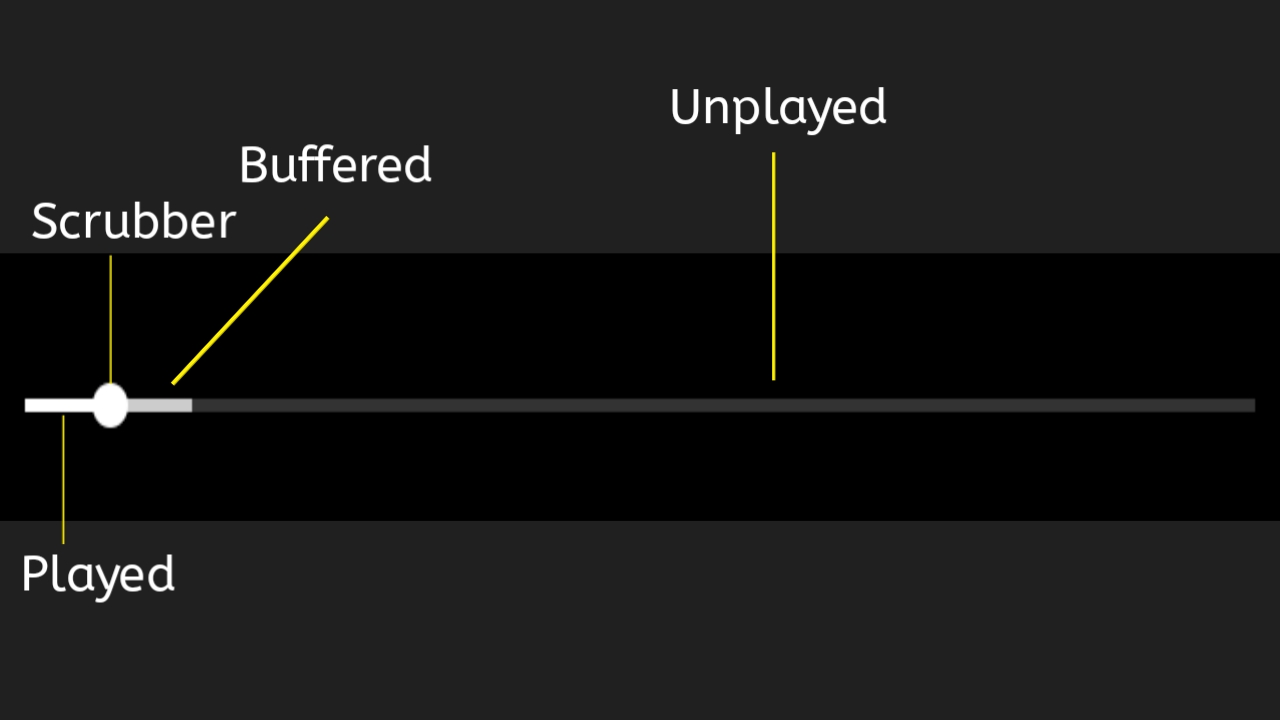

CreateTimeBar
Required
layout = Arrangement
TimeBar
HideControls
Hide the play view controls
ShowControls
Show the play view controls
SetVolume
Volume must be between device minimum volume to device maximum volume.
Required number
SetBrightness
Brightness must be 0.1 to 1
Required number

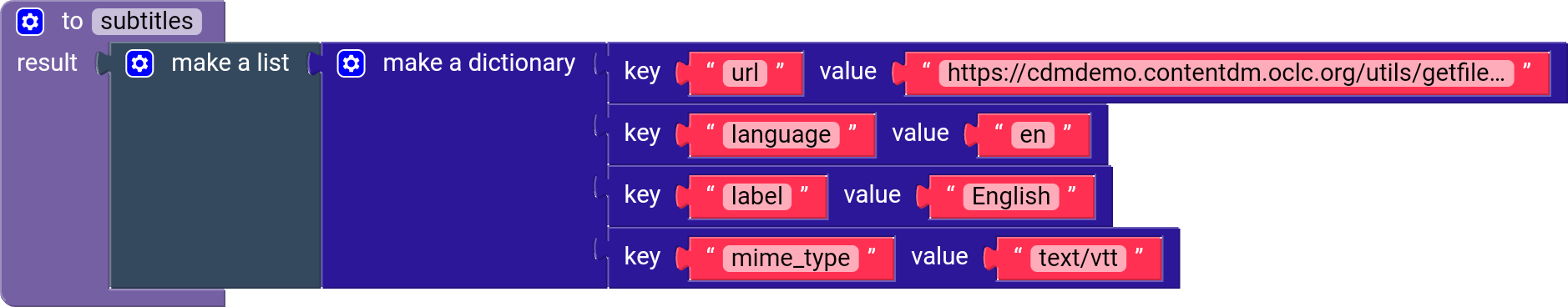

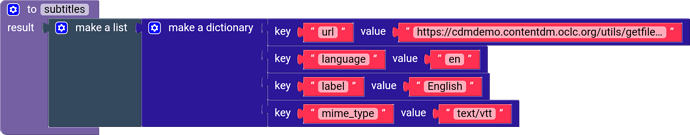

Subbtitles sample
MediaItems
DefaultMediaItem
Create MediaItem for player.
Required*
url = Text
subtitles = List
Return MediaItem
MediaItem
Create MediaItem for player with custom perameters.
Required
url = Text
subtitles = List
mimeType = Text
mediaId = Text
startPositionMs = Number
endPositionMs = Number
sartsAtKeyFrame = Boolean
relativeToLiveWindow = Boolean
relativeToDefaultPosition = Boolean

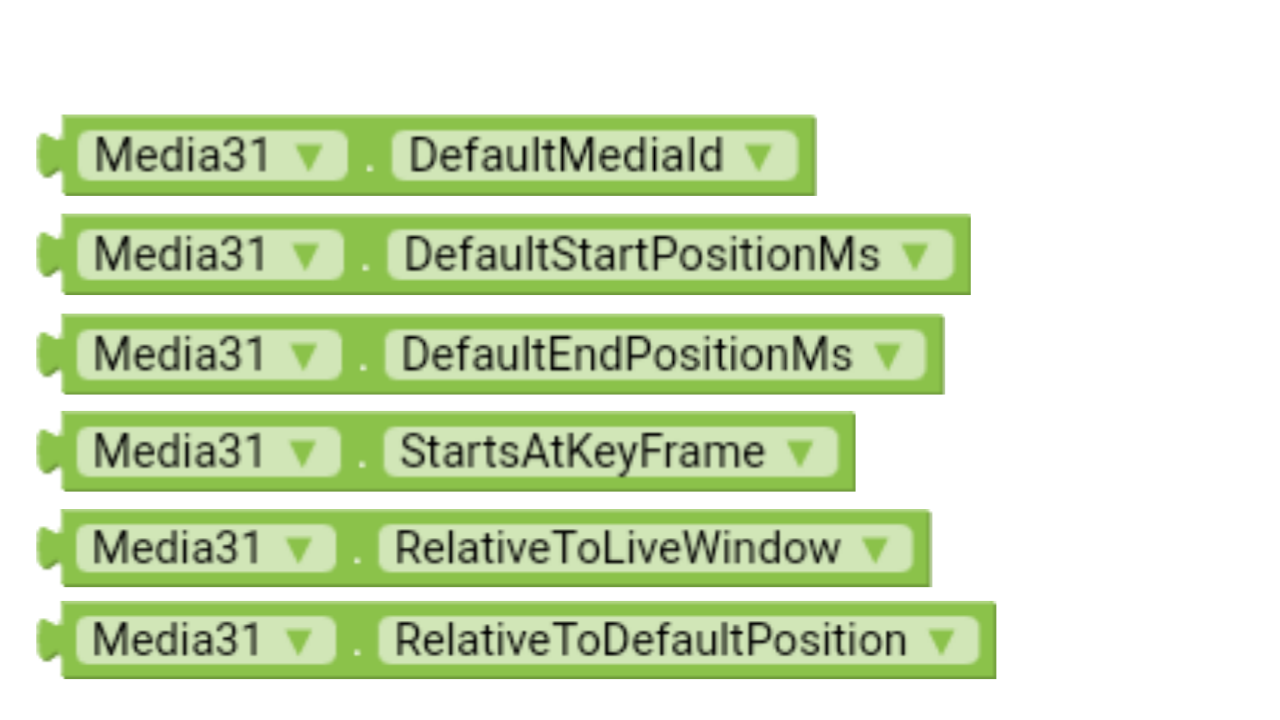

Default Values
Return MediaItem
AddMediaItem
Add MediaItem in MediaItemList.
Required
index = Number
Set index 0 if want to add MediaItem at last in MediaItemList
mediaItem = MediaItem
SetMediaItemList
Required List of MediaItems
GetMediaItemList
Get MediaItem List you seted using SetMediaItemList/AddMediaItem.
RemoveMediaItems
Remove MediaItems from MediaItemList.
Required
fromIndex = Number
toIndex = Number
ClearMediaItemList
Clear MediaItem List as you seted using SetMediaItemList/AddMediaItem.

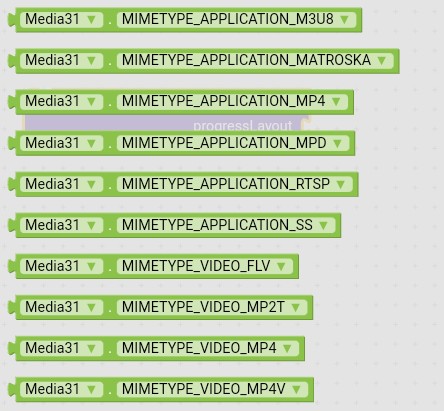

MimeTypes
Use DefaultMimeType if you didn’t know MimeType.
MediaSoures

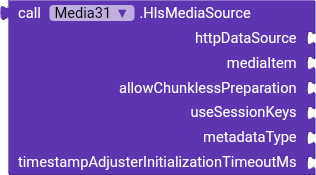

HlsMediaSource
Create HlsMediaSource for HLS playback.
Required
httpDataSource = HttpDataSource
mediaItem = MediaItem
allowChunklessPreparation = Boolean
useSessionKeys = Boolean
metadataType = Number
timestampAdjusterInitializationTimeoutMs = Number

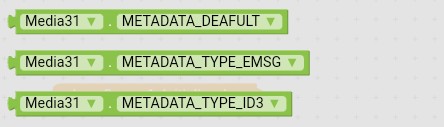

MetadataTypes

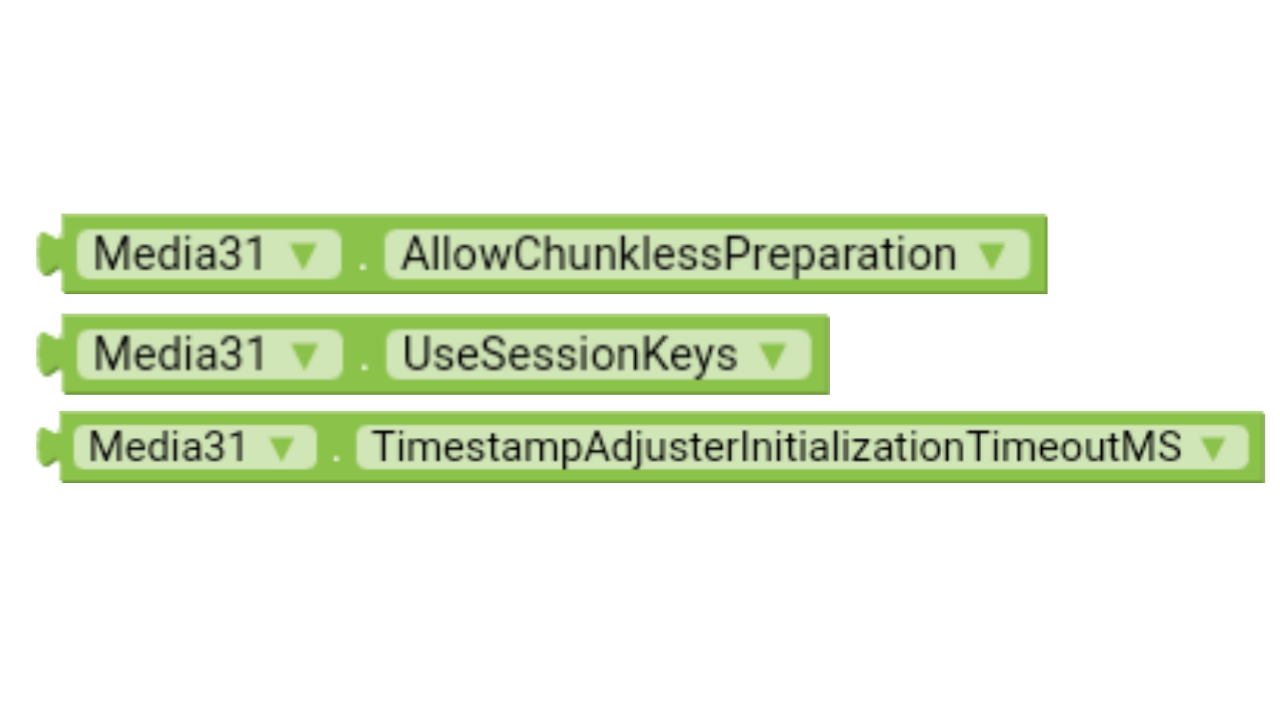

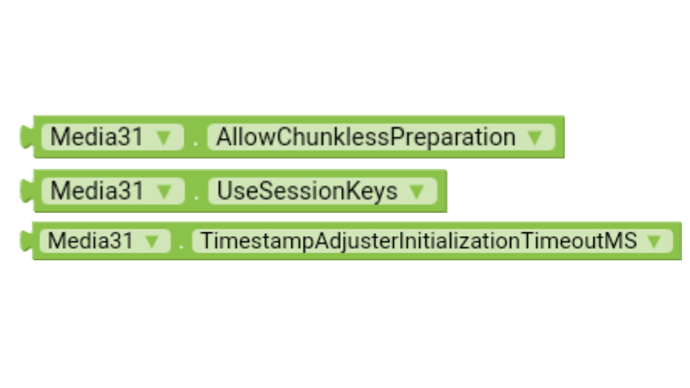

Default Values
Return MediaSource
RtspMediaSource
Required
mediaItem = MediaItem
userAgent = Text
timeoutMs = Number
debugLoggingEnabled = Boolean
forceUseRtpTcp = Boolean

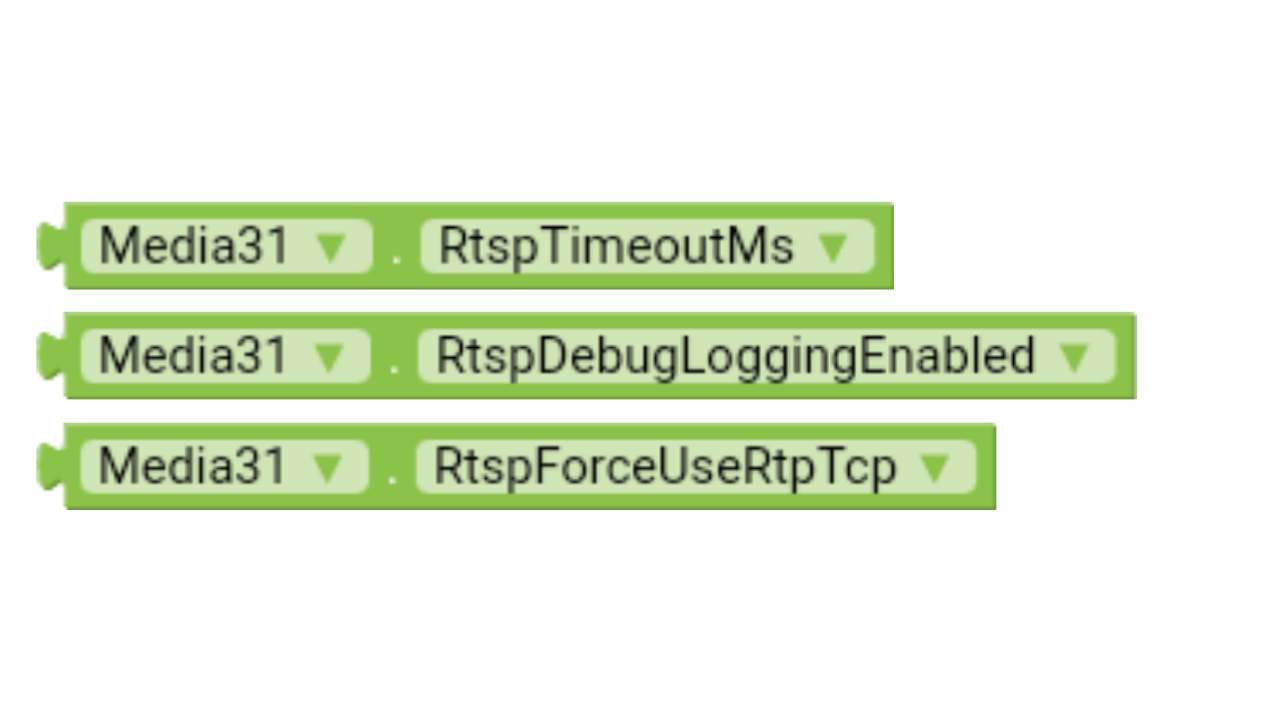

Default Values
Return MediaSource
SsMediaSource
Create SsMediaSource for smooth streaming.
Required
httpDataSource = HttpDataSource
mediaItem = MediaItem
livePresentationDelayMs = Number
Default Value
Return MediaSource
DashMediaSource
Create DashMediaSource for Dynamic Adaptive Streaming over HTTP (DASH) content.
Required
drmMedia = DrmMedia
httpDataSource = HttpDataSource
mediaItem = MediaItem
fallbackTargetLiveOffsetMs = Number
minLiveStartPositionUs = Number

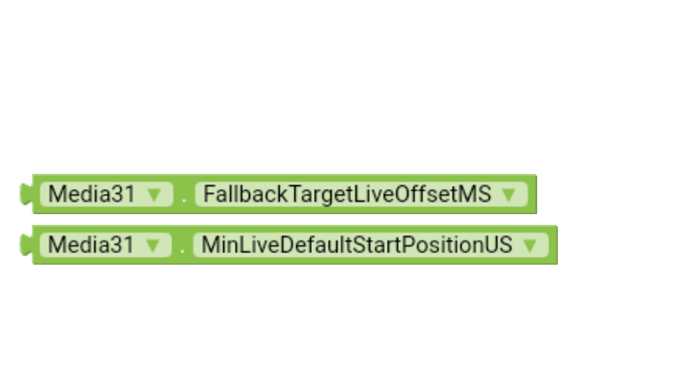

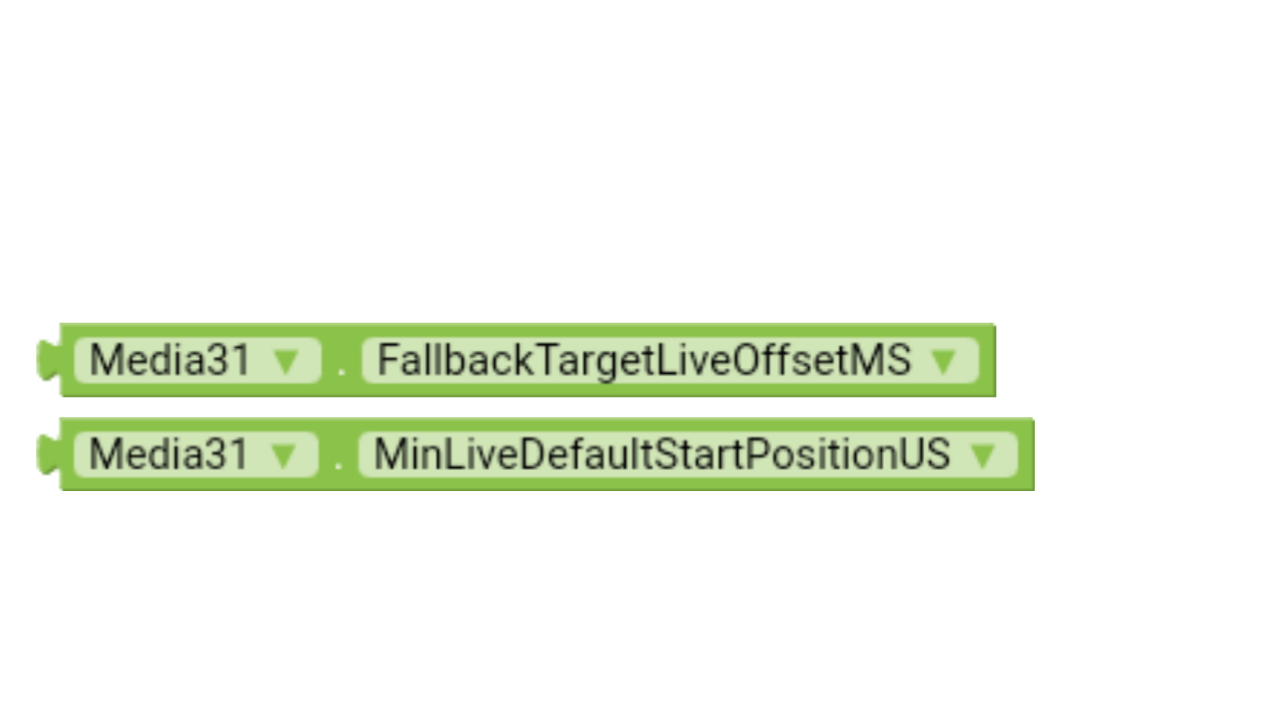

Default Values
Return MediaSource
AddMediaSource
Add AddMediaSource in MediaSourceList.
Required
index = Number
Set index 0 if want to add MediaSource at last in MediaSourceList
mediaSource = MediaSource
SetMediaSourceList
Required List of MediaSources
GetMediaSourceList
Get MediaSource List you seted using SetMediaSourceList/AddMediaSource.
RemoveMediaSources
Remove MediaSources from MediaSourceList.
Required
fromIndex = Number
toIndex = Number
ClearMediaSourceList
Clear MediaSource List as you seted using SetMediaSourceList/AddMediaSource.
DrmMedia’s
DrmMedia
Create Drm Media for drm encrypted media. this fetch license keys from license url.
Required
drmScheme = Text
licenseUrl = Text
multiSession = Boolean
forceDefaultLicenseUri = Boolean
forceSessionsForAudioAndVideoTracks = Boolean
playClearContentWithoutKey = Boolean
Return DrmMedia
LocalDrmMedia
Create Drm Media with key id and key.
Required
drmScheme = Text
keyId = Text
key = Text
inHex = Boolean
multiSession = Boolean
forceDefaultLicenseUri = Boolean
forceSessionsForAudioAndVideoTracks = Boolean
playClearContentWithoutKey = Boolean
Return DrmMedia
Default Values

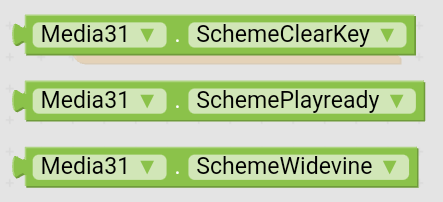

Drm Scheme’s
NoDrmMedia
Use this if media doesn’t required license.
HttpDataSource
Required
allowCrossProtocolRedirects = Boolean
connectTimeoutMs = Number
keepPostFor302Redirects = Boolean
readTimeoutMs = Number
requestHeaders = Dictionary
userAgent = Text

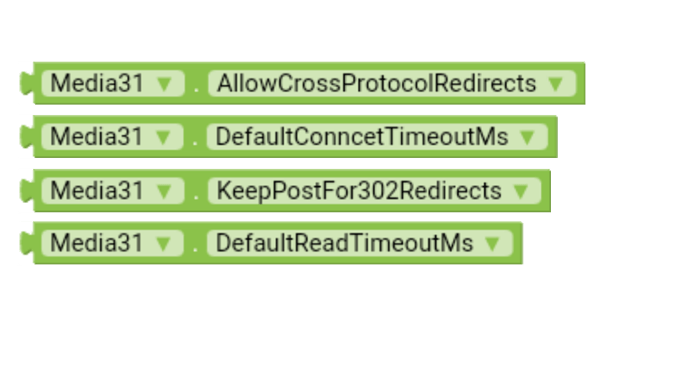

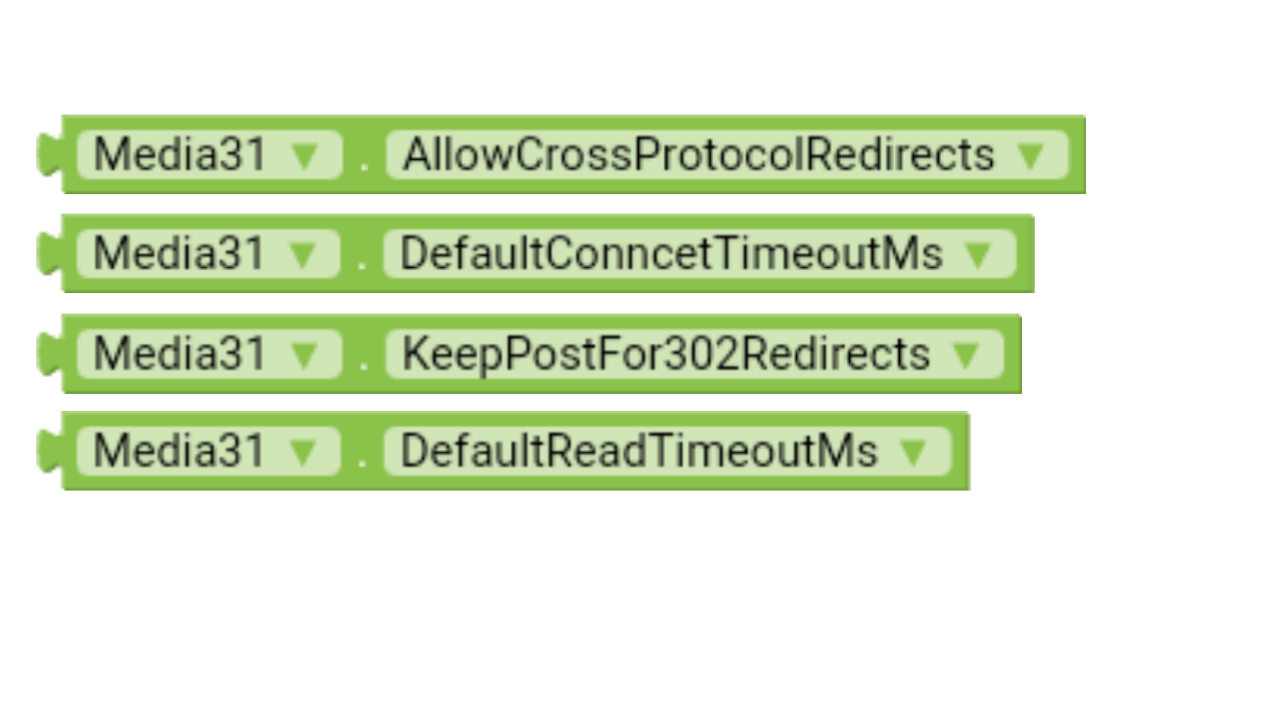

Default Values
Return HttpDataSource

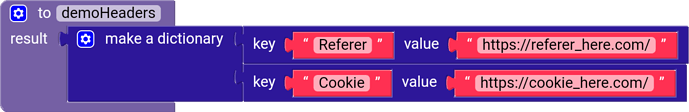

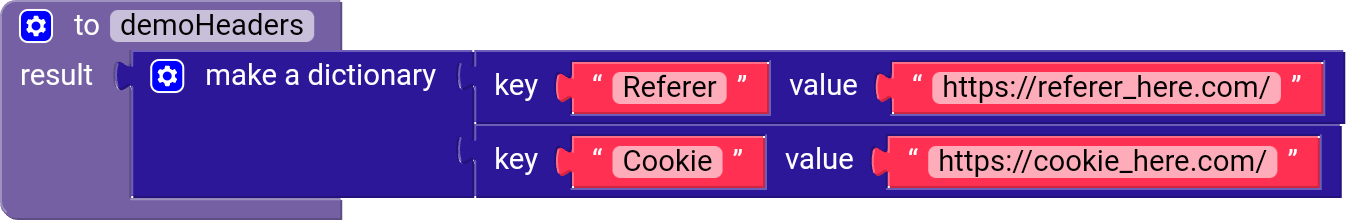

Request Headers sample
SetHttpDataSource
Use this only when you use just MediaItems not any MediaSources else this not work. If you’re using MediaSources then you can set HttpDataSource directly in MediaSources…
Required
httpDataSource = HttpDataSource
ShowSpeedSelectionDialog
Required
title = Text

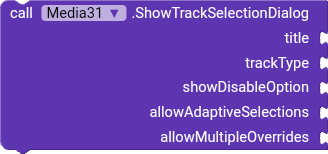

ShowTrackSelectionDialog
Required
title = Text
trackType = Number
showDisableOption = Boolean
allowAdaptiveSelections = Boolean
allowMultipleOverrides = Boolean
GetTracks
Get Tracks of current playback content.
Required
trackType = Number
Return List of Dictionary
SelectTrack
Select track from current tracks.
Required
trackType = Number
index = Number
Set index 0 for Auto.

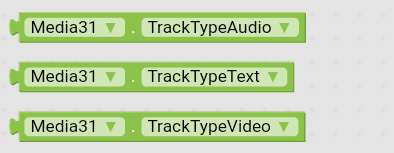

TrackTypes
SeekToPrevious
SeekToNext
SeekTo
Seek to a specific position, set position in milliseconds.
Required
positionMs = Number
Rewind
Set rewind milliseconds in properties mean how much they should rewind.
FastForward
Set FastForward milliseconds in properties mean how much they should forward.
Prepare
Call this before calling Play.
Play
Call this after calling Prepare.
Pause
Pause current player.
Resume
Resume current player.
Stop
Stop current player.
Release
Release current player.
Destroy
Destroy current player, Note this reset all functions and properties before you called.
Format
Format milliseconds to in time.
Required
ms = Number
Properties

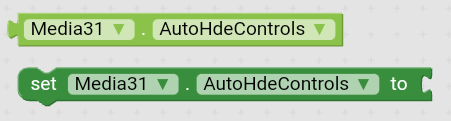

AutoHideControls
Set controls will auto hide after timeout.
Required Boolean

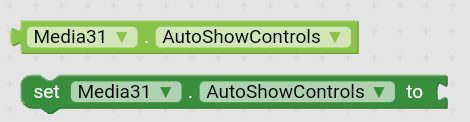

AutoShowControls
Set controls will auto show.
Required Boolean
BufferedPercentage
Return current BufferedPercentage in Number.
BufferedPosition
Return current BufferedPosition in Number.
Buttons
Set True if want to show else False.

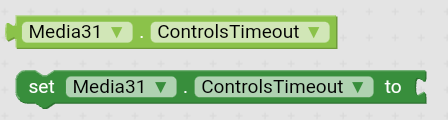

ControlsTimeout
Set ControlsTimeout in milliseconds.
Required Number
CurrentBrightness
Return current CurrentBrightness in Number.
CurrentMediaItemIndex
Return current MediaItem/MediaSource index in Number.
CurrentPosition
Return current playback position in Milliseconds (Number).
CurrentVolume
Return current device volume in Number.

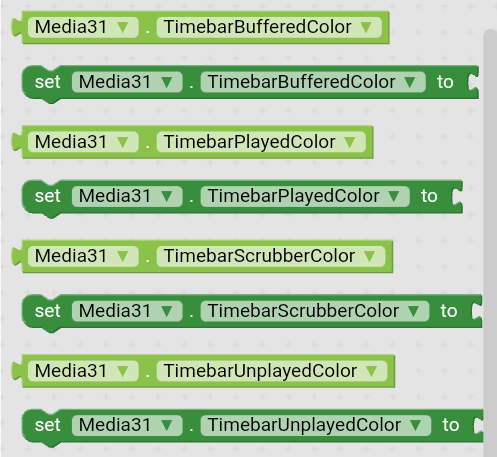

Customize TimeBar
Required Color
FastForwardMs
Set FastForward in milliseconds, How should forward after calling FastForward function.
Required Number
HasNext
This return true if next MediaItem/MediaSource available, Return type Boolean.
HasPrevious
This return true if previous MediaItem/MediaSource available, Return type Boolean.
Required Number

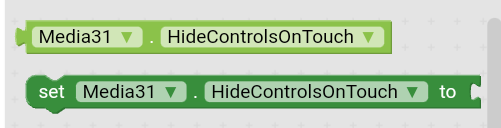

HideControlsOnTouch
Set controls should hide on touch.
Required Boolean
IsControlsFullVisible
This return true if controls visible, Return type Boolean.
IsSeekBackAvailable
This return true if seek back/rewind available, Return type Boolean.
IsSeekForwardAvailable
This return true if seek forward available, Return type Boolean.

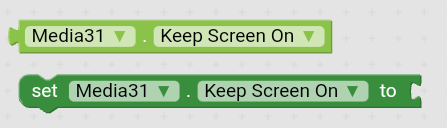

KeepScreenOn
Keep device screen always on.
Required Boolean
MaxVolume
This return device maximum volume, Return type Number.
MinVolume
This return device minimum volume, Return type Number.

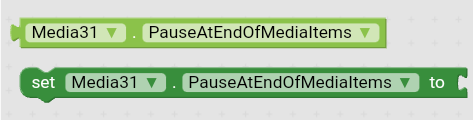

PauseAtAndOfMediaItems
Pause playback after each MediaItem/MediaSource.
Required Boolean
PlaybackSpeed
Set playback speed, Which speed player should play.
Required Number

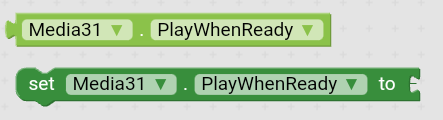

PlayWhenReady
Set play when playback is ready.
Required Boolean
RepeatMode
Set Repeat Mode.
Required

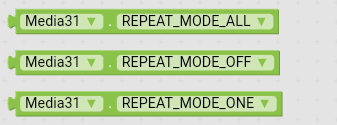

RepeatModes

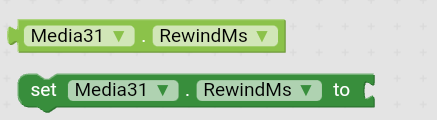

RewindMs
Set Rewind in milliseconds, How should rewind after calling Rewind function.
Required Number

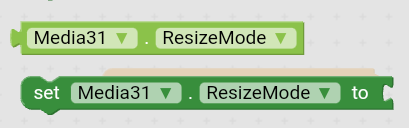

ResizeMode
Set Resize Mode.
Required
ResizeModes

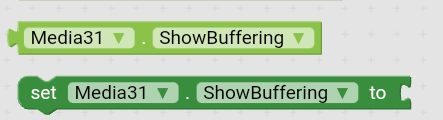

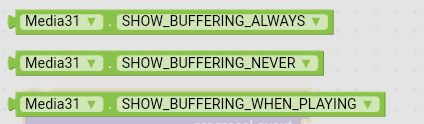

ShowBuffering
Set when buffering show.
Required
TotalBufferedDuration
This return total buffered duration in milliseconds, Return type Number.
Extension specifications:
Extension size: 2.14MB
Extension Version: 1.0.0
Media3 Library Version: 1.3.1
Last amendment: 11 June 2024
Demo Application: Media3.apk
Supported builder: Kodular, App Inventorand
Extension price: $10 or (Pkr 2700)
