SpeedTestLite Extension V1
SpeedTestLite is a non-visible extension to measure Download Speed, Upload Speed, and Ping (plus instant/average throughput, jitter, packet loss) directly from your Kodular/AI2 app.
It is Java 7–compatible and uses no external libraries — just import the AIX and go.
Highlights
- Multi-threaded download test with live progress (instant & average Mbps)
- Multi-threaded upload test (you provide the upload endpoint)
- Ping test (uses
/system/bin/pingwhen available; falls back toInetAddress.isReachable) - Progress & final metrics in JSON
- Adjustable HTTP timeouts
- Helper to read local IP
Installation
- Import
SpeedTestLite.aixinto your project. - Drag the SpeedTestLite (non-visible) component onto your screen.
- Ensure the app has INTERNET permission (enabled by default).
Properties
| Property | Type | Description |
|---|---|---|
ConnectTimeoutMs |
Number | HTTP connect timeout in ms (default 8000). |
ReadTimeoutMs |
Number | HTTP read timeout in ms (default 8000). |
LocalIp() |
Text | Best-effort local IP address of the device. |

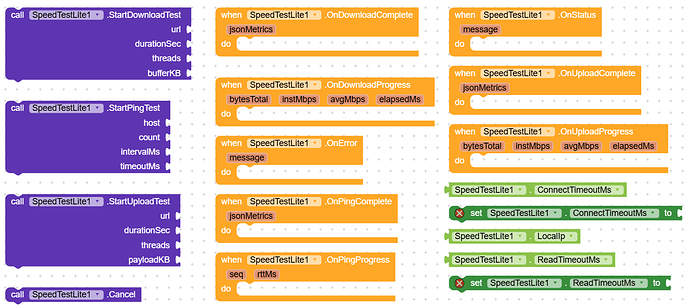

Functions (Blocks)
| Function | Parameters | What it does |
|---|---|---|
StartDownloadTest(url, durationSec, threads, bufferKB) |
Text, Number, Number, Number |
Starts a download test against url. Use a large/static file on a fast server. |
StartUploadTest(url, durationSec, threads, payloadKB) |
Text, Number, Number, Number |
Starts an upload test (binary POST) to your endpoint. |
StartPingTest(host, count, intervalMs, timeoutMs) |
Text, Number, Number, Number |
Sends pings and measures RTT, jitter, loss. |
Cancel() |
— | Cancels any running test. |
Suggested ranges
durationSec≥ 10 for stable readingsthreadsdownload: 1–8; upload: 1–4bufferKB64–256 (download)payloadKB128–1024 (upload)
Events
| Event | Parameters | Notes |
|---|---|---|
OnStatus(message) |
Text |
Informational logs. |
OnError(message) |
Text |
Startup/runtime errors. |
OnDownloadProgress(bytesTotal, instMbps, avgMbps, elapsedMs) |
Number, Number, Number, Number |
Fires ~every 500 ms. |
OnDownloadComplete(jsonMetrics) |
Text (JSON) |
Final download metrics. |
OnUploadProgress(bytesTotal, instMbps, avgMbps, elapsedMs) |
Number, Number, Number, Number |
Fires ~every 500 ms. |
OnUploadComplete(jsonMetrics) |
Text (JSON) |
Final upload metrics. |
OnPingProgress(seq, rttMs) |
Number, Number |
Per-reply RTT. |
OnPingComplete(jsonMetrics) |
Text (JSON) |
Summary: min/avg/max/jitter/loss. |
Example final payloads
Download
{
"type":"download",
"url":"http://example.com/100MB.bin",
"threads":4,
"durationSec":12,
"bytesTotal":123456789,
"avgMbps":54.32,
"elapsedMs":12045
}
Upload
{
"type":"upload",
"url":"https://your-server.com/upload-test",
"threads":2,
"durationSec":12,
"bytesTotal":73400320,
"avgMbps":39.75,
"elapsedMs":12036,
"payloadBytesPerRequest":262144
}
Ping
{
"type":"ping",
"host":"1.1.1.1",
"count":20,
"sent":20,
"received":20,
"lossPercent":0.0,
"minMs":9.34,
"avgMs":14.72,
"maxMs":28.11,
"jitterMs":3.25
}
Quick Start (Blocks)
A) Download Speed
-
(Optional) set:
ConnectTimeoutMs = 8000ReadTimeoutMs = 8000
-
Call:
call SpeedTestLite.StartDownloadTest(
url = "http://example.com/100MB.bin",
durationSec = 12,
threads = 4,
bufferKB = 128
)
-
Handle:
OnDownloadProgress(bytesTotal, instMbps, avgMbps, elapsedMs)OnDownloadComplete(jsonMetrics)
Use a large, static file on a fast server you control or trust. Replace the sample URL accordingly.
B) Upload Speed
Requires an endpoint you control that accepts binary
POSTand closes the response quickly.
call SpeedTestLite.StartUploadTest(
url = "https://your-server.com/upload-test",
durationSec = 12,
threads = 2,
payloadKB = 256
)
Handle:
OnUploadProgress(...)OnUploadComplete(jsonMetrics)
Minimal upload endpoint (Node/Express)
const express = require('express');
const app = express();
app.post('/upload-test', (req, res) => {
let bytes = 0;
req.on('data', c => bytes += c.length);
req.on('end', () => res.status(200).send('OK ' + bytes));
});
app.listen(8081);
C) Ping
call SpeedTestLite.StartPingTest(
host = "1.1.1.1",
count = 20,
intervalMs = 250,
timeoutMs = 1000
)
Handle:
OnPingProgress(seq, rttMs)OnPingComplete(jsonMetrics)
D) Cancel
call SpeedTestLite.Cancel()
Recommended Parameters
- Download:
durationSec10–20,threads4–8,bufferKB64–256 - Upload:
durationSec10–20,threads1–4,payloadKB128–512 - Ping:
count≥ 20,intervalMs200–500,timeoutMs800–1500
Accuracy Tips
- Close other network-heavy apps while testing.
- Repeat tests and take median/average.
- Choose servers geographically close for lower latency/jitter.
- Show both instant and average Mbps in your UI.
Troubleshooting
- OnError: “URL is empty” → provide a valid URL.
- Download stalls/slow → increase
threads, verifydurationSec, use a better file/host. - Upload doesn’t move → your endpoint must accept the body and finish the response.
- Ping shows 100% loss → target drops ICMP; try another host. Java fallback may be less precise on some networks.
- Inconsistent results → mobile/Wi-Fi conditions vary; increase duration and retry.
Limitations
- Upload testing depends on your server endpoint.
- No chunked transfer; standard
Content-Lengthwrites. - On some ROMs,
/system/bin/pingmay be unavailable → fallback is less precise. - Built for light diagnostics (not an official carrier benchmark).
Download
com.rasitech.speedtest.aix (29.0 KB)
License
Sample extension & docs: Apache-2.0. Use/modify with reasonable attribution.
FAQ
Q: Auto-select fastest server?
A: Not built-in. You can probe a list of URLs (latency + short throughput burst) and pick the best.
Q: Can I draw charts?
A: Yes. Feed instMbps/avgMbps from progress events into your chart component or canvas.
Q: Run download + upload + ping at once?
A: Possible, but results will interfere. For accuracy, run one test at a time.
Need a ready-made Blocks layout for a speed meter UI (gauges/bars) or a results screen template? Say the word and I’ll drop a plug-and-play snippet.
