Thanks @The_K_Studio for that contribution, I have added it to guide
i trying this blocks simple list view with icons…if showing list item can i make anather blocks here? then what is the blocks? please help for sugession…
I can’t Understood what you said, Are you getting any error ?
This is exactly what you want:
i just asking? the blocks which you made. that is final or any other blocks should make there…and what is design ? can you show me…

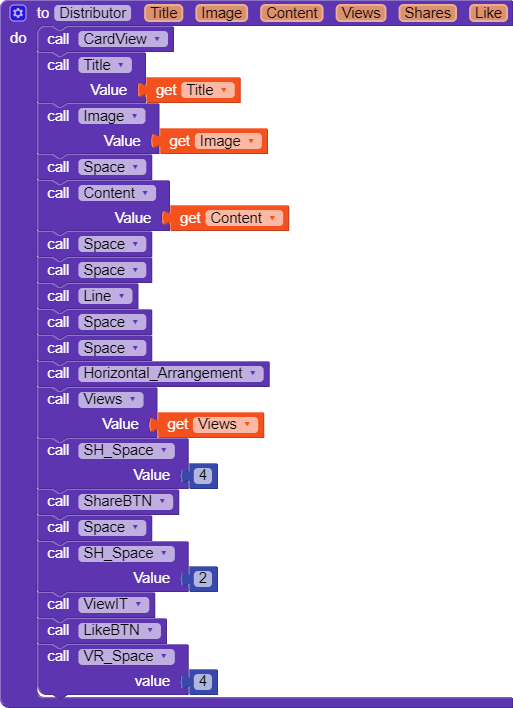

I like to arrange the procedure in this way, because they are many, and is easy to repeat components like space etc.
My app is under construction and @themaayur method helped me a lot
Everything is in the first post blocks/aia and if you want to modify/change the design you need to use your own logic.
I also Arrange them like You did it make Easy To Understand and even Blocks Look Small thought And Nice Ui But Its scheme to Slow.
hmm, there was a error, i fixed it just now
Thanks
Means?
List is Loading slowly.
@VSatish no actually i kodded it like only when the image is loaded, it will get the next list, or else it will miss some images and some will not appear
Ohh Thats why its Looking bit slow.
Because the Schema function is released, I converted the first one to JSON.
The first:
{
"name": "Simple ListView",
"metadata-version": 1,
"author": "Maayur (rewritten by WaterMelonIce)",
"platforms": [
"Kodular"
],
"keys": [
"count",
"icon",
"title"
],
"components": [
{
"id":"{count}",
"type":"HorizontalArrangement",
"properties":{
"BackgroundColor":-1,
"isCard":true,
"AlignHorizontal":1,
"AlignVertical":2,
"Width":-2,
"Height":-1
},
"components":[
{
"id":"image_{count}",
"type":"Image",
"properties":{
"Height":35,
"Width":35,
"Picture":"{icon}"
}
},
{
"id":"space_{count}",
"type":"SpaceView",
"properties":{
"WidthPercent":5
}
},
{
"id":"label_{count}",
"type":"Label",
"properties":{
"FontTypefaceImport":"Product_Sans_Bold.ttf",
"Width":-2,
"Text":"{title}",
"FontSize":16
}
},
{
"id":"button_{count}",
"type":"Button",
"properties":{
"HeightPercent":5,
"Width":-1,
"BackgroundColor":16777215
}
}
]
}
]
}
The block part, (sadly you cannot call method block in the Schema)
Second,
{
"name": "BigImage ListView",
"metadata-version": 1,
"author": "Maayur (rewritten by WaterMelonIce)",
"platforms": [
"Kodular"
],
"keys": [
"count",
"title",
"subtitle"
],
"components": [
{
"id":"{count}",
"type":"MakeroidCardView",
"properties":{
"ContentPaddingBottom":0,
"ContentPaddingLeft":0,
"ContentPaddingRight":0,
"ContentPaddingTop":0,
"AlignHorizontal":3,
"AlignVertical":2,
"Width":-2,
"Height":-1,
"CornerRadius":5
},
"components": [
{
"id":"HorizontalArrangement_{count}",
"type":"HorizontalArrangement",
"properties":{
"AlignHorizontal":1,
"AlignVertical":2,
"Width":-2
},
"components": [
{
"id":"Image_{count}",
"type":"Image",
"properties":{
"HeightPercent":10,
"WidthPercent":32,
"ScalePictureToFit":true
}
},
{
"id":"Space_{count}",
"type":"SpaceView",
"properties":{
"WidthPercent":3
}
},
{
"id":"VerticalArrangement_{count}",
"type":"VerticalArrangement",
"properties":{
"AlignHorizontal":1,
"AlignVertical":1,
"Height":-1,
"Width":-2
},
"components": [
{
"id":"label_{count}",
"type":"Label",
"properties":{
"Width":-2,
"FontTypefaceImport":"Product_Sans_Bold.ttf",
"FontSize":18,
"TextColor":-16738680,
"Text":"{title}"
}
},
{
"id":"subLabel_{count}",
"type":"Label",
"properties":{
"Width":-2,
"FontTypefaceImport":"Product_Sans_Bold.ttf",
"FontSize":12,
"TextColor":-1565085,
"Text":"{subtitle}"
}
}
]
}
]
}
]
}
]
}
Third,
{
"name": "Aia/Aix Store Listview",
"metadata-version": 1,
"author": "Maayur (rewritten by WaterMelonIce)",
"platforms": [
"Kodular"
],
"keys": [
"count",
"icon",
"title",
"updated",
"platform",
"developer",
"downloads",
"buttonName"
],
"components": [
{
"id":"{count}",
"type":"MakeroidCardView",
"properties":{
"AlignVertical":1,
"AlignHorizontal":1,
"Height":-1,
"Width":-2,
"CornerRadius":10,
"BackgroundColor":-1,
"FullClickable":false
},
"components": [
{
"id":"Horizontal_{count}",
"type":"HorizontalArrangement",
"properties":{
"AlignHorizontal":3,
"Width":-2,
"Height":-1
},
"components": [
{
"id":"Image_{count}",
"type":"Image",
"properties":{
"Height":30,
"Width":30,
"Picture":"{icon}"
}
},
{
"id":"Space_{count}",
"type":"SpaceView",
"properties":{
"Width":20
}
},
{
"id":"titleLabel_{count}",
"type":"Label",
"properties":{
"FontTypefaceImport":"Product_Sans_Bold.ttf",
"Width":-2,
"Text":"{title}",
"FontSize":18
}
}
]
},
{
"id":"Space2_{count}",
"type":"SpaceView",
"properties":{
"HeightPercent":2
}
},
{
"id":"des_{count}",
"type":"Label",
"properties":{
"FontTypefaceImport":"Product_Sans_Regular.ttf",
"Width":-1,
"Text":" • Last Upadated: {updated}\n • Platform: {platform}\n • Developer: {developer}\n • Total Downloads: {downloads}",
"FontSize":15,
"TextColor":-16738680
}
},
{
"id":"Horizontal2_{count}",
"type":"HorizontalArrangement",
"properties":{
"AlignHorizontal":2,
"Width":-2,
"Height":-1
},
"components": [
{
"id":"button_{count}",
"type":"Button",
"properties":{
"Shape":1,
"WidthPercent":25,
"Height":-1,
"FontTypefaceImport":"Product_Sans_Bold.ttf",
"FontSize":13,
"Text":"{buttonName}",
"BackgroundColor":-16738680
}
}
]
}
]
}
]
}
Fourth,
{
"name": "Youtube Homepage ListView",
"metadata-version": 1,
"author": "Maayur (rewritten by WaterMelonIce)",
"platforms": [
"Kodular"
],
"keys": [
"count",
"title",
"icon",
"name",
"views",
"time"
],
"components": [
{
"id":"{count}",
"type":"MakeroidCardView",
"properties":{
"AlignHorizontal":3,
"AlignVertical":2,
"Width":-2,
"Height":-1,
"ContentPaddingBottom":0,
"ContentPaddingLeft":0,
"ContentPaddingRight":0,
"ContentPaddingTop":0,
"CornerRadius":5
},
"components": [
{
"id":"thumbImage_{count}",
"type":"Image",
"properties":{
"Width":-2,
"Height":-1,
"ScalePictureToFit":true
}
},
{
"id":"Horizontal_{count}",
"type":"HorizontalArrangement",
"properties":{
"AlignHorizontal":1,
"AlignVertical":2,
"Width":-2,
"HeightPercent":7
},
"components": [
{
"id":"Space_{count}",
"type":"SpaceView",
"properties":{
"Width":6
}
},
{
"id":"profileImage_{count}",
"type":"Image",
"properties":{
"Height":45,
"Width":45,
"Picture":"{icon}"
}
},
{
"id":"Space2_{count}",
"type":"SpaceView",
"properties":{
"WidthPercent":3
}
},
{
"id":"Vertical_{count}",
"type":"VerticalArrangement",
"properties":{
"AlignVertical":1,
"Height":-1,
"Width":-2
},
"components": [
{
"id":"Label_{count}",
"type":"Label",
"properties":{
"FontSize":16,
"FontTypefaceImport":"Product_Sans_Bold.ttf",
"Text":"{title}"
}
},
{
"id":"Label2_{count}",
"type":"Label",
"properties":{
"FontSize":12,
"FontTypefaceImport":"Product_Sans_Regular.ttf",
"TextColor":-12303292,
"Text":"{name} • {views} • {time}"
}
}
]
},
{
"id":"dotsLabel_{count}",
"type":"Label",
"properties":{
"FontTypeface":7,
"TextAlignment":0,
"WidthPercent":8,
"FontSize":20,
"Text":"more_vert"
}
}
]
}
]
}
]
}
*If you need the extension of Image loader, the id is thumbImage_(id)
Fifth,
{
"name": "Social Media ListView",
"metadata-version": 1,
"author": "Maayur (rewritten by WaterMelonIce)",
"platforms": [
"Kodular"
],
"keys": [
"count",
"icon",
"name",
"views",
"time",
"likes",
"description"
],
"components": [
{
"id":"{count}",
"type":"MakeroidCardView",
"properties":{
"AlignHorizontal":3,
"AlignVertical":2,
"Width":-2,
"Height":-1,
"ContentPaddingBottom":0,
"ContentPaddingLeft":0,
"ContentPaddingRight":0,
"ContentPaddingTop":0,
"CornerRadius":5
},
"components": [
{
"id":"Horizontal_{count}",
"type":"HorizontalArrangement",
"properties":{
"AlignHorizontal":1,
"AlignVertical":2,
"Width":-2,
"Height":-1
},
"components": [
{
"id":"Space_{count}",
"type":"SpaceView",
"properties":{
"Width":10
}
},
{
"id":"Image_{count}",
"type":"Image",
"properties":{
"Height":45,
"Width":45,
"Picture":"{icon}"
}
},
{
"id":"Space2_{count}",
"type":"SpaceView",
"properties":{
"WidthPercent":3
}
},
{
"id":"Vertical_{count}",
"type":"VerticalArrangement",
"properties":{
"AlignVertical":1,
"Height":-1,
"Width":-2
},
"components": [
{
"id":"titleLabel_{count}",
"type":"Label",
"properties":{
"FontSize":16,
"FontTypefaceImport":"Product_Sans_Bold.ttf",
"Text":"{name}"
}
},
{
"id":"time&view_{count}",
"type":"Label",
"properties":{
"FontSize":12,
"FontTypefaceImport":"Product_Sans_Regular.ttf",
"TextColor":-12303292,
"Text":"{time} • {views}"
}
}
]
},
{
"id":"dotLabel_{count}",
"type":"Label",
"properties":{
"FontTypeface":7,
"TextAlignment":0,
"WidthPercent":8,
"FontSize":20,
"Text":"more_vert"
}
}
]
},
{
"id":"thumb_{count}",
"type":"Image",
"properties":{
"Height":-1,
"Width":-2,
"ScalePictureToFit":true
}
},
{
"id":"Horizontal3_{count}",
"type":"HorizontalArrangement",
"properties":{
"Width":-2
},
"components": [
{
"id":"Space4_{count}",
"type":"SpaceView",
"properties":{
"Width":10
}
},
{
"id":"descLabel_{count}",
"type":"Label",
"properties":{
"FontSize":14,
"Width":-2,
"TextAlignment":0,
"Text":"{name} • {description}",
"FontTypefaceImport":"Product_Sans_Regular.ttf"
}
}
]
},
{
"id":"Horizontal2_{count}",
"type":"HorizontalArrangement",
"properties":{
"AlignVertical":2,
"HeightPercent":5,
"Width":-2
},
"components": [
{
"id":"likeButton_{count}",
"type":"Button",
"properties":{
"Width":-2,
"FontTypefaceImport":"Product_Sans_Bold.ttf",
"TextColor":-12303292,
"Text":"{likes}",
"BackgroundColor":16777215,
"TextAlignment":0
}
},
{
"id":"comment_{count}",
"type":"Label",
"properties":{
"FontTypeface":7,
"Text":"forum",
"Clickable":true,
"Width":-1,
"FontSize":28,
"TextColor":-6381922,
"TextAlignment":1
}
},
{
"id":"share_{count}",
"type":"Label",
"properties":{
"FontTypeface":7,
"Text":"share",
"Clickable":true,
"FontSize":28,
"TextColor":-6381922,
"TextAlignment":2,
"Width":-2
}
},
{
"id":"Space3_{count}",
"type":"SpaceView",
"properties":{
"WidthPercent":5
}
}
]
}
]
}
]
}
*If you need the extension of Image loader, the id is thumb_(id)
Rewritten AIA: ForthcomingAquamarineMacaw (Schema rewritten).aia (380.8 KB)
There is currently something wrong with the big picture (In the 4th and the 5th). It will stretch so wide.
I have no idea why but you can just remove it from the code, and create with blocks
Great
#offtopic
I also Tried to make Schema for my Design but that was a Successful Failure.
Now i will Try Again with Your Schema as Guide.
I don’t know. But it definitely saves blocks
Hello, its me again, I am writing the third Schema. I have a little question:
What are you setting to?
Let me check
