CustomSheet: Create custom sheets with ease

[vknow360 (Sunny Gupta)]

1.Introduction

Description: Using this extension you can create dialogs like bottom sheet and top sheet (with similar animation).Also you can specify animation style (left,right,bottom,top).
Latest Version: 1.1
Released: May 27, 2021
Last Updated: 2021-07-22T18:30:00Z

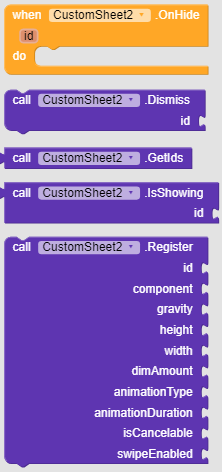

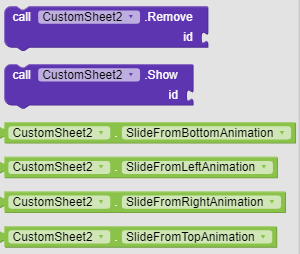

2.Blocks

3.Documentation

Register arrangement

id ~ int
component ~ AndroidViewComponent
gravity ~ int (48 for Top,80 for bottom and 17 for center; more values can be found here )
height ~int (-1 for fill parent and -2 for wrap content)
width ~ int (-1 for fill parent and -2 for wrap content)
dimAmount ~ float (between 0 and 1)
animationDuration ~ int (500 is suitable for all animations)
isCancelable ~ boolean (specifies whether back press can dismiss this sheet or not)
swipeEnabled ~ boolean (specifies whether user can dismiss this sheet by swiping in opposite direction of origin)

Show Sheet

Dismiss/Hide Sheet

It can be shown again

Remove Sheet

Needs to be registered again

IsShowing
Checks whether given sheet is showing or not

4.Downloads

Aix: com.sunny.customsheet.aix (19.8 KB)

Aia: easy.aia (37.0 KB)

Here is a preview:

Test apk:

easy.apk

Thanks to @themaayur for beta testing the extension.

Kindly PM me if you want to donate
Hope it will be helpful!

[themaayur (Mayur Berad)]

Great Extension

I tried it, and it’s perfect bottom sheet, top sheet, custom dialog all in one solution

[Vaibhav]

Great extension. Will purchase it if needed in any of the project.
Btw, any specific reason for not listing the price here in the topic itself?

[themaayur (Mayur Berad)]

@Vaibhav

price here in the topic itself?

Check title

[Vaibhav]

@themaayur

Check title

Yes I now saw that. I am on Mobile, so was not able to read the full title as it’s getting trimmed

[vknow360 (Sunny Gupta)]

@Vaibhav

Great extension. Will purchase it if needed in any of the project.

Thank you.
If you wish to check it before buying then what are you waiting for here is a test apk

easy.apk

[vknow360 (Sunny Gupta)]

Since no one is interested in purchasing it so lets just keep it free.
Maybe it will be helpful to someone in Appathon.

[michael_ngo]

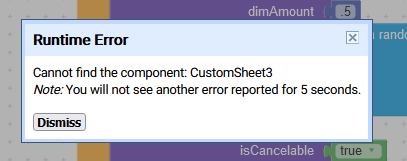

i test aia and found the error " not find the component CustomSheet" . Could u please tell me how to fix it ?

[vknow360 (Sunny Gupta)]

You can try:

1. reloading page
2. reimporting extension
3. reimporting project

[michael_ngo]

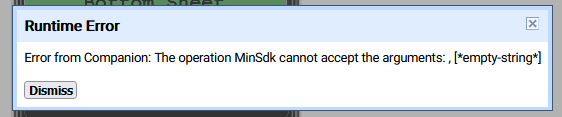

it’s still happening same error and miniSDK error additional

[Still-learning (1-2-3-4...)]

If you upload mit apo inventor aia, this is quite common.

1. Disconnect companion.
2. Go to setting and tick splach screen, list as Json, set minim SDK to 19 or something , set accent colour.

And reconnect companion

[UnknownMan541 (Shubhanshu Jaiswal)]

Demo aia not working

[dora_paz (Dora)]

Demo aia was created with MIT App Inventor, here is a Kodular’s compatible.

easy_1.aia (37.0 KB)

[UnknownMan541 (Shubhanshu Jaiswal)]

When I am increasing height it is not increasing

[vknow360 (Sunny Gupta)]

From where are you changing height?

[dennis_littawe1542 (denlex.)]

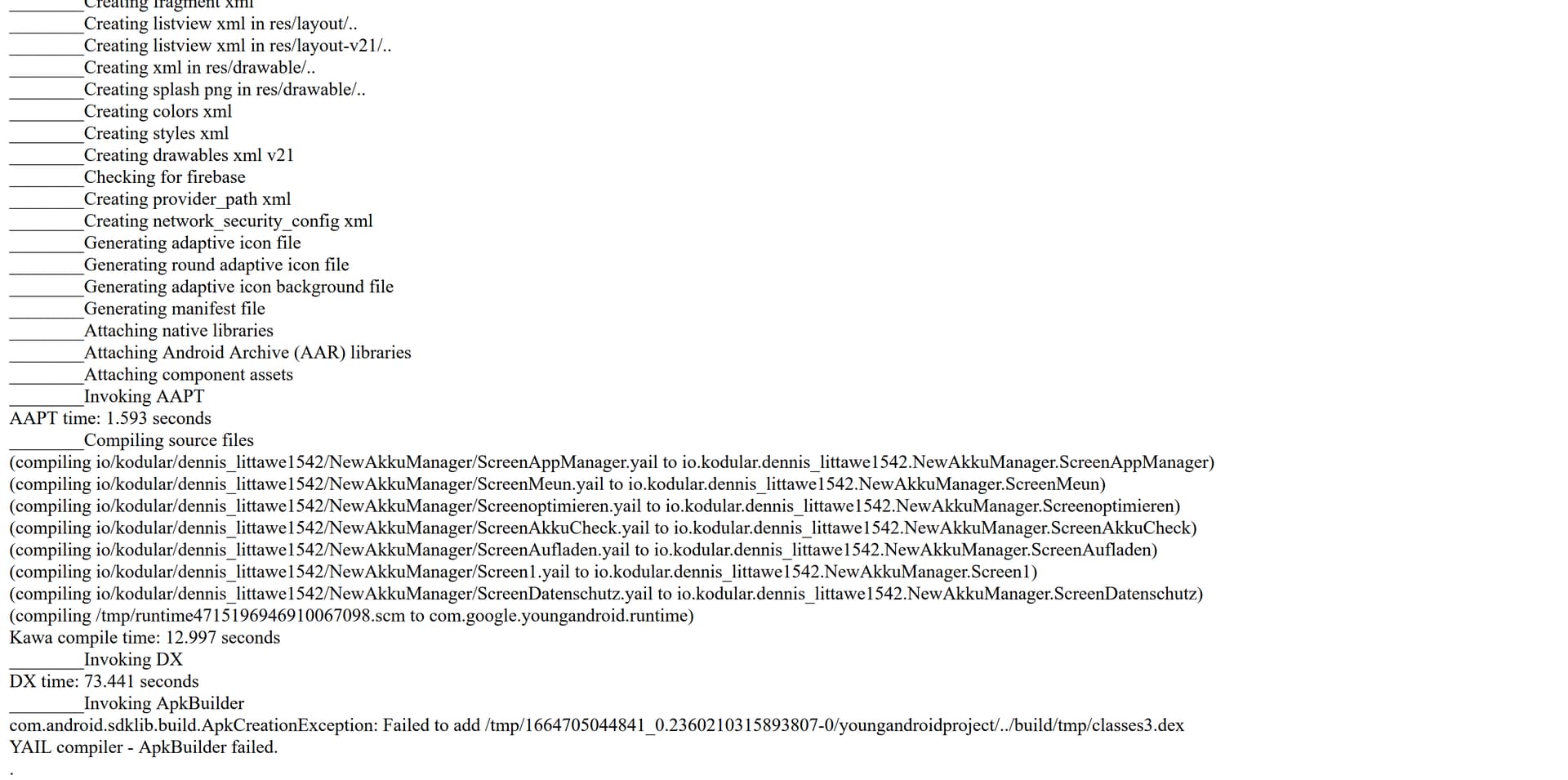

I can’t build the app with your extension

[Revaluation_Marketing]

Your paypal link isn’t working

[vknow360 (Sunny Gupta)]

Please try again.

Pay Premwati Gupta using PayPal.Me

[RAJBIR_SINGH]

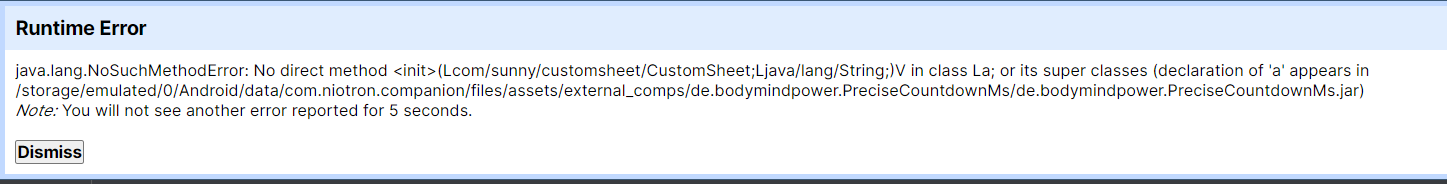

it shows this error…

[vknow360 (Sunny Gupta)]

Reload creator and then reconnect.
