Dynamic Shopping Item Cards Template

Hello Everyone…
So I have made a JSON template to use with Dynamic Components Extension from @yusufcihan to create shopping item cards. But it is not bound with shopping apps only, You can edit this template to create more dynamic and innovative designs.

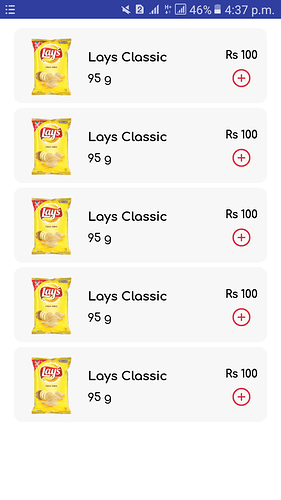

A preview of the cards created with the template

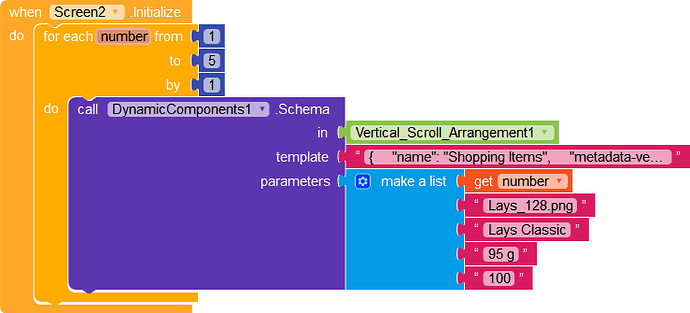

How to use this template

Here I am using predefined Values like Images, title, quantity, price, etc but you can customize it according to your needs.

Parameters :
1- The first parameter is number. It is used to create a unique id for each item. For further details about Ids, open the JSON file, and explore it.
2- The second parameter is the image. I am using an image from assets, but you can also load it dynamically using the Image utility Component. Or you can use this extension (Extension is recommended): [FREE] Image Loader - Extension for image loading and caching
3- The third parameter is the Title of the Item.
4- The forth parameter is the quantity of the item.
5- The last parameter is the price of the item. The price is being set to Rs but you can change it in the JSON template.

For further info on how to create JSON Templates and use them in your projects, Visit this link


Assets you need to upload

  1. Comforta Bold Font
  2. Comforta Medium Font
  3. Add Item Image

Download Comforta Font Family: Google Fonts
Download Image: add.png - Google Drive
Download Json Template : Users.json - Google Drive Link goes offsite

Schema:

{
"name": "Shopping Items",
"metadata-version": 1,
"author": "Zain Ul Hassan",
"platforms": [
    "Kodular"
],
"keys": [
   "number",
   "item-image",
   "item-name",
   "item-quantity",
   "item-price"
],

"components": [
    {
        "id" : "Item-Cards_{number}",
        "type" : "MakeroidCardView",
        "properties" : {
            "WidthPercent" : 90,
            "HeightPercent" : 15,
            "ContentPaddingTop" : 10,
            "ContentPaddingBottom" : 10,
            "ContentPaddingRight" : 10,
            "ContentPaddingLeft" : 10,
            "BackgroundColor" : -526345,
            "AlignVertical" : 2,
            "AlignHorizontal" : 3,
            "FullClickable" : true,
            "Elevation" : 0,
            "CornerRadius" : 10
            },
        "components" : [
            {
                "id" : "Items-HA_{number}",
                "type" : "HorizontalArrangement",
                "properties" : {
                    "AlignVertical" : 2,
                    "AlignHorizontal" : 3,
                    "Width" : -2,
                    "Height" : -2
                    },

                "components" : [
                    {
                        "id" : "Item-Image_{number}",
                        "type" : "Image",
                        "properties" : {
                            "Picture" : "{item-image}"
                        }
                    },

                    {
                        "id" : "Item-SpcaeOne_{number}",
                        "type" : "SpaceView",
                        "properties" : {
                            "Height" : -2,
                            "WidthPercent" : 2
                        }
                    },

                    {
                        "id" : "Item-VAOne_{number}",
                        "type" : "VerticalArrangement",
                        "properties" : {
                            "Width" : -2,
                            "Height" : -2,
                            "AlignVertical" : 2
                            },
                        "components" : [
                            {
                                "id" : "Item-TitleLabel_{number}",
                                "type" : "Label",
                                "properties" : {
                                    "FontSize" : 16,
                                    "FontTypefaceImport" : "Comfortaa-Bold.ttf",
                                    "Text" : "{item-name}"
                                }
                            },

                            {
                                "id" : "Item-QuantityLabel_{number}",
                                "type" : "Label",
                                "properties" : {
                                    "FontSize" : 14,
                                    "FontTypefaceImport" : "Comfortaa-Medium.ttf",
                                    "Text" : "{item-quantity}"
                                }
                            }
                        ]
                    },

                    {
                        "id" : "Item-VATwo_{number}",
                        "type" : "VerticalArrangement",
                        "properties" : {
                            "Width" : -1,
                            "Height" : -2,
                            "AlignVertical" : 2,
                            "AlignHorizontal" : 3
                            },
                        "components" : [
                            {
                                "id" : "Item-PriceLabel_{number}",
                                "type" : "Label",
                                "properties" : {
                                    "FontSize" : 14,
                                    "FontTypefaceImport" : "Comfortaa-Bold.ttf",
                                    "Text" : "Rs {item-price}"
                                }
                            },

                            {
                                "id" : "Item-SpcaeTwo_{number}",
                                "type" : "SpaceView",
                                "properties" : {
                                    "Width" : -2,
                                    "HeightPercent" : 1
                                }
                            },

                            {
                                "id" : "Button-Image_{number}",
                                "type" : "Image",
                                "properties" : {
                                    "Picture" : "add.png"
                                }
                            }

                        ]
                    }
                ]
            }
        ]
    },

    {
        "id" : "Item-SpcaeThree_{number}",
        "type" : "SpaceView",
        "properties" : {
            "Width" : -2,
            "HeightPercent" : 1
        }
    }
]

}

Was the guide helpful?? Make sure to share your thoughts about it.

25 Likes

A suggestion: show the Schema. :+1:

1 Like

You mean the JSON File?? I have added the link to download file

1 Like

Okay. Sorry I hadn’t seen it. But perhaps showing, it will enrich your guide. :+1:

1 Like

An other helpful guide… Thanku for sharing… :relaxed:Keep up the good work

1 Like

Nice…:v:

2 Likes

Guess I didn’t need to help writing the schema. Finally someone knows this! By the way, good template :+1:

1 Like

With Dynamic Components

3 Likes

Can you please help me with this arrangement, from basics please? how you designed this using dynamic components? Specially the select weight dropdown (spinner) if it is dynamic…
Thanks in advance

Nice Guide !! :+1: :+1:

1 Like

Yes it’s dynamic using dynamic component extension

I added “Clickable” : true to Image in JSON still whole card is clickable. How to make button clickable in top of card as clickable?

2 Likes

Is your json schema working?
I think it is not

2 Likes

Yes its working. But latest version of extension have some bug. Try v2.0

1 Like

Just a suggestion

It will more better to show the blocks about increasing quantity

2 Likes

You can pm or dm me

all is good but let me know how button click event works in json template?

1 Like

How can I use a button created in a json template with the yusufcihan’s extension to modify variables in kodular?

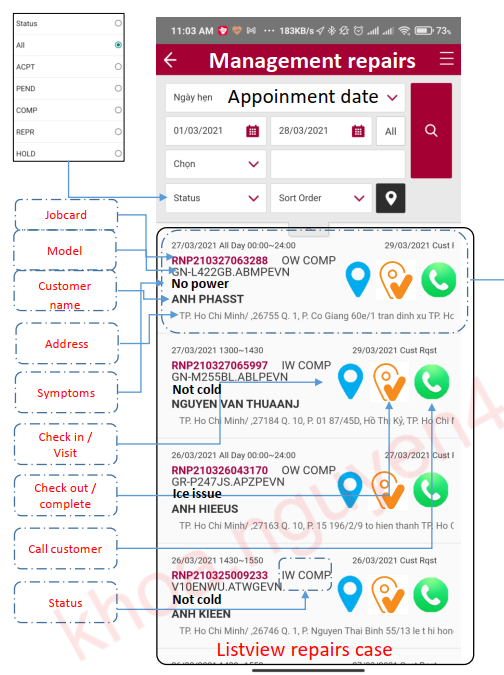

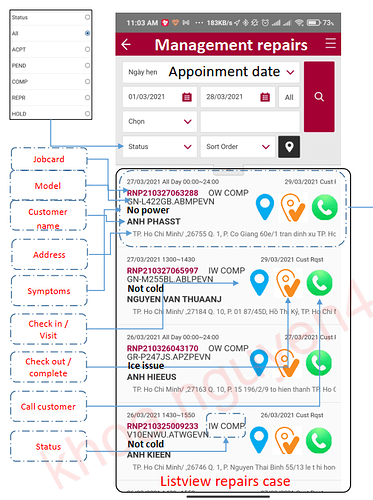

pls help me how to make json dynamic component as picture below .

Hola, me llamo Leo de Cuba, i almost finish an app for woocommerce commerce but i have daubt about to creat a dynamic spinner as a card view i dont know if is posible, i know the dynamic component but i dont know how to use it for spinner, id appreciate if can help :pray:t2:
