[Error]: Expected a unique ID, got 'list_layout1'.Please Guide,it wud be great help

[KartikeyMittal]

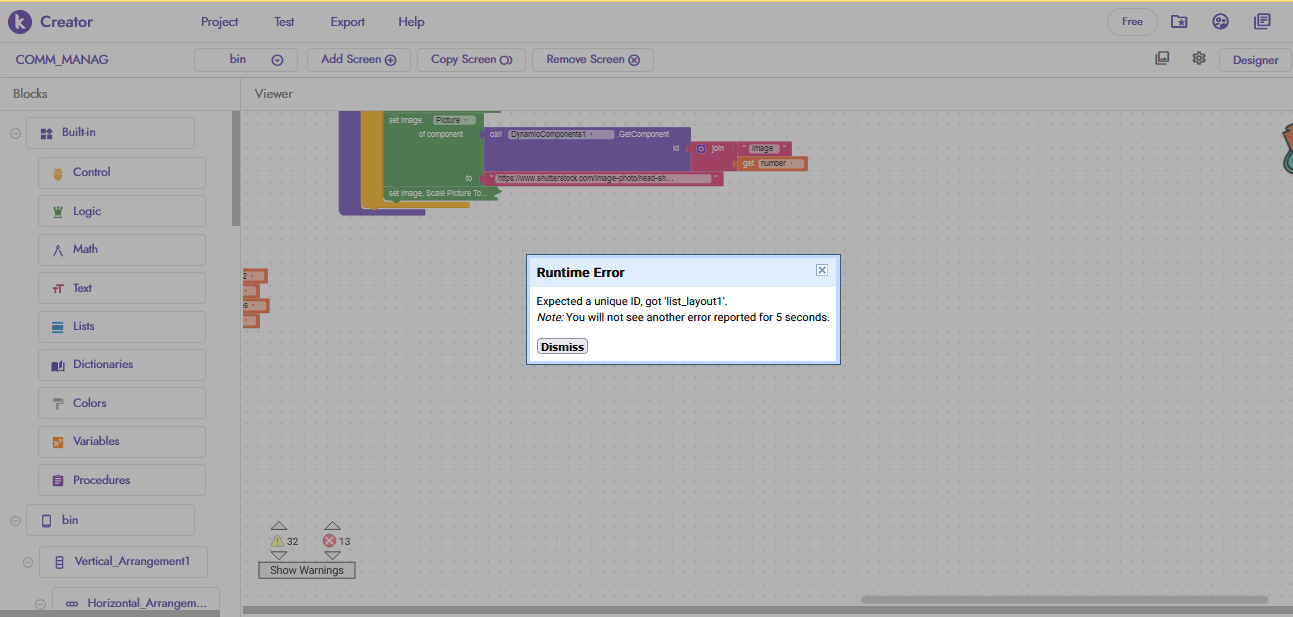

I’ve created custom list via dynamic components schema thats working fine but here the problem is I’m getting is error : Expected a unique ID, got ‘list_layout1’ upon start of creating dynamic compo.

Here are the schema:-

{
    "name": "COMM_MANAG",
    "metadata-version": 1,
    "extension_version": 5,
    "author": "<your name>",
    "platforms": [
        "creator.kodular.io"
    ],
    "keys": [
    "id",
    "image",
    "vid_txt",
    "line_ha",
    "vid_row",
    "vid_name",
    "vid_ph",
    "vid_meet",
    "line_ha_copy"


    ],
    "components": [
        {
            "id": "list_layout{id}",
            "type": "MakeroidCardView",
            "properties": {
                "AlignVertical": 2,
                "ContentPaddingBottom": 3,
                "ContentPaddingLeft": 3,
                "ContentPaddingRight": 3,
                "ContentPaddingTop": 3,
                "CornerRadius": 8,
                "FullClickable": true,
                "Height": 150,
                "Width": -2
            },
            "components": [
                {
                    "id": "outer_layout{id}",
                    "type": "HorizontalArrangement",
                    "properties": {
                        "AlignVertical": 2,
                        "Height": -2,
                        "Width": -2
                    },
                    "components": [
                        {
                            "id": "image_va{id}",
                            "type": "VerticalArrangement",
                            "properties": {
                                "AlignVertical": 2,
                                "Height": -2,
                                "Width": 100
                            },
                            "components": [
                                {
                                    "id": "Card_View1{id}",
                                    "type": "MakeroidCardView",
                                    "properties": {
                                        "AlignHorizontal": 3,
                                        "AlignVertical": 2,
                                        "BackgroundColor": 16777215,
                                        "ContentPaddingBottom": 0,
                                        "ContentPaddingLeft": 0,
                                        "ContentPaddingRight": 0,
                                        "ContentPaddingTop": 0,
                                        "CornerRadius": 100,
                                        "Height": 100,
                                        "Width": 100
                                    },
                                    "components": [
                                        {
                                            "id": "image{id}",
                                            "type": "Image",
                                            "properties": {
                                                "Height": -2,
                                                "Width": -2,
                                                "Picture": "{image}",
                                                "ScalePictureToFit": true
                                            }
                                        }
                                    ]
                                }
                            ]
                        },
                        {
                            "id": "info_va{id}",
                            "type": "VerticalArrangement",
                            "properties": {
                                "Height": -2,
                                "Width": -2
                            },
                            "components": [
                                {
                                    "id": "vid_ha{id}",
                                    "type": "HorizontalArrangement",
                                    "properties": {
                                        "AlignHorizontal": 2,
                                        "Width": -2
                                    },
                                    "components": [
                                        {
                                            "id": "vid_txt{id}",
                                            "type": "Label",
                                            "properties": {
                                                "BackgroundColor": 4279046693,
                                                "FontBold": true,
                                                "FontSize": 25,
                                                "FontTypefaceImport": "Poppins-Medium.ttf",
                                                "Text": " # {vid_txt} ",
                                                "TextColor": 4286499482
                                            }
                                        }
                                    ]
                                },
                                {
                                    "id": "line_ha{id}",
                                    "type": "HorizontalArrangement",
                                    "properties": {
                                        "BackgroundColor": 4293848814,
                                        "Height": 2,
                                        "Width": -1025
                                    }
                                },
                                {
                                    "id": "vid_row{id}",
                                    "type": "Label",
                                    "properties": {
                                        "FontSize": 18,
                                        "FontTypefaceImport": "Poppins-Medium.ttf",
                                        "Height": 24,
                                        "Text": "{vid_row}",
                                        "Visible" : false,
                                        "TextColor": 4268582502

                                    }
                                },
                                {
                                    "id": "vid_name{id}",
                                    "type": "Label",
                                    "properties": {
                                        "FontSize": 18,
                                        "FontTypefaceImport": "Poppins-Medium.ttf",
                                        "Height": 24,
                                        "Text": "{vid_name}",
                                        "TextColor": 4268582502
                                    }
                                },
                                {
                                    "id": "vid_ph{id}",
                                    "type": "Label",
                                    "properties": {
                                        "FontItalic": true,
                                        "FontSize": 14,
                                        "Text": "PH. {vid_ph}",
                                        "TextColor": 4267662428
                                    }
                                },
                                {
                                    "id": "vid_meet{id}",
                                    "type": "Label",
                                    "properties": {
                                        "BackgroundColor": 4294896187,
                                        "FontItalic": true,
                                        "FontSize": 15,
                                        "FontTypefaceImport": "Poppins-Medium.ttf",
                                        "Text": " {vid_meet} ",
                                        "TextColor": 4279046693
                                    }
                                },
                                {
                                    "id": "line_ha_copy{id}",
                                    "type": "HorizontalArrangement",
                                    "properties": {
                                        "BackgroundColor": 4293848814,
                                        "Height": 2,
                                        "Width": -1025
                                    }
                                }
                            ]
                        }
                    ]
                }
            ]
        }
    ]
}

I’d already viewed many topics regarding same but can’t solve.

[KartikeyMittal]

Anyone from community could please help regard same?? It would be a very great help

[Gaston (zodiaclogic)]

the schema looks good, surely you are trying to reload the function and the id is repeated, you must increase that ID value or remove the elements created previously.

[Gaston (zodiaclogic)]

I think the green blocks are to spare, you can do it from the same json

[KartikeyMittal]

I tried the same but actually some property of elements is not working if I even set in JSON like background color,txtcolor,font,etc thus made these green blocks…Although I think the problem is from main card i.e “list_layout{id}”

could you guide why the error is coming for “list_layout1”?

[Gaston (zodiaclogic)]

“list_layout{id}” is the first of the errors, it will happen with all the following.

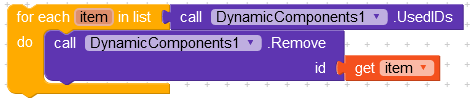

before executing “custom_list” or at the beginning, place the following block, it will eliminate all the elements previously created, that is, it will delete the list, and if not you should use a variable to store and increment the values ​​for the IDs

[Gaston (zodiaclogic)]

to assign colors inside the json you have to use negative decimal values ​​(-164582)… there are many options to convert hexadecimal

[KartikeyMittal]

Ohh,it is working fine now!!
Thanks a lot for your help!!!
