Phone keyboard overlap app screen

Discuss
21

keyboard_A15K.aia (7.0 KB)

23

can i say its a temporary solution until @Diego side fix the update bug?
btw, i will try out this when i have time :folded_hands:

24
25

so have to use keyboardheight extension that can overcome keyboard overlap issue?
but do you mind to share the keyboardheight extension please?

UPDATE:
tested your apk file, can work on both android 11 and 15 :clap:

26
27

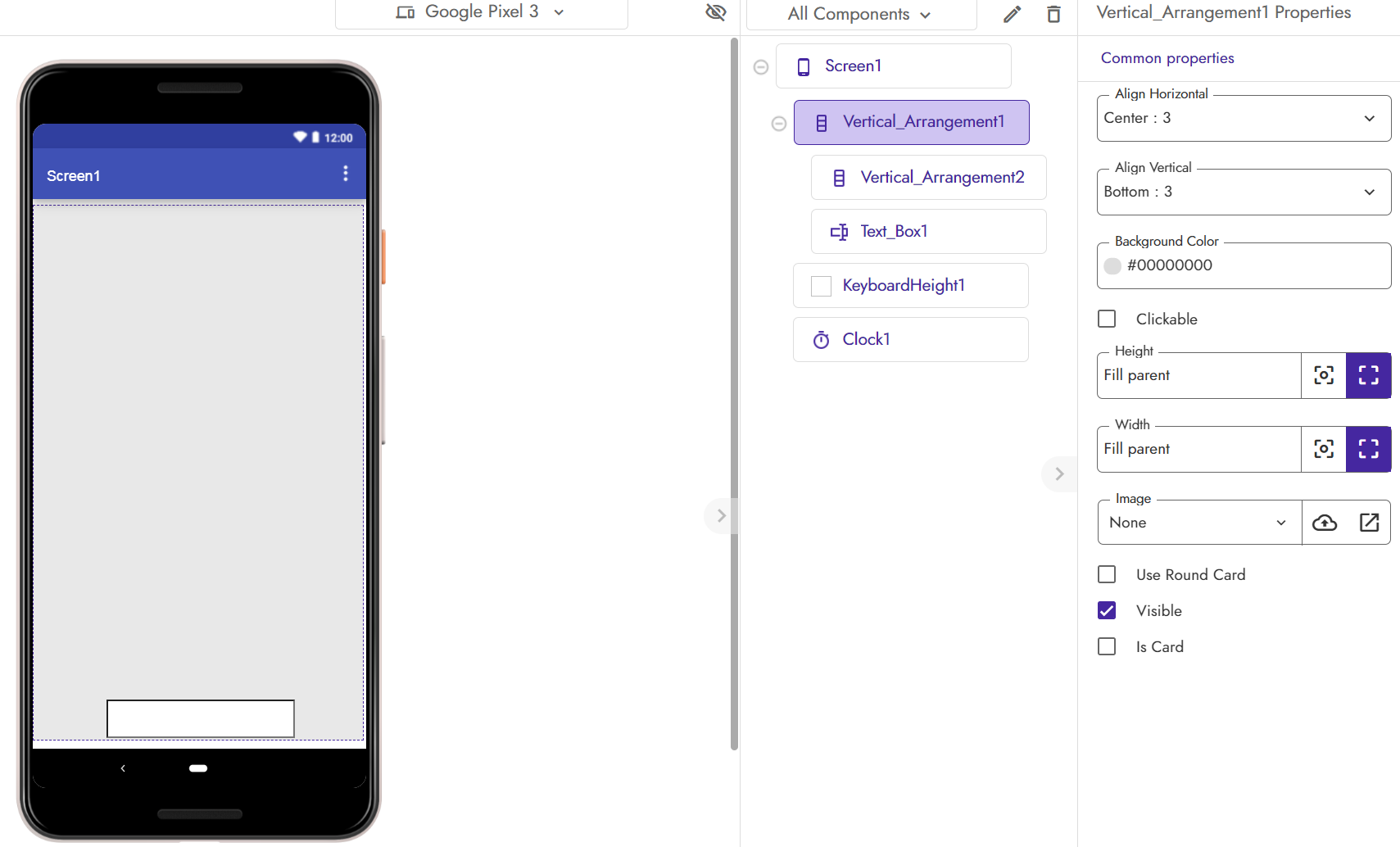

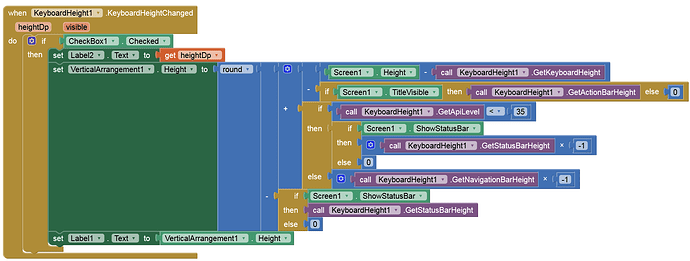

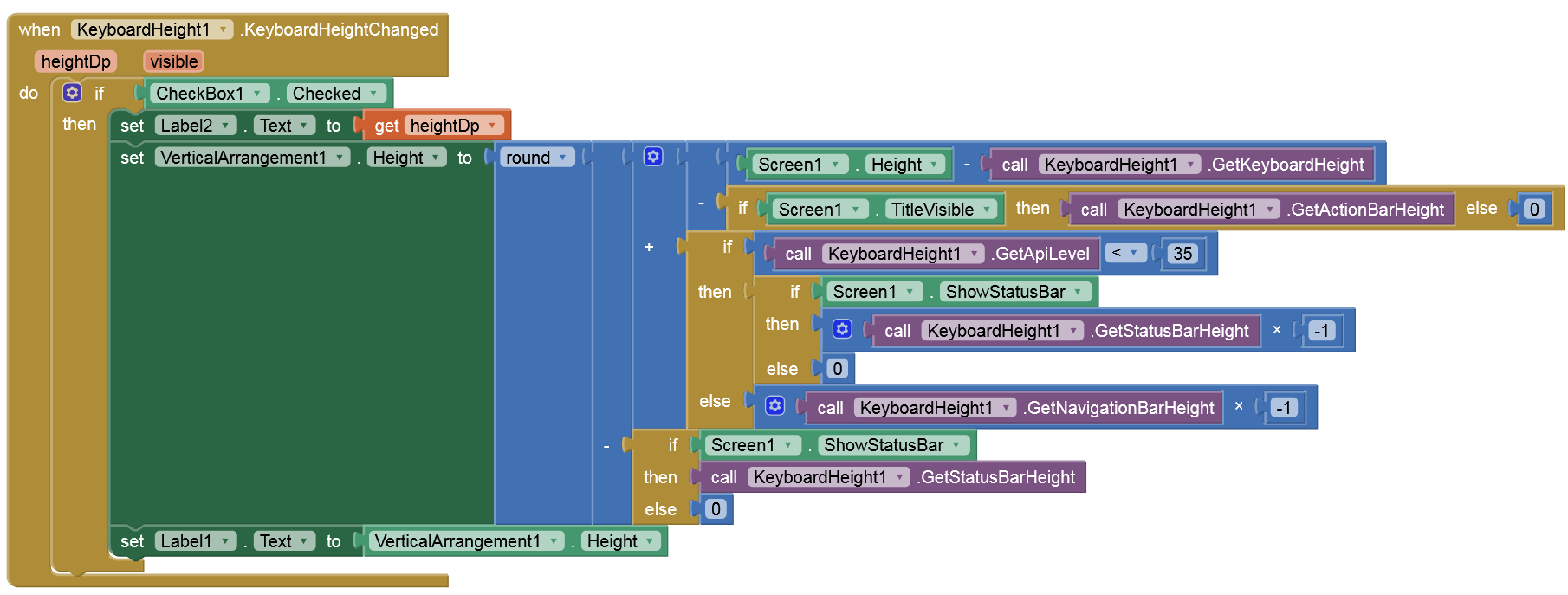

Check out my blocks (of my test app) with Kodular and report back…

grafik
grafik1810×687 69.4 KB

28

hi @bodymindpower

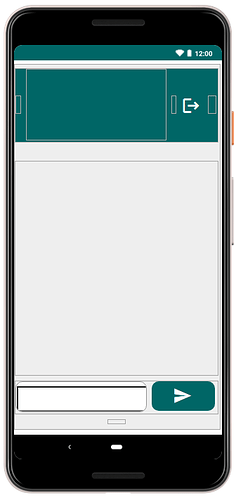

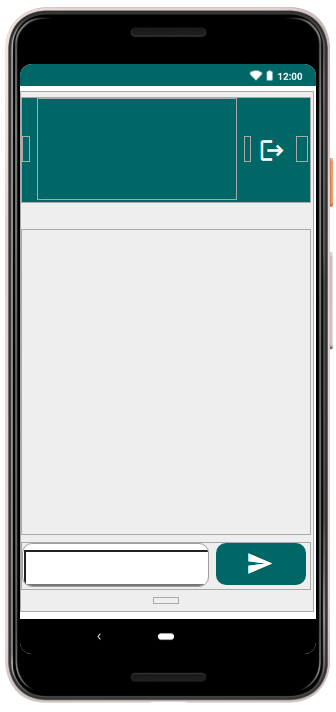

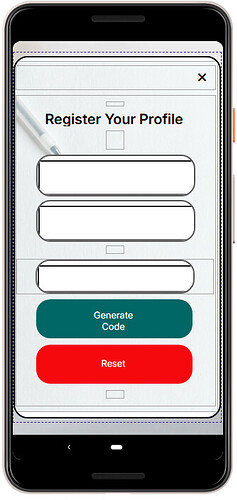

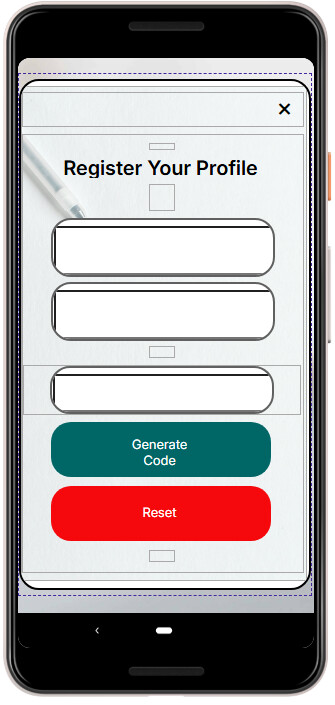

below are my few screens that need to use keyboard, and i’m not sure how my designs and arrangements can work with your above blocks.
and with your keyboardheight extension i tested that similar with yours, it seems cannot work as well.
please help :folded_hands:

336×712 17.1 KB

333×712 29.1 KB

335×705 52.7 KB

meanwhile has this keyboard overlapped issues been solved for android 15 and above? @Diego
maybe i have been missed out :folded_hands:

29

I think you should probably attach your screenshot of blocks

30

hi @Diego,

is there any chance about fixing edge-to-edge issue, if this is the root cause?
yes, only happening on Android 15 or higher.

31

Post your aia or send it to me via PM.

32

PM-ed you :folded_hands:

33

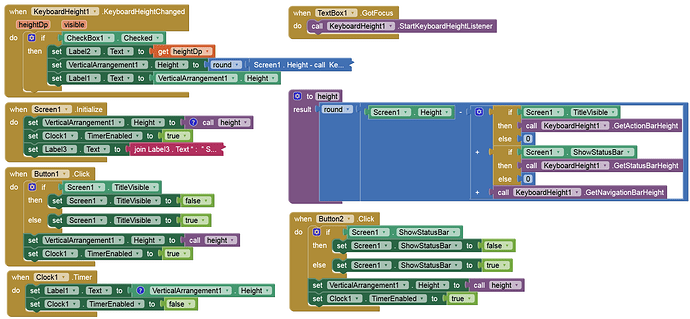

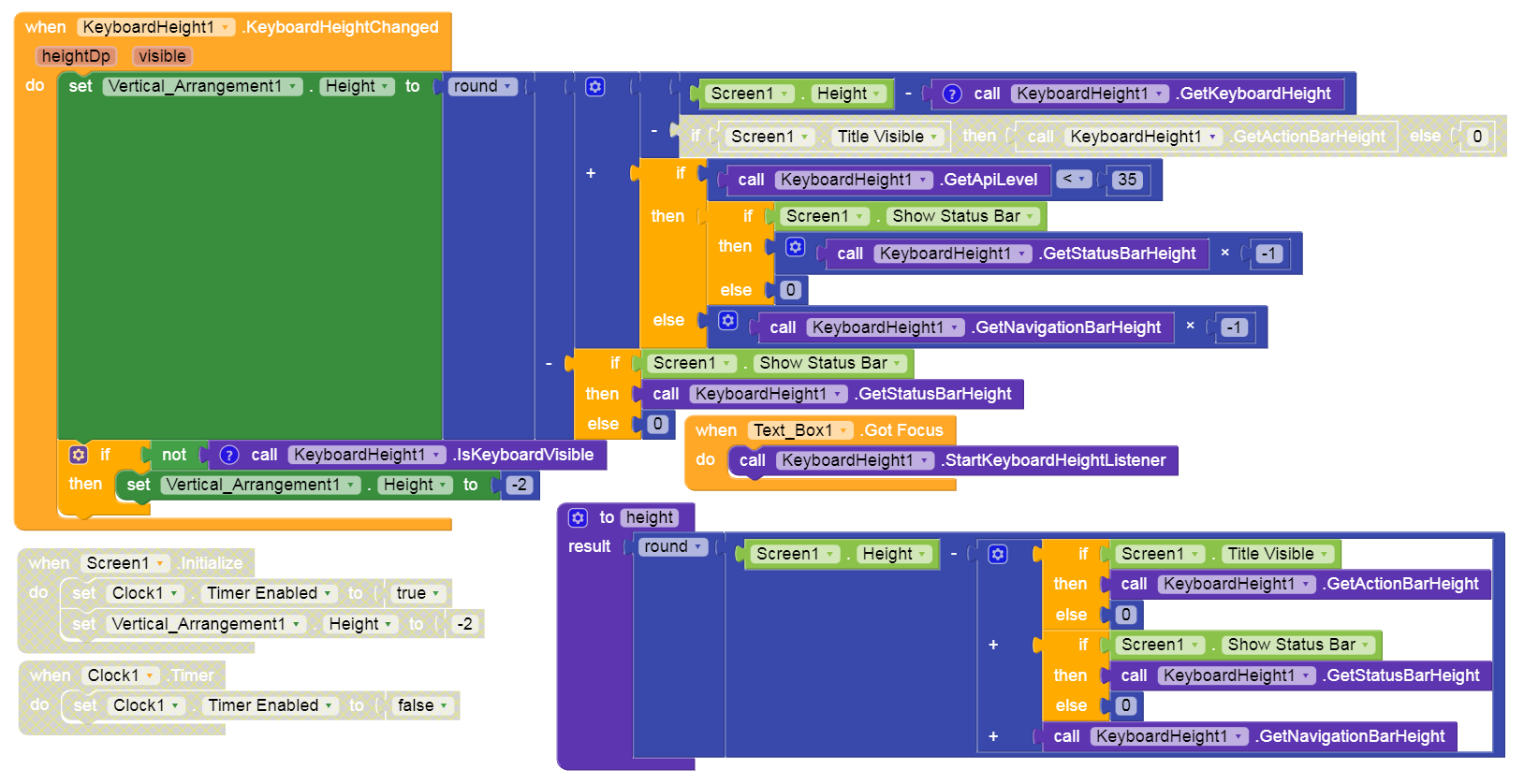

I removed VA2 (visible=false), disabled the timer and did a small adjustments in the blocks. Works fine on my Android 16 test device.

grafik
grafik1628×838 158 KB

grafik
grafik1709×1034 97.4 KB

1 Like
34

Hey everyone! :waving_hand:
I found the solution to the issue where the screen doesn’t scroll when a TextBox is focused on Android 13 and above.

Just add this line in your AndroidManifest.xml for your activity:

<activity
    android:name=".MainActivity"
    android:windowSoftInputMode="adjustResize|stateHidden" />

:white_check_mark: This ensures your layout resizes properly when the keyboard opens.
this might help the Kodular team and others facing the same problem. :rocket:

1 Like
35

hi @AyanDeveloper,
thank you for pointing out the solution and this one need to be done using Android Studio?

1 Like
36

Apk editor

37

In Fast CLI extension builder, there’s options of AndroidManifest, also Kodular creator provide another AndroidManifest.

Request to you @AyanDeveloper since it’s your idea, can you create a simple extension that will contains this function automatically without extract the apk file?

In my experience the AndroidManifest from default (By Kodular) they all merged into single file with any other AndroidManifest from extension’s

It’s possible?

1 Like
38

currently I don’t use Kodular , and I don’t make extensions now. I build my apps directly in Android Studio.

But yes, you can create a simple extension in Rush CLI (Fast CLI builder) that includes a manifest snippet like this:

<manifest xmlns:android="http://schemas.android.com/apk/res/android">
    <application>
        <activity
            android:name="com.google.appinventor.components.runtime.Form"
            android:windowSoftInputMode="adjustResize|stateHidden" />
    </application>
</manifest>

This should automatically apply the setting to all activities when the manifests are merged during the build process.

2 Likes
39

I will give it a try

Thanks

1 Like
40

com.ayan.keyboardfix.aix (3.9 KB)

Maybe it will work — I haven’t tested it yet. I’ll test it tomorrow morning when I have a device with Android 14.

3 Likes
41

Thank again

@Mike_Chan can you test the aix in your project, remember to backup your project before importing the extension

1 Like
