Hi all! ,

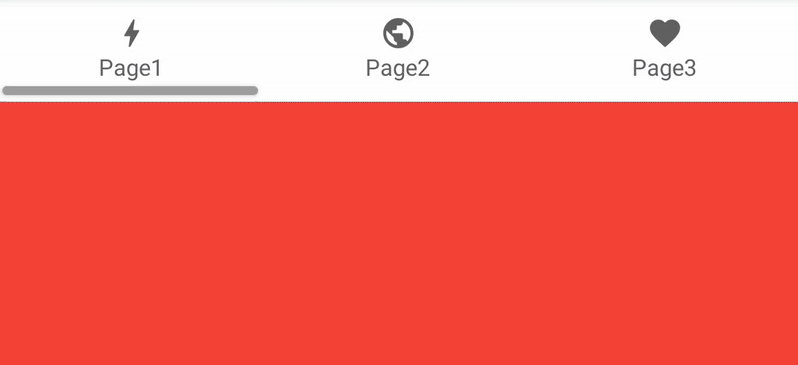

Today I want to share with you a way to create a custom view pager.

We will start with an example using only native components, and then with Dynamic Component (very simple and easy to use).

Native components

Layout

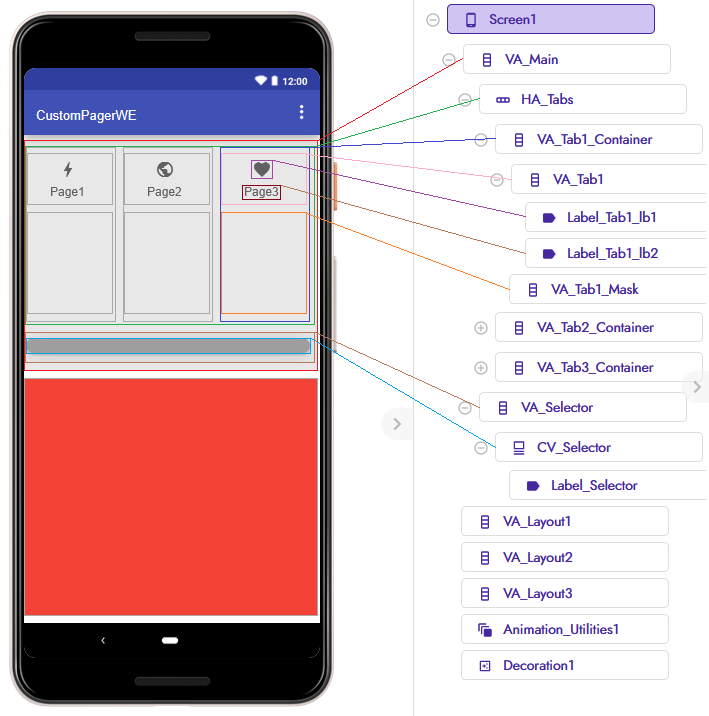

Let’s start by explaining the layout and what each component does.

• VA_Main (VerticalArrangement) will be our main container for all layouts it will actually be the ViewPager.
• HA_Tabs (HorizontalArrangement) will contain the various tabs (VA_Tab_Container).
• VA_Selector is the container for our selector bar.

Each tab (container) will consist of:

• VA_Tab_Container
  • VA_Tab
    • Label_Tab_lb1
    • Label_Tab_lb2
  • VA_Tab_Mask

VA_Tab_Container contains VA_Tab and VA_Tab_Mask which will overlays VA_Tab to make it fully clickable.

• VA_Tab holds images, labels, Lottie animations, or any other components we want, and it will be the actual tab.
• VA_Tab_Mask is a transparent layout on top, allowing us to use it as the .Click target.

Then we’ll have three VA_Layout components corresponding to the number of tabs created.
They will be displayed when a tab is clicked.

And finally Animation_Utilities + Decoration components.

---

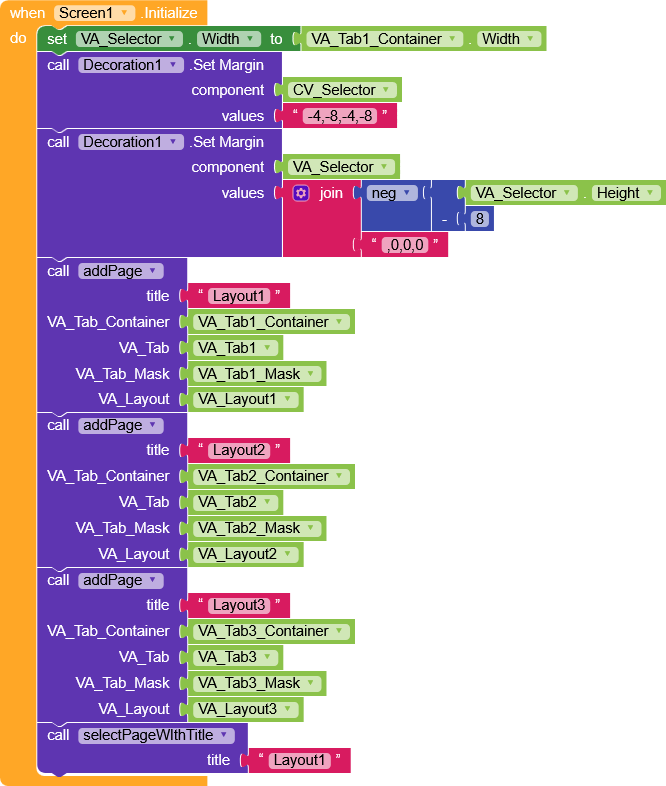

Screen1.Initialize

• Initialize the screen by setting VA_Selector to the width of the first tab element
• Apply negative margins to CV_Selector to reduce the occupied space
• Apply negative margins to VA_Selector so it overlaps HA_Tabs
• Call the addPage function with parameters: title, VA_Tab, VA_Tab_Mask, VA_Tab_Container, and VA_Layout
• Select the first layout by calling selectPageWithTitle(Layout1)

---

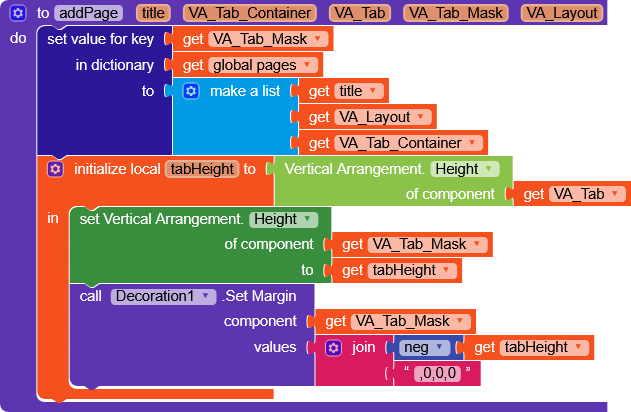

addPage

• This function saves a dictionary with VA_Tab_Mask as the key and a list of parameters (we’ll need later).
• Create a variable tabHeight containing the height of VA_Tab and set it to VA_Tab_Mask.Height, then apply a negative margin so it perfectly covers VA_Tab.

---

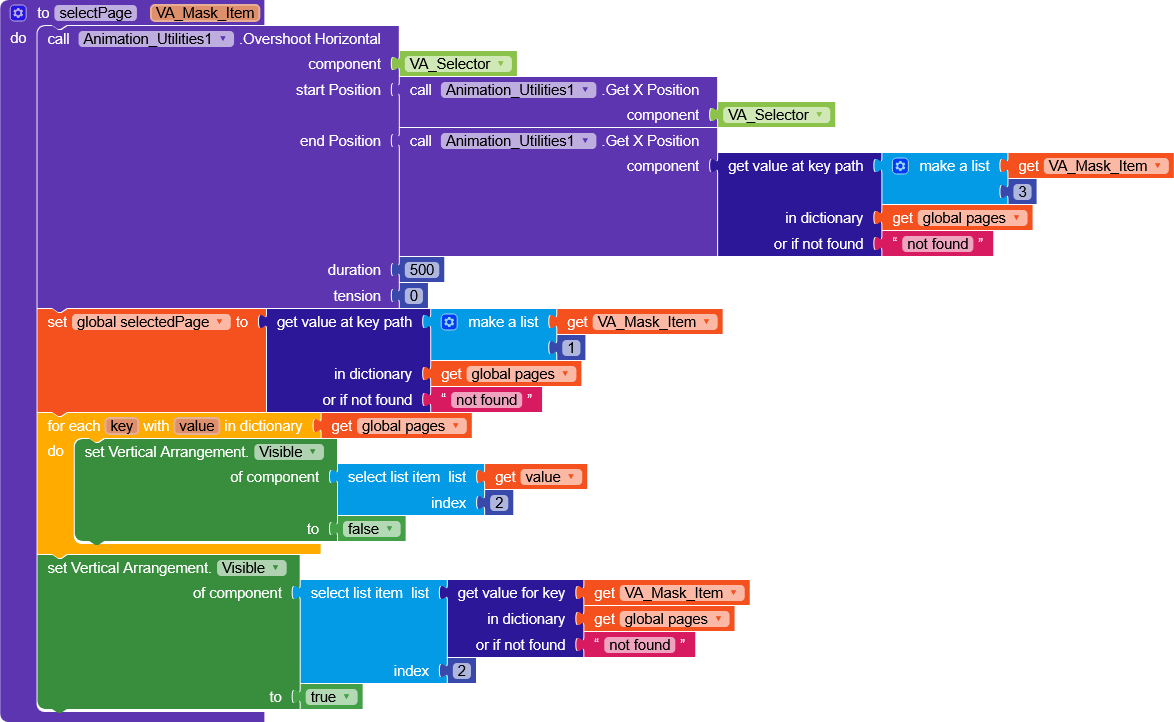

selectPage

• Using OvershootHorizontal, move VA_Selector horizontally from its current X position to the X of VA_Tab_Container
• You can choose any animation style and adjust parameters like duration and tension, or even use an extension for advanced effects (e.g., Phase Animations Made Easy)
• Retrieve the title from the pages dictionary and set selectedPage to always know which page is active
• Hide all VA_Layout components and only show the correct one.
  If we want, Instead of hiding the layouts we could connect a real ViewPager with hidden tabs to also enable left and right swipe .

---

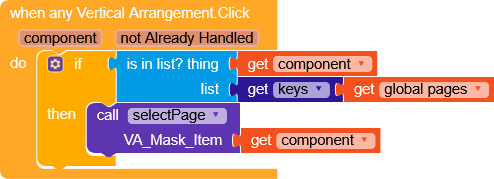

whenAnyVerticalArrangement.Click

• Checks if the clicked VA is a key in pages (remember, keys are always VA_Tab_Mask)
• Calls selectPage(clickedComponent)

---

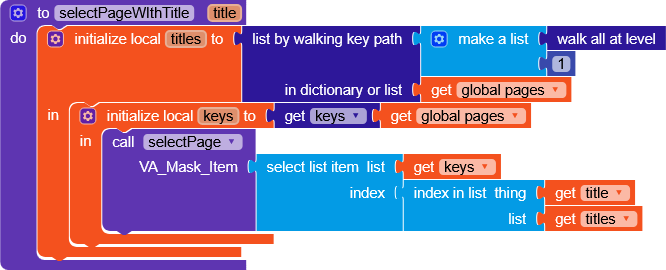

selectPageWithTitle

• Retrieves all titles in pages and saves them in titles
• Saves all keys from pages in keys
• Finds the index of the title and retrieves the corresponding key (VA_Tab_Mask component)

And that’s it!

AIA (Without extensions)

CustomPagerWE.aia (10.0 KB)

---

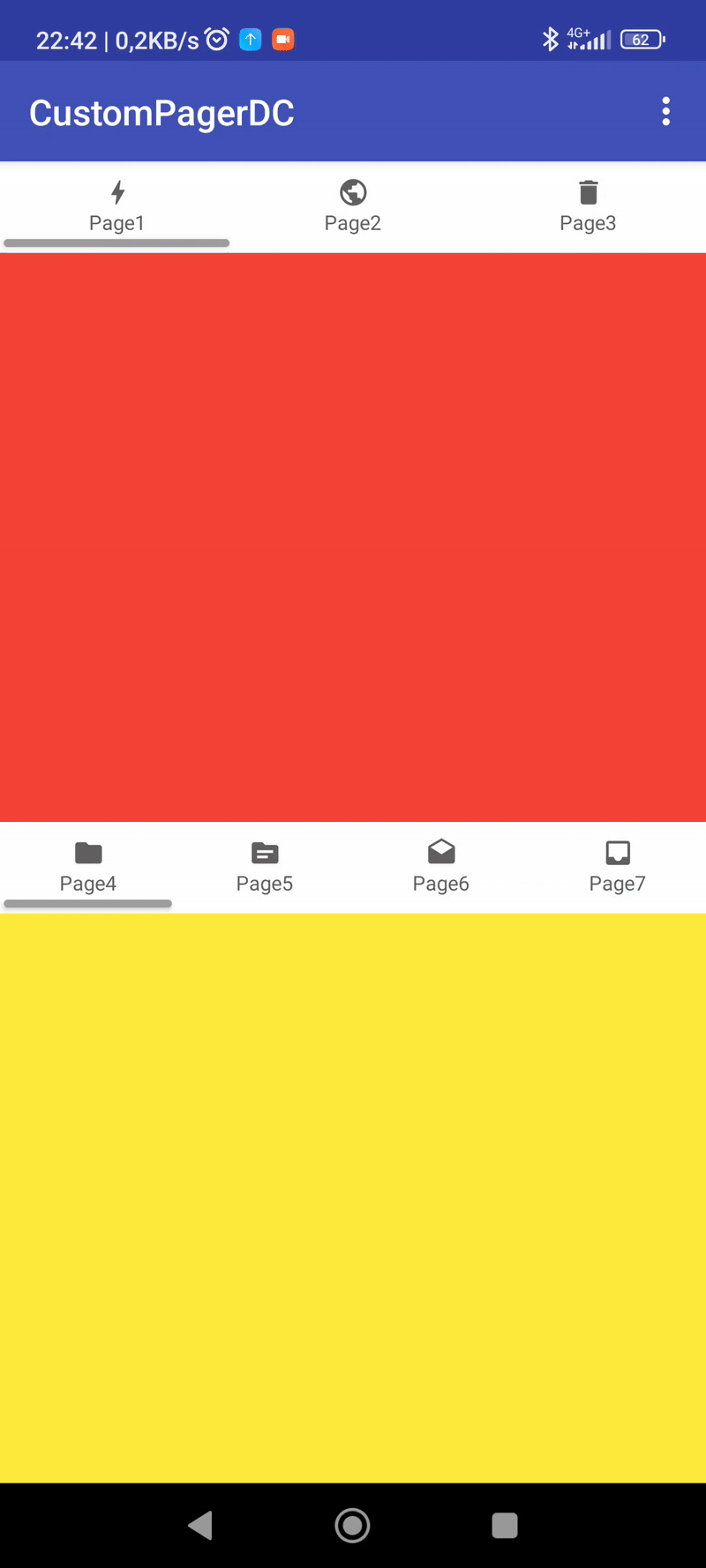

Dynamic Component

If you have the Dynamic Component extension, everything will be even easier.
Thanks to Dynamic Component, we can create a structure and have multiple tabs without needing to copy/create anything.

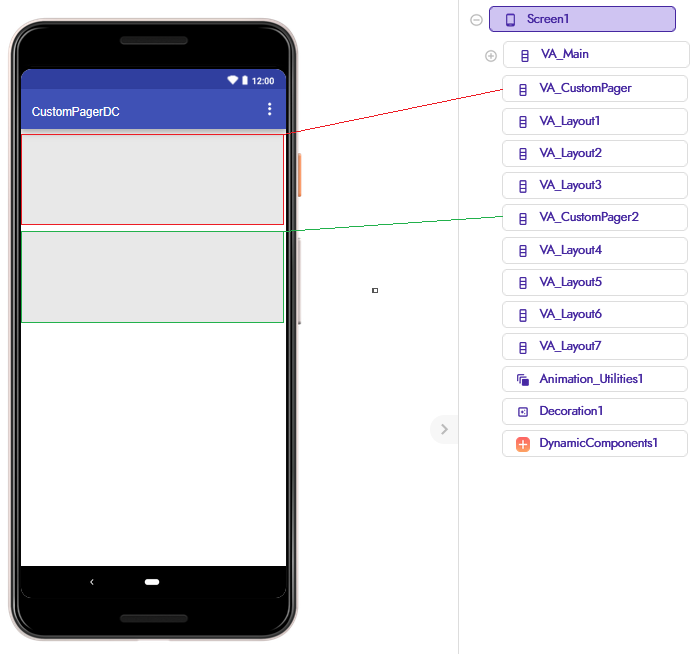

We’ll just need one arrangement to create the pager (useful only to see where it’s positioned in the Designer, can be dynamic) and to create the layouts to insert inside it (though these can also be dynamic elements, an inception of arrangements ).

I’m leaving a project without explanations because the logic is practically the same, just adapted to the dynamic functionality.

AIA (Dynamic components)

CustomPagerDC.aia (50.2 KB)

If anything is unclear, as always I am available to provide further explanations.
I avoided going into too much detail to prevent creating an overly long guide.

As with all the custom guides I’ve made, I remind you that we have full freedom to modify the layouts in any way we like, so don’t set any limits, if you have something specific in mind that you can’t manage to do, feel free to ask for help.

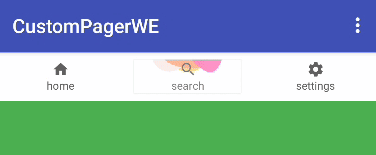

With a Lottie component

Happy oding!
