Custom List View

This extension allow you to create a custom list view with an Image, Title , Subtitle and a secondary text elements. It comes with a lot of features such as Drag and Drop and Swipe item with both sides. You can use extension to load images. You can customize the list view with designer properties.

Thanks @Henry for sponsoring the extension :blush:

Let see some blocks and their documentation.

All Blocks

There are 8 events, 17 method blocks and 28 set properties tht makes this list view fully customisable.

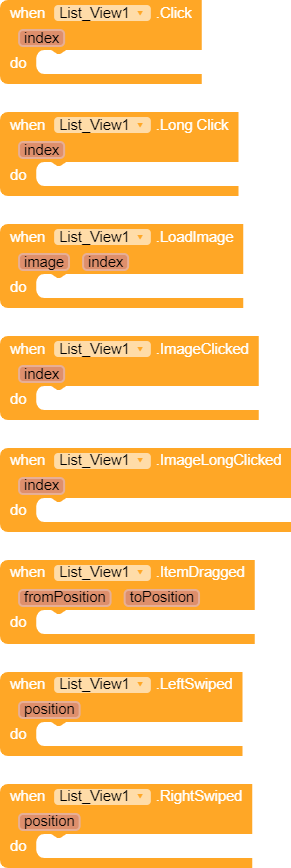

All Events

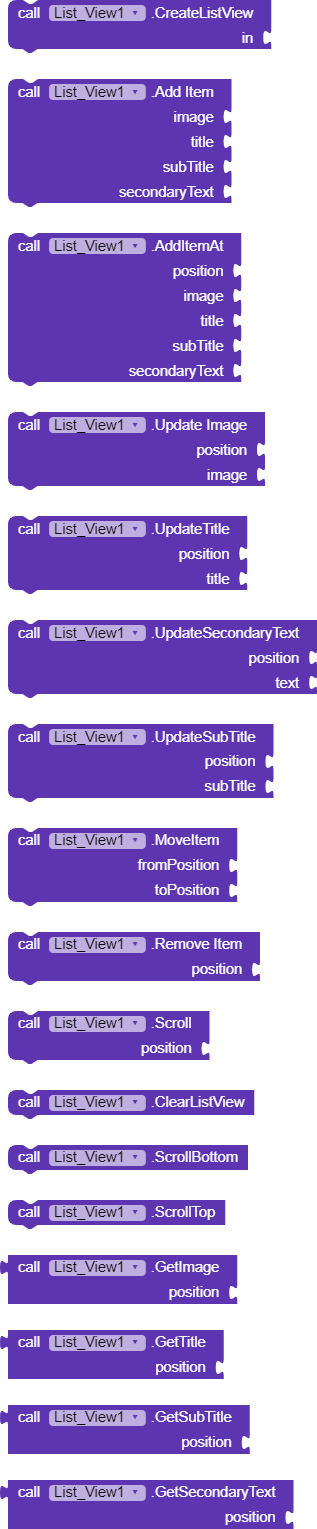

All Methods

All Designer Properties

Documentation

component_event (1)

This event raises when any item clicked with position of the clicked item.

component_event (2)

This event raises when any item long clicked with position of the clicked item.

component_event (3)

This event raises when your item’s image need to be loaded. You can use Image Utility component to load the image or some extension(not all).

component_event (4)

This event raises when item’s images is clicked with the position of the clicked image.

component_event (5)

This event raises when item’s image is long clicked with the position of the clicked image.

component_event (6)

As I said the list view have drag and drop feature. This event raises when an item is dragged to another place. It gives you two parameter fromPosition is the position from where the item has been dragged or toPosition where the item has been dragged(new position). You would need to enable the Draggable property for making able to drag your views.

component_event (7)

This event raises when the item is swiped to left side. It will give you the position of the item in parameter. You will need to enable the LeftSwipeAble property otherwise item would not be able to swiped.

component_event (8)

This event raises when the item is swiped to right side. It will give you the position of the item in parameter. You will need to enable the RightSwipeAble property otherwise item would not be able to swiped.

component_method (6)

This block create the list view to given container. If the list view is already added to any container then nothing will happen.

component_method (7)

This block add an item to the list view with title,subtitle, image and secondary text. They can be nullable.

component_method (8)

This block do the same above job but it add the item at given position.

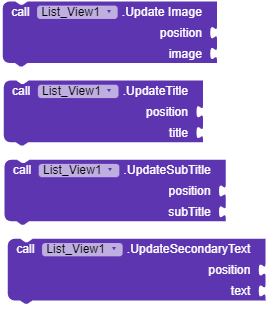

These block can be used to update the item with position.

component_method (10)

This block move the item to given position from given position. You will see an animation while item are switiching.

component_method (11)

This block removes the item from specific position. You will see here an animation too.

component_method (12)

This block removes all the items from list view.


These block are used to control scroll of list view.


These blocks helps you to get the item details from specific position.

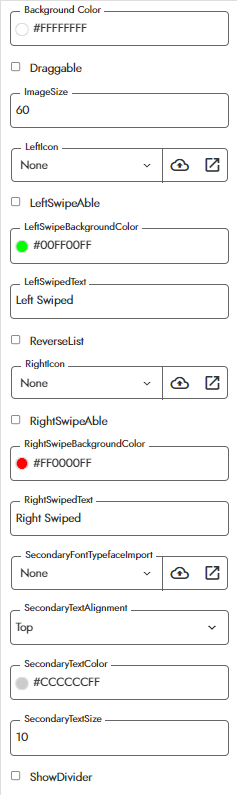

Set the item’s background color.


Set to true then item can be dragged. You need to control them by blocks then.


Set the size of item’s image. Default is 60.


Set the icon that will be shown when the item is swiped to left direction.


Set the text that will be shown when the item is swiped to left direction.


If set to true then the list will be reversed.


Set the icon that will be shown when the item is swiped to right direction.


Set the background color that will be shown when the item is swiped to left direction.


If set to true then item would be able to swipe in right direction.


Set the background color that will be shown when the item is swiped to right direction.


Set the text that will be shown when the item is swiped to right direction.


Set the custom font typeface of the secondary text of an item.


Set the vertical alignment of the secondary text of items.


Set the secondary text color of items.


Set the font size of the secondary text of items.


If set to true then a divider will be shown between items.

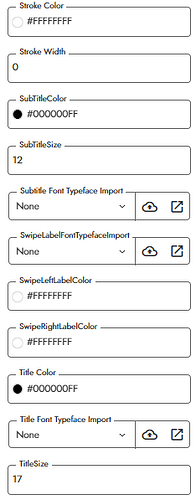

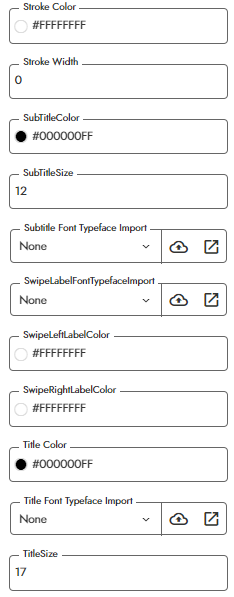

Set the stroke property of the item’s image view.


Set the subtitle property of the items


Set the custom font typeface of the label that will be shown when the view is swiped.


Set the text color of the labels that will be shown when the item is swiped.


Set the properties of the title of items.

Usage

Let see little usage so you can understand how to use it.

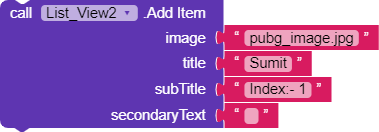

Adding an Item

blocks (19)

ItemAdd

Updating the item

blocks (20)

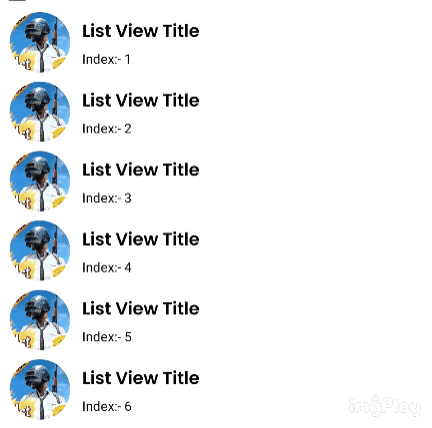

Moving the Item

blocks (21)

IMG_qhsr9o

Removing the Item

blocks (22)

Remove

Dragging Items

Make sure to check the Draggable property

blocks (23)

Enable Swiping of Items

Make sure to check the following properties.

blocks (24)

For enabling the swipe in left direction.

blocks (25)

For enabling the swipe in right direction.


We have set the icon on both sides.

Swipe Actions

How will you move or remove item while swiping or dragging.

blocks (26)

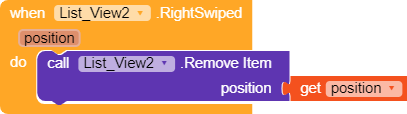

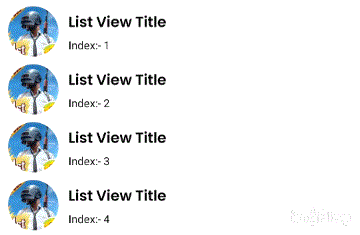

When the item will swiped right, we will remove that item by position.

IMG_w94gnd

blocks (27)

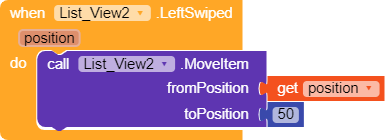

When the item is swiped in left direction, we will move the item to the top position.

IMG_94vg8d

blocks (28)

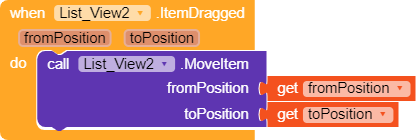

When the item is dragged we will move the item from it’s older place to it’s new place.

IMG_akqwqj

Loading Image

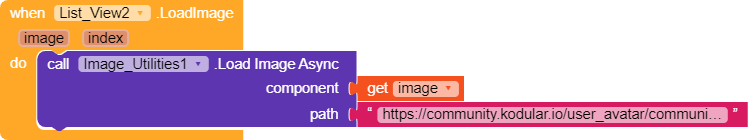

We can load the image by picasso extension by @vknow360 and can use Image Utility component to load the images.

However, if you uses picasso extension then you won’t get rounded circle image.

Download

Download AIX

Download the latest version of the extension here.

Donate

Credit

Thanks @Shreyash for the super powerfull Rush .

Worked very hard for this long extension so like the extension if you like it :+1:

Suggestion and issue are welcome

Thanks you
Sumit​:wink:

53 Likes

Your extension are always great ! :fire:

5 Likes

Epic work :star_struck:

5 Likes

Awesome work @Sumit1334

3 Likes

Amazing Extension :clap: :clap: :star_struck:

3 Likes

in a word, perfect :heart_eyes:

2 Likes

Brilliant, thank you!

2 Likes

Very good job, man:upside_down_face:

2 Likes

Extremely great extension, thanks alot :star_struck:, came right one time :sweat_smile: but unfourtunately its not working on app inventor :no_mouth:

I haven’t published the extension on AI2 yet. I think it would require some libs work then it should work on AI2. I will publish the extension soon. You should wait for it.

4 Likes

ListView changed a lot in MIT App Inventor and we are awaiting next releases to fix bugs

Read updated documentation for the ListView

2 Likes

Fortunately this is possible with upcoming release.

3 Likes

Great :fire::fire::fire:

Blow Your Mind Wow GIF by Product Hunt

4 Likes

Awesome work once again. Thanks. Are you planning to add search in listview to the extension?

Version 2

What’s New

  • Image will be loaded own in the extension with Universal Image loader library. But still you can use older method for loading images with extension and Image utility component

  • Divider Color property has been added now

  • Divider Height is also added.

  • You can set background color of specific item with position.

  • You can set margin and paddings of specific item with position.

  • You can customise the divider for specific position.

Bug Fixes

  • Divider was not seeing on items that is now fixed.

Changes

  • Extension has renamed to CustomListView from ListView as it was causing error while dragging the list view component. It may break your whole blocks. So kindly make a backup of the older project please. It was necesary to change the extension name.

  • Extension has increased from 40kb to 130kb due to extra features and own image loading libary.

  • LoadImage event would only occurred when LoadImage property is not enabed.

Blocks Added

component_method (6)

Set the background color of the specific item with position.

component_method (7)

Set the divider properties of the specific item with position.leftMargin and rightMargin are deprecated currently. It would not work in all cases.

component_method (8)

Set the margin of the item for specific item with position. margins parameter accepts a string that contains four values joined by commas. For ex, 2,4,7,5 .

component_method (9)

Set the padding of the item for specific item with position. paddings parameter accepts a string that contains four values joined by commas. For ex, 2,4,7,5 .

Properties Added


Updated Extension

Download AIX

Kindly update the extension in order to get latest features. But make sure to read above changes closely please.

Thanks @clellisroccs for their suggestions.
Thanks @Henry for your donation :smiley:

Thank you all for using my extension. Download link got 60 clicks in only 2 days of publication. Very happy to see this. I hope you’re enjoying the extension 🥲

Thank you
Sumit​:wink:

7 Likes

No. I think you should go with custom search bar as you can modify and make it according to your needs.
Many guides are available for making search bar. You should search on community.
One is here
