Hi everyone ,

Today I want to share with you a method to implement Lazy loading / Infinite Scroll.

First of all, I’d like to thank @Bharathirajan_k who asked this question in the community,

How to set blocks Pagination scroll logic

Pagination scroll logic setup blocks give me for load airtable images 1st load 6 image and scroll load next 6 and scroll load next 6…

and @Ibrahim_Jamar

How to set blocks Pagination scroll logic

@RaYzZz am here too I want that function too, so if you can do something count me in

fueling my desire for knowledge

And big thanks to
@The_K_Studio for Async Image Loader and @zainulhassan for Image Scale Type and Recycler List

---

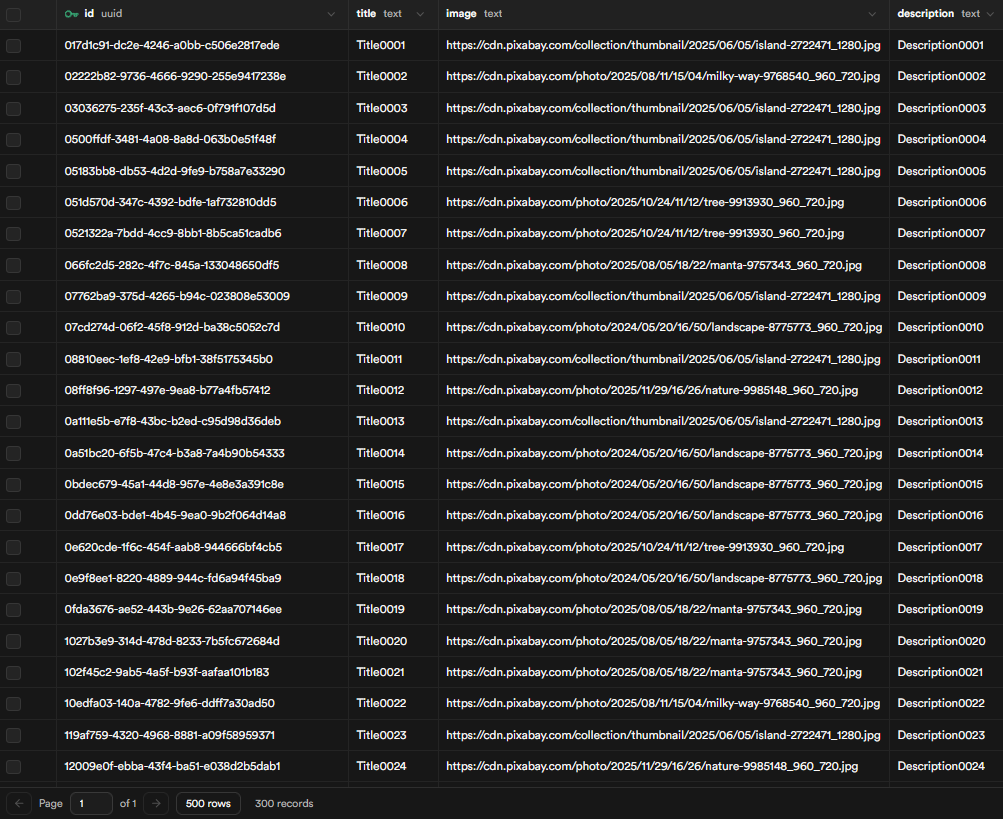

In this example I used Supabase with this structure,

@RaYzZz

But any other database that allows downloading data in defined ranges can be used

Google Sheets is a valid alternative that can be used as well, we’ll see how later.

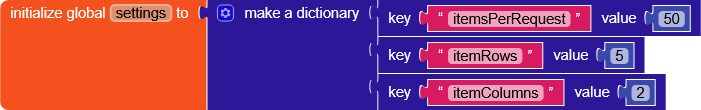

Variables

This dictionary will contain the settings for our list

• itemsPerRequest: the number of items that will be requested each time we reach the end
• itemRows: how many rows to display on the screen
• itemColumns: how many columns of items on the screen

I’d like to point out that itemRows and itemColumns are not strictly necessary and exist only for convenience, cleanliness, and organization, but we’ll see why later.

This variable will contain all the data downloaded from the database

This variable is used to block requests, but we’ll look at how it works later

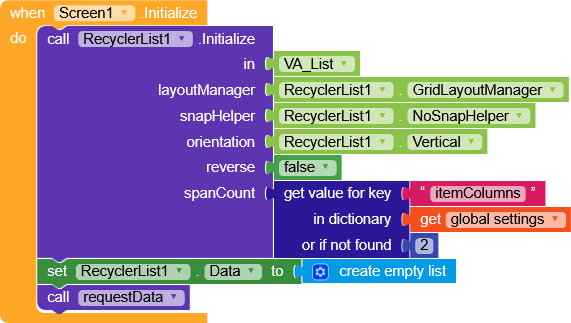

Screen.initialize

Here we initialize the RecyclerList,
note that spanCount is a settings parameter (so it could also be set directly here)
Then we perform the first requestData to populate the list.

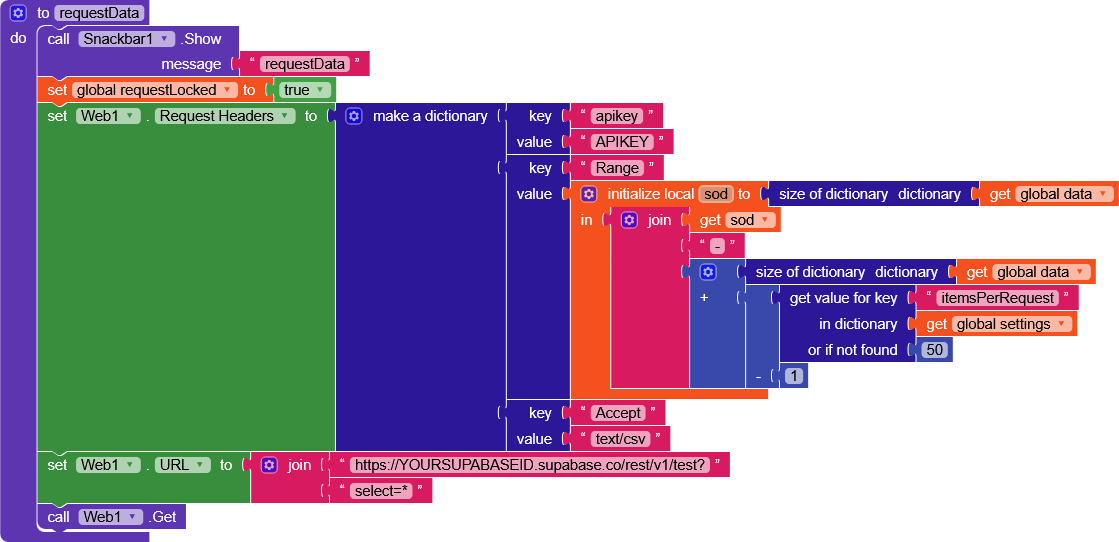

requestData

I added a snackbar to see in real time when it’s called (to be removed)

• We set requestLocked to true in order to block any other requests (in RecyclerList.OnScrolled everything will be clearer)
• We set the headers of our request, with Supabase we need to pass apikey, Range, and Accept
• I’ll focus on Range, which is the fundamental part:
  the value of this key must be the range of data we want to request. The first one will be from element 0 to 49, “0-49” (Supabase starts from 0), so I used the size of the dictionary sod(first request data = 0) “-” itemsPerRequest(50) - 1
• We set the URL with that of our Supabase database, selecting all elements select=*

https://SUPABASEID.supabase.co/rest/v1/TABLENAME?select=*
(remember to modify SUPABASEID and APIKEY)

• And we perform the Get

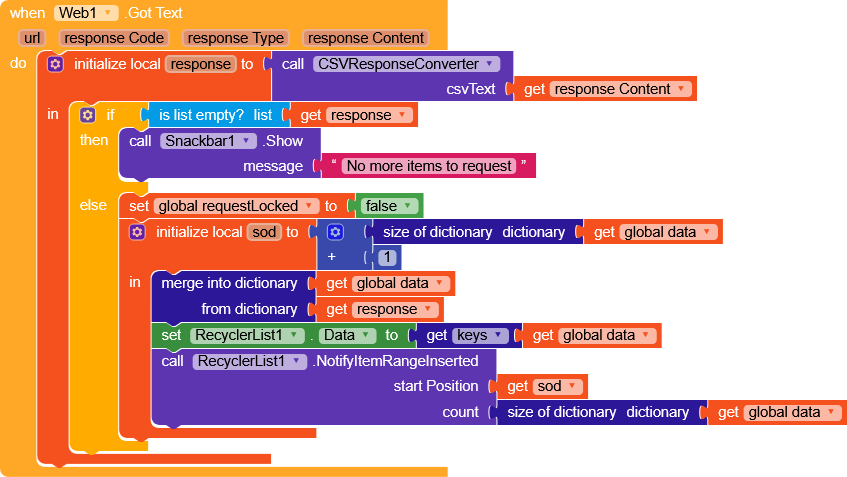

Web.GotText

• Since I prefer dictionaries over lists, I implemented a CSVResponseConverter procedure that was explained in this topic.

CSV to dictionary

Hi everyone, Today I wanted to share this function I’ve used multiple times in my projects. It converts a CSV table into a dictionary (typically used for converting from Google Sheets CSVs). Very simply, this function saves the headers into a list, loops through all the rows, and for each row’s value, it creates a dictionary. The key of this dictionary is the value from column A, and the other key-value pairs correspond to key = header and value = the corresponding cell's value. It’s easier t…

It converts a CSV list into a dictionary with

key = first column
value = pairs of "columnName" : "columnValue".

Nothing prevents you from handling everything using just a list.

• If the response is an empty list (note that I enabled ShowListAsJson)

  • I show a snackbar indicating that there are no more items to download

• If there is data instead

  • we unlock requestLocked by setting it to false
  • we create the sod variable (important because it will keep track of how many items were in data before doing the next merge)
  • we add them to the data dictionary with merge
  • we update the RecyclerList data
  • and we notify that the range
    startPosition = sod
count = sizeOfDictionary(data)
    has been inserted.

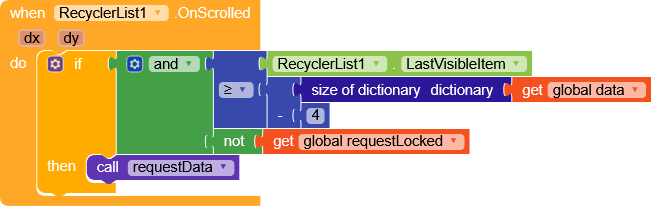

RecyclerList.OnScrolled

Here RecyclerList will check when to download data.
If the last visible element is greater than our data dictionary size minus 4, and requests are not locked, we request new data.

For example, with the current settings parameters we download 50 items at every request, while scrolling .OnScrolled checks which is the last element we are seeing.
In this case, as soon as the element at position 46 (50 minus 4) becomes visible, it performs a requestData.

Translated: 4 elements before reaching the end of the list, a requestData is executed.

In my example I set these values based on the database response speed, so they will definitely need to be adjusted according to your needs.
On Google Sheets I set it to 8 since it was slower in returning the data.

OnScrolled is executed many times while scrolling, therefore, requestLocked exists precisely to prevent multiple requestData calls.
In fact, as soon as the data is requested, requestLocked is set to true to act as a block.

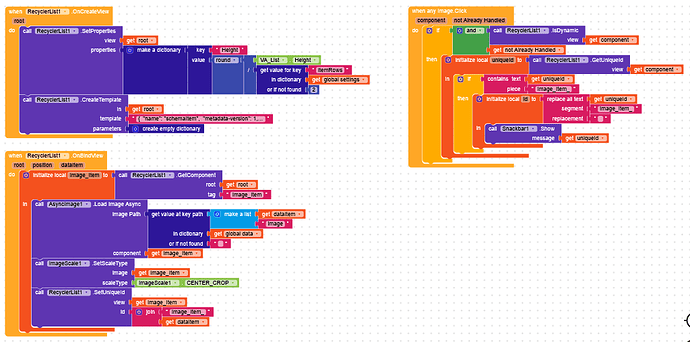

Other blocks

Here we simply handle .OnCreateView, .OnBindView, and the click on each item.
Since these are highly customizable blocks, I won’t explain their functioning in detail, but if needed, feel free to ask me and I’ll be happy to help.

Supabase AIA

SBLazyLoading.aia (146.4 KB)

---

Google Sheet

Since the data is processed through requestData and Web.GotText, we can very easily implement other databases without too much effort.

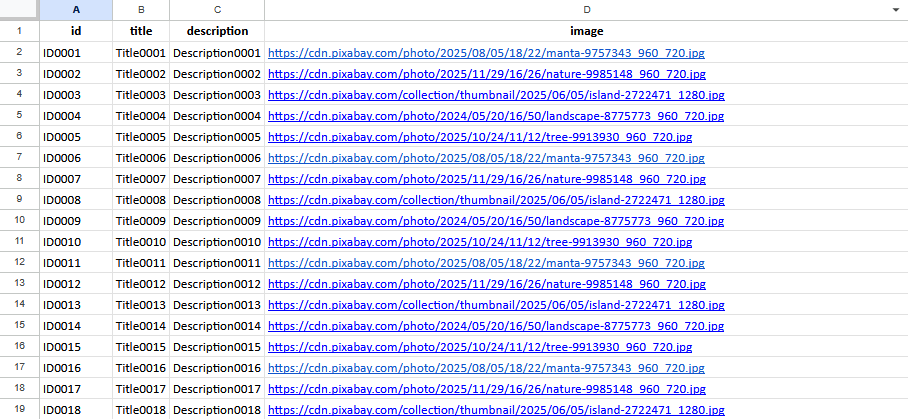

Google sheet data

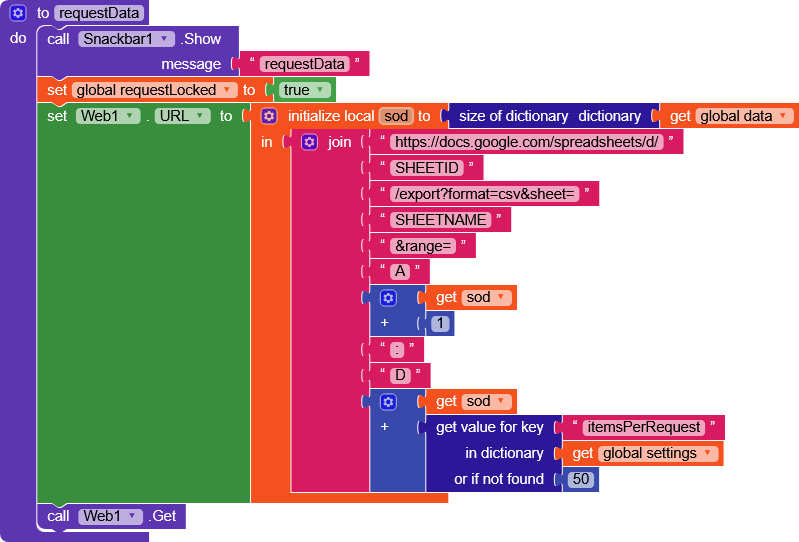

requestData

Here we will use the Google Sheets export function to obtain the range, below is an example for A1:D50

https://docs.google.com/spreadsheets/d/SHEETID/export?format=csv&sheet=SHEETNAME&range=A1:D50
(remember to modify SHEETID, SHEETNAME and the columns range)

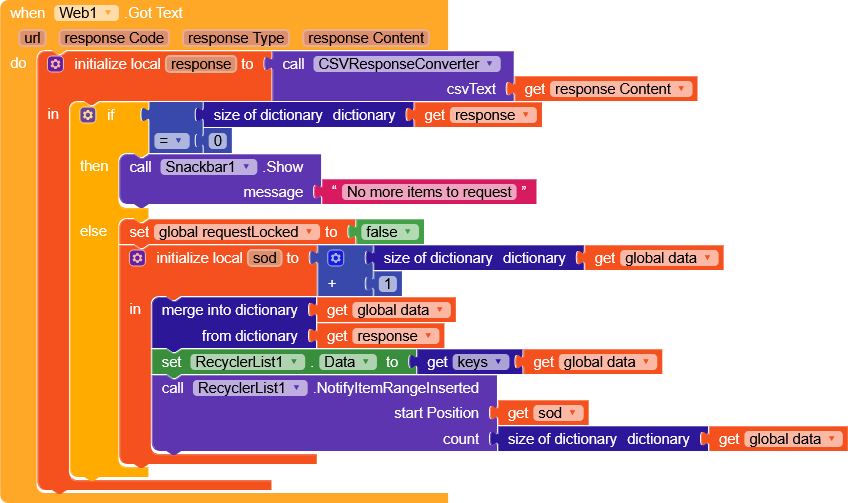

Web.GotText

Almost identical to Supabase, except for the response where we check if size of the dictionary = 0.

Google Sheet AIA

GSLazyLoading.aia (146.1 KB)

---

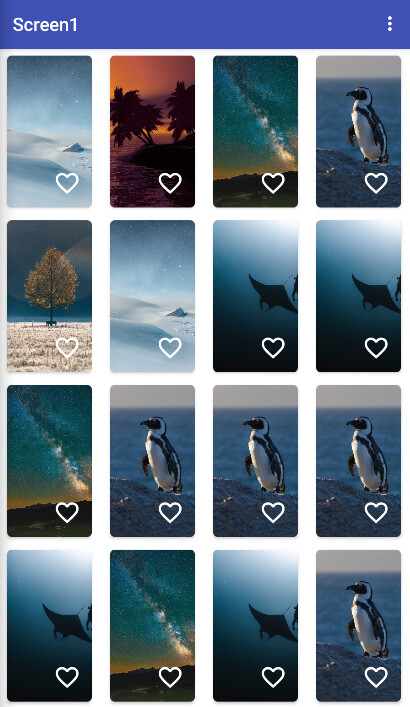

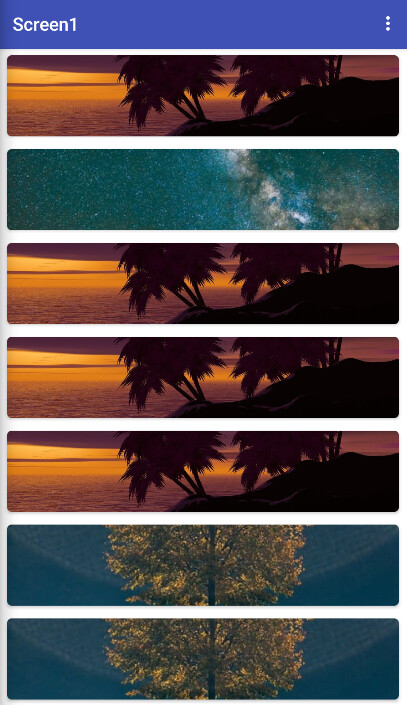

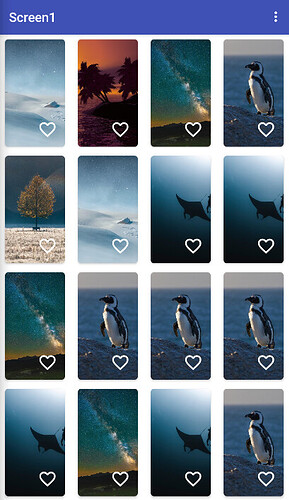

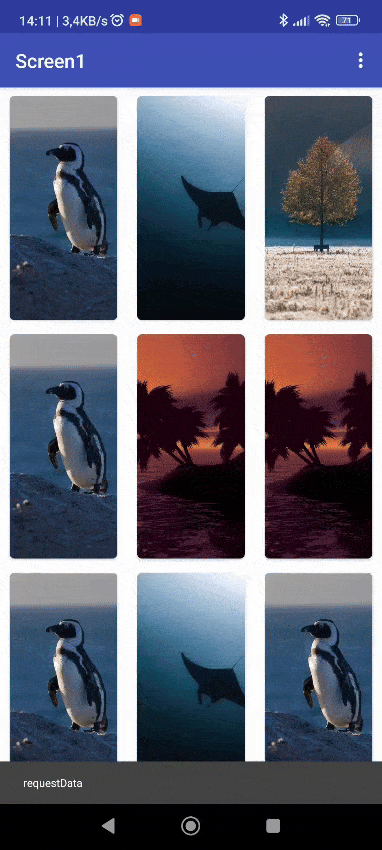

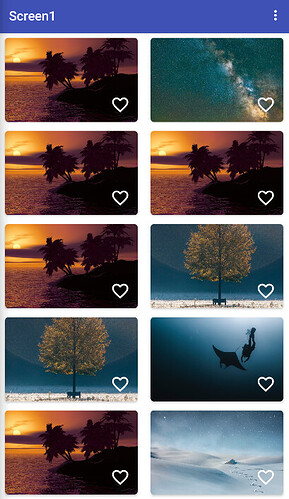

Different settings demo

@RaYzZz

@RaYzZz

Happy oding!
