Need help on how to handle Multiple Text Inputs in Dynamic View?

Discuss
, , ,
1

I searched whole community of kodular and app inventor. Tried searching on youtube but didnt find solution.

  • I created a input form with 4 text fields.
  • used recycler list view extension for achieving the dynamic creation of form.
  • now i want to get values from those text boxes on click of respective button.
  • say when i click submit button from first dynamic form, i need to get text written in respective text boxes.

here is the video preview of the app.

and here is the AIA for reference.
Students_Info.aia (115.5 KB)

any help will be deeply appreciated.

2

Hi dear,

I think I managed to get it working, but I can’t explain how it works right now :face_with_diagonal_mouth:, I really need to go to bed because I have to go to work very early tomorrow.
Still, I didn’t want to keep you waiting, so I’m sending you the project right away, and tomorrow, as soon as I have a moment, I’ll reply with a detailed explanation.

Important: all the data is saved in the infosDictionary, so if you want, you can start studying how it works a bit.

Students_Info_Edit.aia (163.6 KB)

3

i’m waiting for detailed explaination.

4

I’m at work, I’ll take care of it as soon as I get home, sorry :face_with_diagonal_mouth:

5

Here I am, sorry again for the long wait :folded_hands:

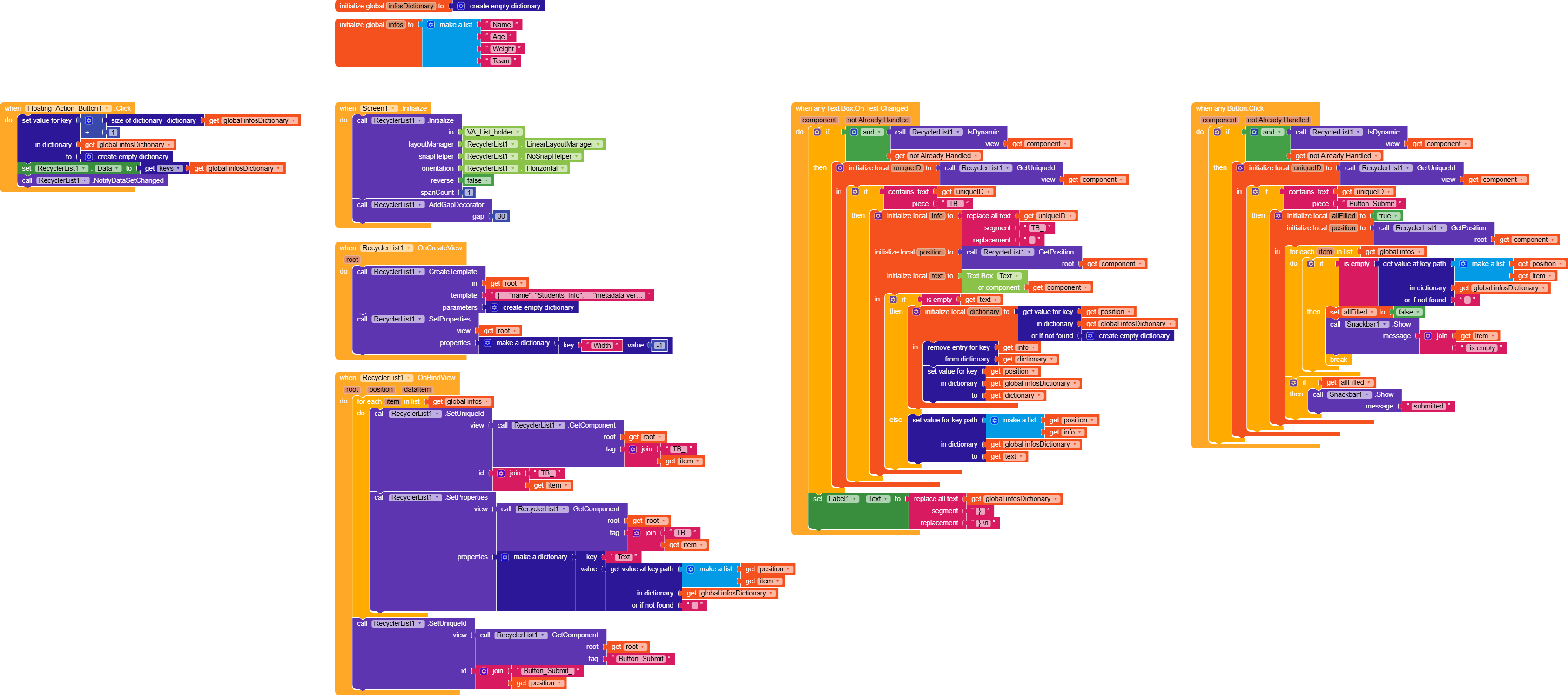

blocks (12)
blocks (12)3369×1494 487 KB

Let’s start with the variables:

  • infosDictionary: contains all the information entered through a form (the one you created).

  • infos: simply the list of info we’ll enter for a person.

Screen.Initialize

Here we initialize the RecyclerList.
I added a small gap to have some space between one form and the next.

OnCreateView

Here we create the template (I had to remove the TableArrangement because it conflicted with the RecyclerList) and set the root’s width to automatic.

OnBindView

For each info in infos, we assign a unique ID to TB_XXXX, then set its text to the value of key XXXX in the dictionary infosDictionary (if it doesn’t exist, set TB_XXXX.Text to ""). We also assign an ID to the button.

FAB.Click

Every time we click the FAB, we add a numeric key to the infosDictionary with an incremental number (size of dictionary + 1).
We then set RecyclerList.Data to the keys of infosDictionary.
This block returns a list with the dictionary keys (1 2 3 4 5 …), and finally, we refresh the RecyclerList dataset.

Any TextBox.OnTextChanged

Here, briefly, we check whether the textbox is dynamic and hasn’t been handled yet.
We get the uniqueID (TB_XXXX).
If it contains TB_, we extract the info (XXXX), its position, and its text and save them in the respectively variables.
If the text is empty, we remove the key from infosDictionary, otherwise, we save it.
(In this version, I added a label so you can visually see how the dictionary fills up)

Any Button.Click

As before, we check whether we’re actually clicking a dynamic button.
We create a boolean variable allFilled to check if all fields are filled and a variable position.
For each element in infos, we check whether the corresponding key in the dictionary is empty, if it is, we set allFilled to false and exit the loop and showing a snackbar that indicates what field is empty.
At the end of the loop, we check if allFilled remains true, if so, we display a snackbar.

That’s it!

If you still have any doubts, let me know.

AIA (updated with minor fixes)

Students_Info_Edit2.aia (163.7 KB)

1 Like
6

Thanks a lot Mate.! I will go through the details.. Your help is highly appreciated dear friend
