Qr : Read and Create Bar Code offline

1.Introduction

Qr
Recently there were some topics about generating qr code offline and storing on device and thus I got idea to create Qr extension.
It basically creates and reads qr and bar codes offline from file.

Latest Version: 3
Released: 2020-03-20T18:30:00Z
Last Updated: 2020-05-20T18:30:00Z

2.Blocks



Just 3 methods and 1 event block

3.Documentation

A short documentation for the extension…

  • Bar Code Decoded
    Event raised after decoding bar code with result
    component_event (20)
    result ~ text
  • Bar Code Generated
    Event raised after GenerateBarCode method with response and filepath.If any error occurred during encoding then filePath value will be empty.
    component_event (21)
    response ~ text
    filePath ~ text
  • Barcode Formats
    Returns a list of barcode formats which can be either encoded or decoded.Some formats can be encoded and decoded both like QR_CODE and CODE_39.
    component_method (36)
    **Returns : List< String >
  • Decode Bar Code
    Tries to decode barcode from file from given path.
    component_method (38)
    filePath ~ text
    barFormat ~ text
  • Generate Bar Code
    Generates barcode to given path with provided hints.
    component_method (39)
    text ~ text
    filePath ~ text
    height ~ int
    width ~ int
    fileFormat ~ text
    barFormat ~ text
    charset ~ text
    margin ~ int
    bgColor ~ int (Color)
    barColor ~ int (Color)

4.Downloads

Aix File

Download Link1: com.sunny.qr.aix (13.0 KB)
Download Link2: Qr.aix - Google Drive

Aia file

Download Link1: Qr.aia (32.6 KB)
Download Link2: Qr.aia - Google Drive

Apk file

Download Link1: Qr.apk (5.5 MB)
Download Link2: Qr.apk - Google Drive

5.Credits

A lot of thanks to @Kodular for this awesome platform…:heart_eyes:

6.Known bugs

  • Unfortunately extension is unable to work without having Barcode Scanner component dependencies so you will have to put a barcode scanner component besides this extension

7.Liked My Work/Support Me

Thank you for your love :heart:
As I have already said that my all (sometimes basic) extensions will be always free and I have no method to take donations so sadly you can’t support me directly.
Wait…but you can support me by downloading above files from these shortened links:

Download Aix: http://raboninco.com/21784285/qr-aix
Download Aia: http://raboninco.com/21784285/qr-aia
Download Apk: http://raboninco.com/21784285/qr-apk

8.Updates/Bug Fixes

ChangeLog Version2

Bug Fixes/Changes

  • Replaced relative filePath with abstract filePath in DecodeQrCode and DecodeBarCode methods.But both Generate methods still use relative filePath.
ChangeLog Version3

New methods

  • Added BarcodeFormats method

Changes

  • Removed some Qr related methods and events.Now you can generate qr using GenerateBarCode method by using QR_CODE as barFormat.
  • Now it will automatically ask for Read and Write permissions if they are not granted/disabled.
23 Likes

gooood

This is called creative works

2 Likes

Fine job. Thank you.

Do you know any litterature about the exact algorithm converting text to QR code and v.v? (not mean sites or programs which convert input text).
I know the pattern for one-dimensioned bar code (EAN-13). If you could suggest something about QR code it would help me.

2 Likes

Awesome work…can u provide test aia?

2 Likes

Read complete post aia is available

2 Likes

Ohh yes. I was confused due to the download titles. In both titles there is…Aix

1 Like

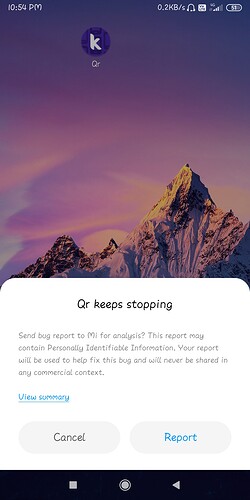

After generating apk file with your aia and tried in Redmi note 5 pro, The app is crashes immediately…

1 Like

Hi @The_K_Studio
It has been fixed and you can test it now.

1 Like

Your welcome.

Do you mean manual conversion?

I mean the mathematical pattern of how the position of little squares in the image are transformed to text and vv.
Like in EAN-13 bar code, the set of numbers are evaluated are trace vertical bars of a certain width, separated by blanks of a specified width.

1 Like

Sorry…I have not so much deep knowledge :worried:
But this can be useful:

2 Likes

I was aware of it. It seems that algorithm of QR is much complicated than EAN-13. I didn’t manage to find any information more.
Anyway, thanks for your interest.

1 Like

I have granted permission…but

1 Like

It is working for me…

Which android version are you using?

Android 9, Redmi Note 5 Pro

1 Like

Can you try it on another device?

Same problem. Tried in Android 8

1 Like

Something is not right with the permission as I get the same error however, adding ask for permission block make it works


2 Likes

Does anyone know how to use the external QR method? since the phone camera is not fast enough as the external reader.

1 Like

Thank you @Boban
I will try to fix it as soon as possible :heart_eyes:

2 Likes
