ImageMap extension #Free or with donation for covid-19

[marco_tanzi]

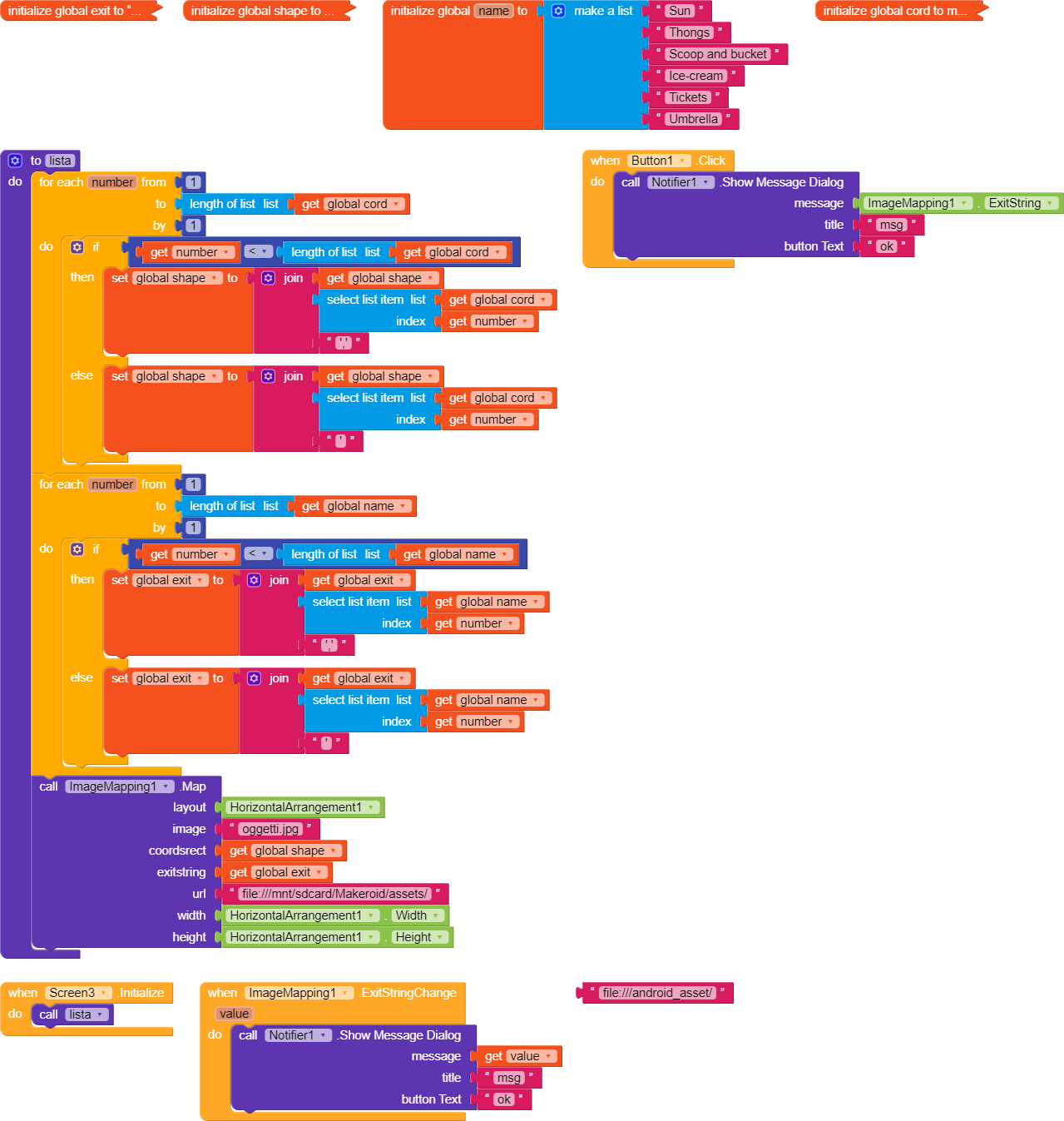

With ImageMap Extension a user can click on different areas of the image and receive a return string.

I used RESPONSIVE IMAGE MAP GENERATOR.
https://www.zaneray.com/responsive-image-map/
to generate the X and Y coordinates.

Built with AppyBuilder Code Editor.
https://editor.appybuilder.com/

Note: Use the path file:///android_asset/ when you built your app.

MapDemo.aia (81,3 KB)

com.appybuilder.chiccovision.ImageMapping (5).aix (11,2 KB)

Please donate to the Italian civil protection for covid-19.

Please if you donate send me a message.
Regards Marco.

[Angelo_Angius]

Usefull tool, but .aia don’t load in Creator

[marco_tanzi]

Fixed in the first post.
Sorry .

[Boban (Boban Stojmenovic)]

@Angelo_Angius

but .aia don’t load in Creator

@marco_tanzi

Fixed in the first post.

Nopp, because of this

I canot enter my aia after export it

At the beginning, I used to import the aia file from MIT app inventor to Kodular. It was success that I could enter (.aia) , but I exported (.aia) file after saving, then imported it again that could not open the file, it stoped in the loading file interface. [WhatsApp Image 2020-04-08 at 2.59.13 PM] Here is my (.aia) file. plz help me and see if it can be solved: App (1).aia (2.7 MB)

Your aia doesn’t contain any screens

[marco_tanzi]

@Boban

Nopp, because of this

At the beginning, I used to import the aia file from MIT app inventor to Kodular. It was success that I could enter (.aia) , but I exported (.aia) file after saving, then imported it again that could not open the file, it stoped in the loading file interface. [WhatsApp Image 2020-04-08 at 2.59.13 PM] Here is my (.aia) file. plz help me and see if it can be solved: App (1).aia (2.7 MB)

Your aia doesn’t contain any screens

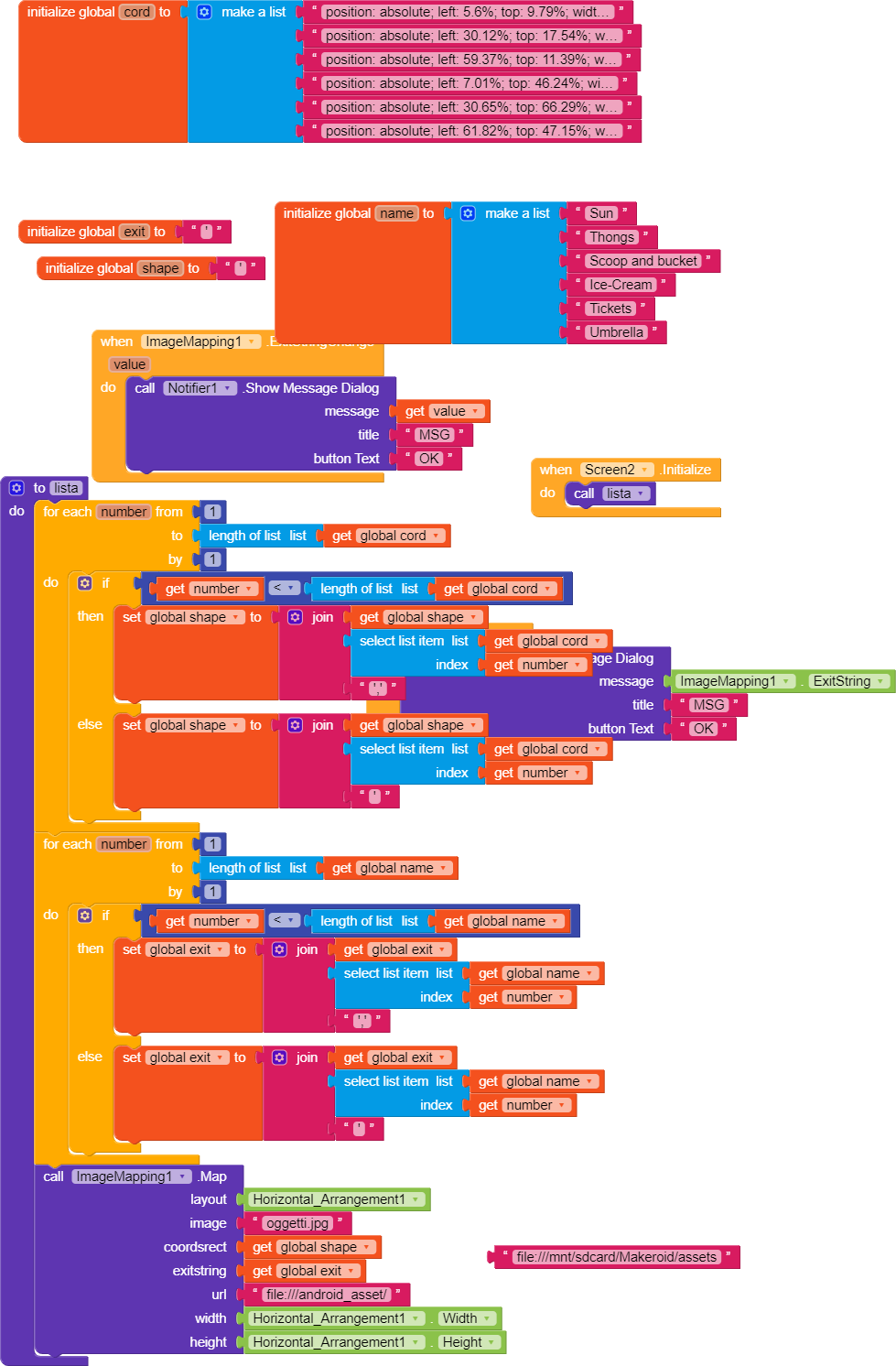

as you can see MapDemo is entirely built with kodular, except the extension built with Code Editor.

Anyway to try ImageMapping extension

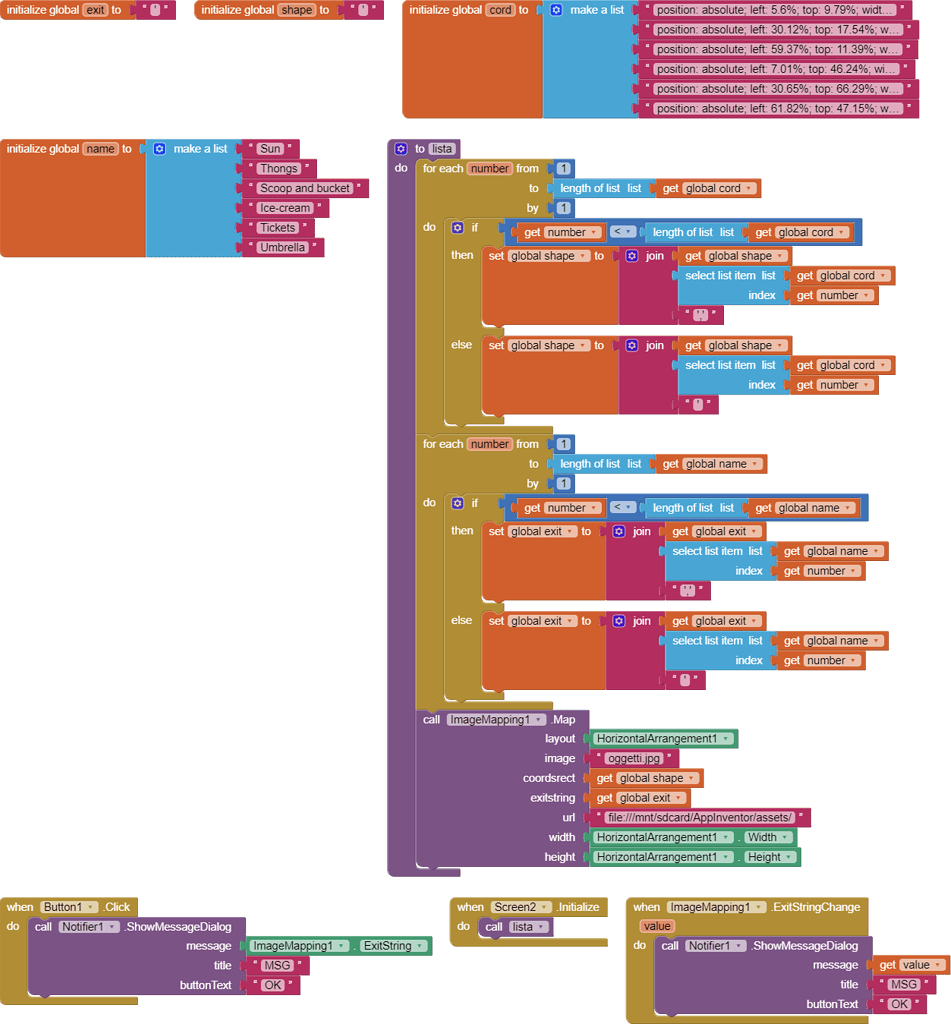

with AppInventor 2:

ImageMap extension #Free or with donation for covid-19

[msr79526 (SR Official)]

Provide an demo apk or screenshot. Your aia doesn’t worked

[marco_tanzi]

@msr79526

worked

MapDemo_copy (2).apk (5,0 MB)

[luv.ak.tech (Aarush Kumar)]

is this a custom map extension if yes then where is the option of adding markers and all?

[marco_tanzi]

This Is image block

[marco_tanzi]

ImageMap extension #Free or with donation for covid-19

This is the topic in appinventor community

[luv.ak.tech (Aarush Kumar)]

can you add a result image?

[marco_tanzi]

yes but how do you find the coordinates on an image that you don’t have at hand
