Advance APK Tool for Kodular Developer (APK STUDIO EDITOR)

Make your changes

I been using it for a years since I started making apps on a drag and drop platform and I was really annoyed how some of developers ask for DM for someone that needs help on making some changes on manifest, sdk and ask for payment even it can be done easily and FREE.

Use APK Editor Studio v.1.5.0 for
  • Personalize your One Signal icon for push notifications
  • Edit/Modify your manifest file
  • Unlimited assets for APK size
  • Update higher target SDK if Kodular still not supporting new Android version
  • Check your Firebase API credentials if safe
  • and more..

Personalize One Signal icon

Step 1: Let's assume you already using one signal and how to setup it and one thing that is missing is personalize your icon everytime you need to release a push notifications.
The first extension that can make that possible is this by Jerin One-signal.

By using ā€œyaā€ on the small icon
ya

And add-ons for that is your accent color using HEX codes
f1

But it is not working on some Android version and some a square icon that looks curropted. So what you can do is import the one signal lib icons for every Android version.
Make your one signal icon here on Android Asset Studio.

  1. Select image and upload your app logo as transparent type (.png)
    2.Download it as zip and unzip it ic_stat_onesignal_default.zip.

After you unzip the file you can see all of this folders and file with the icons
one

This are the files you need to copy and paste it inside your appā€¦ Now compile your app in Kodular, after a compiled APK and open it with APK Studio Editor and decompile itā€¦

Click ā€˜Open contentsā€™ and /res/ folder and paste all drawable folders.
After you paste all of it and if your nothing to do anything more on your app then click SAVE to compile your app again and your good to go now.

TIP: You can actually personalize your notifications sounds and more try to explore it Android Customizations

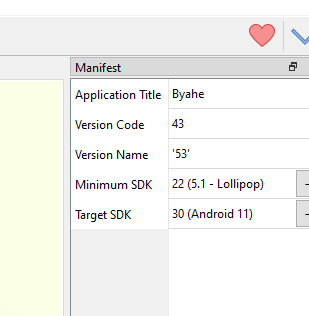

Edit your SDK's

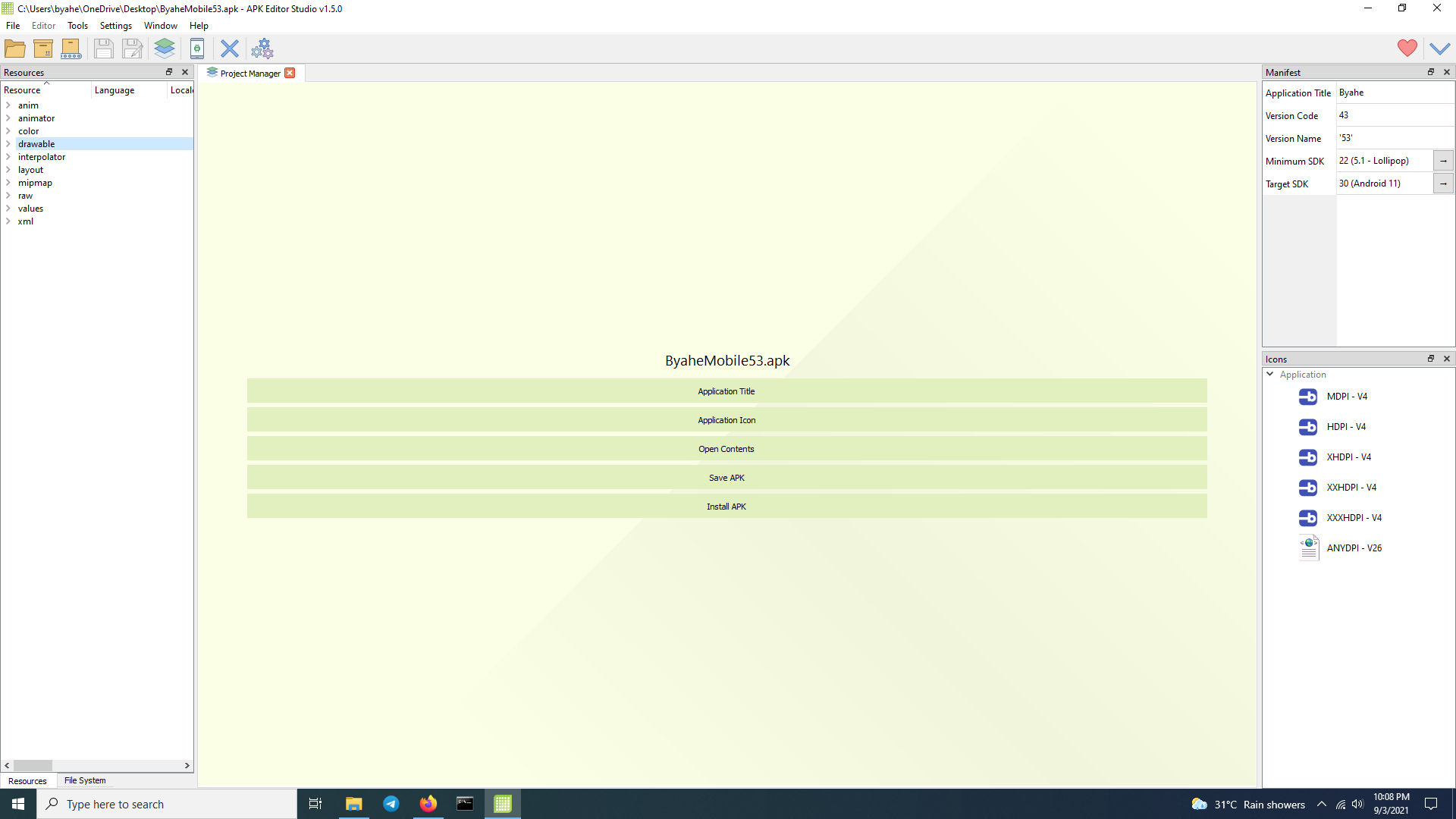

Your version name,apk name, apk icons, version but not your package name (i guess).

sdk
Itā€™s always updated on the latest Android versionā€¦ After editing and if your nothing to do anything more on your app then click SAVE to compile your app again and your good to go.

Edit Manifest file

I think this is pretty aware to any developers about editing a manifest file and it can be done also here in Android APK Studio..

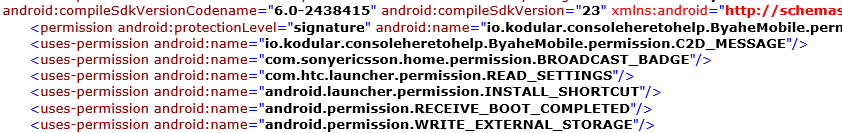

manifest

Open it with any code editor

After editing and if your nothing to do anything more on your app then click SAVE to compile your app again and your good to go.

Unlimited App size (Assets)

This is just for the app assets like videos,images,audios,files that will be stored on your apk but watch out your RAM of your app and optimize everything..

Step1: First you must ready your apk assets and familiarize each file names.

Step2: Then program it while blocking by already using the file names even it wasnt upload it on your Assets Manager in Kodular, keep an eye for your UI fi its related on design, you are blocking it blind :sweat_smile:
assets

Step3: Same method, compile in Kodular and decompile using Android Editor Studio and open res/assets/ and paste all your prepared bigger assets. Always test it and install if the apk read your files.

After make a changes and if your nothing to do anything more on your app then click SAVE to compile your app again and your good to go.

Firebase Credentials

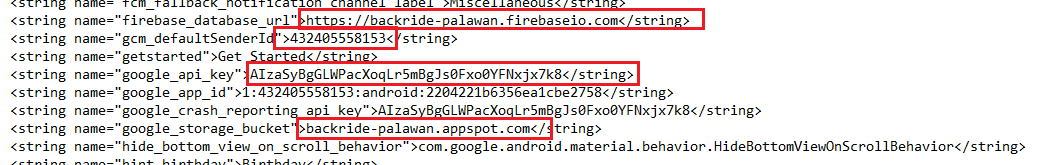

If you use to put all firebase apikeys and token on the designer properties, then someone can actually see it using other apk editor you can check out here ``res/values/string.xml``.

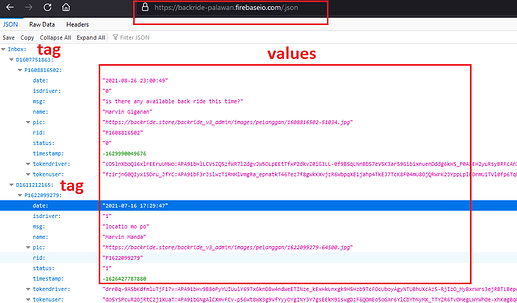

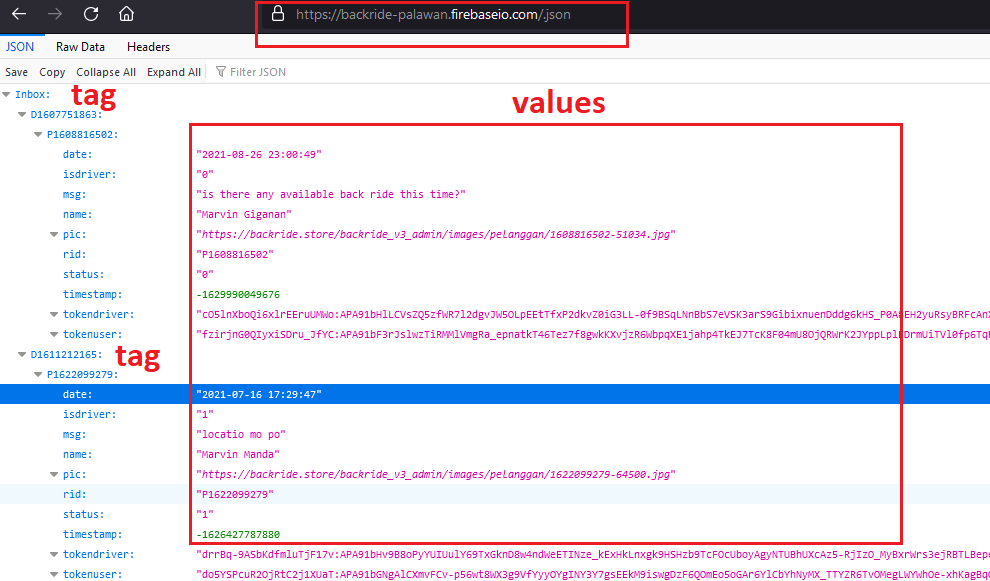

See the sample above, you can almost have everything. If someone want to hack your Firebase database they will just gonna create a machine project with your apis and modify,destroy or flood. especially if your allow all your permission rules to true for write and read data. Make sure to secure it with authenticating users. Another trick is if you want to see what inside the database they will just gonna pull out your firebase database URL and load it on a httpsā€¦ and guess what by adding .json. Like this
https://backride-palawan.firebaseio.com/.json. And try to load this url in a tab youā€™ll see the data

So make sure to use obfuscated string block or encrypt, even nothing is safe but adding sort of this effort will save your work.

APK Editor Studio has more to offer you just need to explore. Hope you love what Iā€™d share because some of our developer can do this without paying to anyone if they learn to do it for free and learning new things is FUN!..

Step up while using Kodular, download the APK Studio Editor itā€™s FREE.

16 Likes

Great guide.

Nice guide.

Useful guide :smiley:

Really it is a Nice work

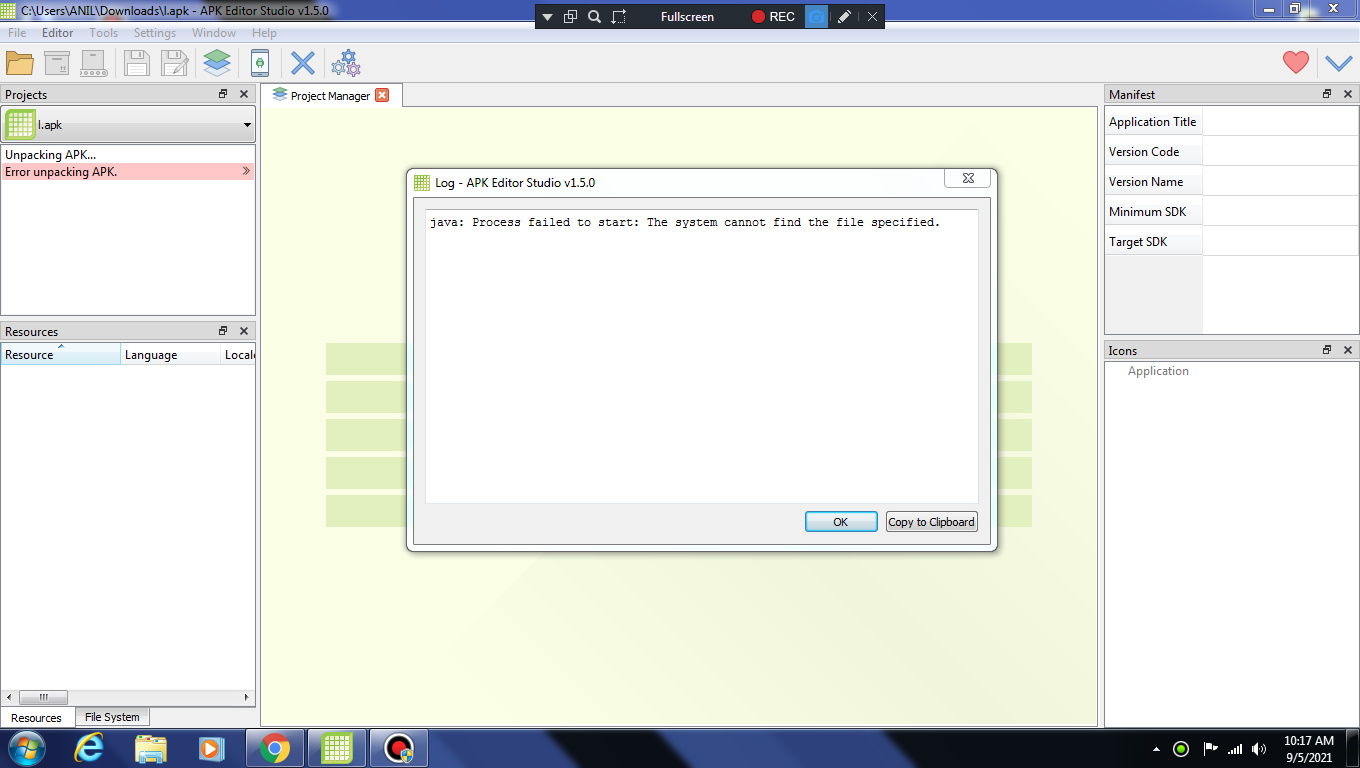

java: Process failed to start: The system cannot find the file specified.

1 Like

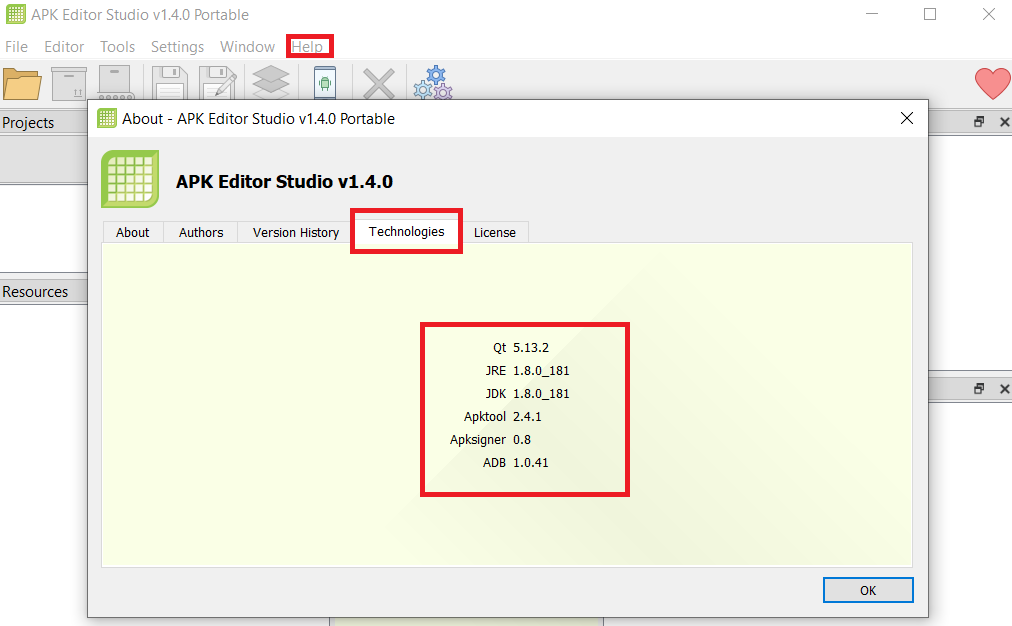

Most probably java isnā€™t installed or not configured correctly. Go to Help, About APK Editor Studioā€¦ ā†’ select Techologies Tab and put a screenshot here

1 Like

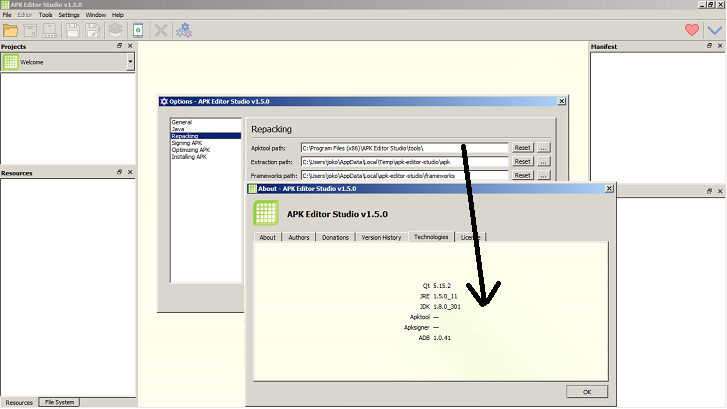

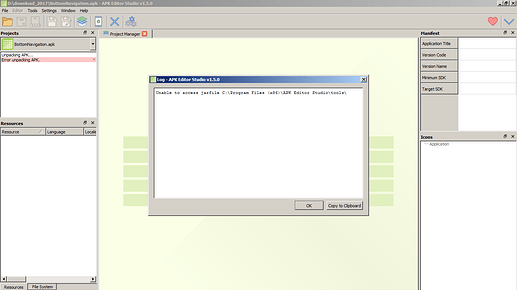

Why apktool not showing ā€¦even the path is correct and the jar file are exist.

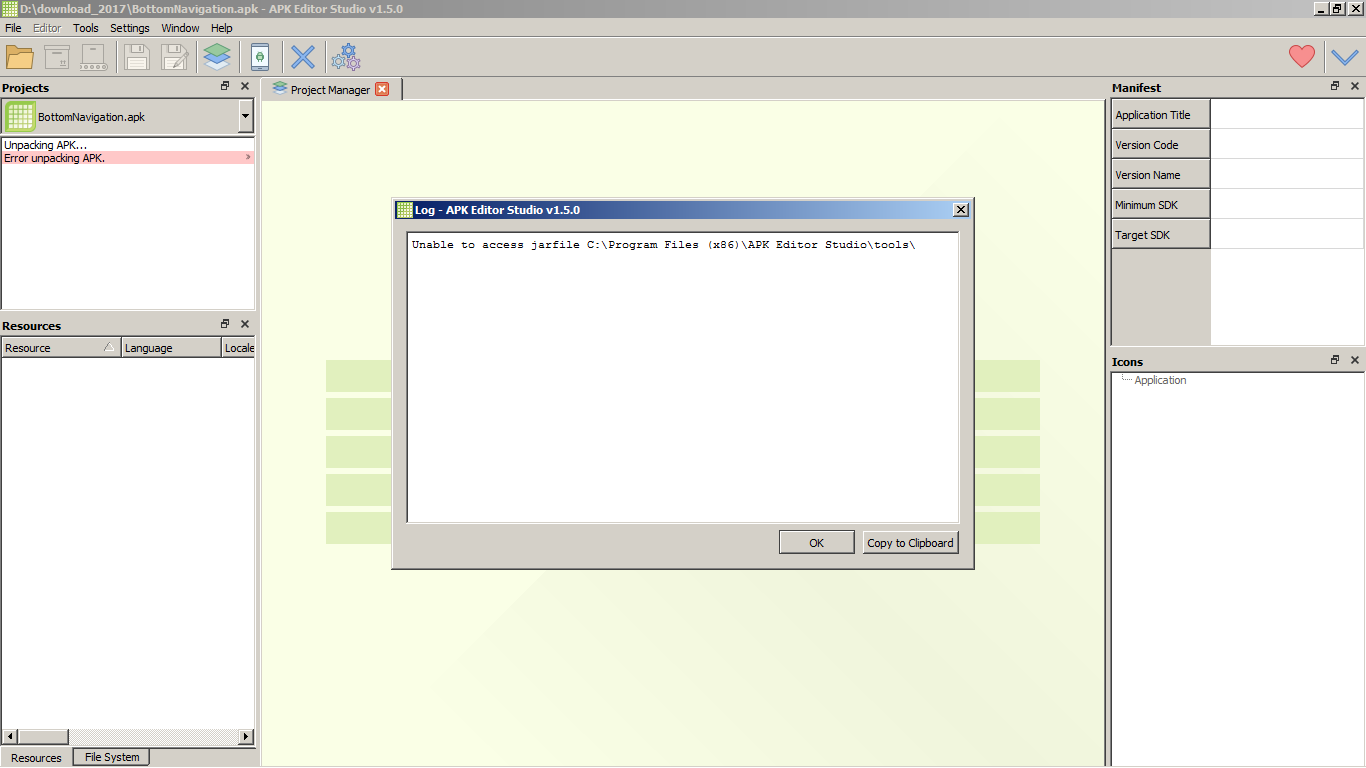

If I open the APK , I have error while unpacking ā€¦

my system

Whats wrong with my Installationā€¦

Can we build aab file using it?

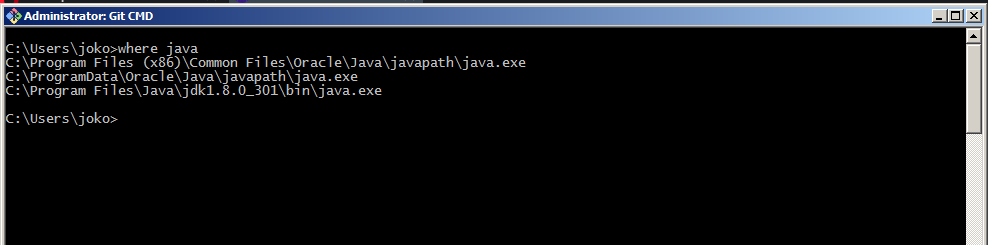

Is Java bin path present in your PATH environment variable?

ĪĪæ this tool is for decompiling and recompiling apk files not aab

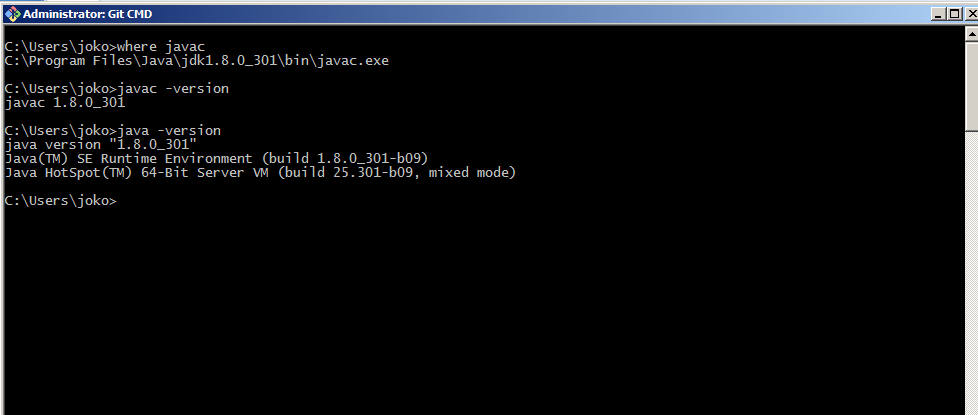

Yes , I had set the PATH

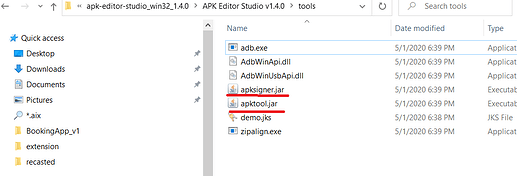

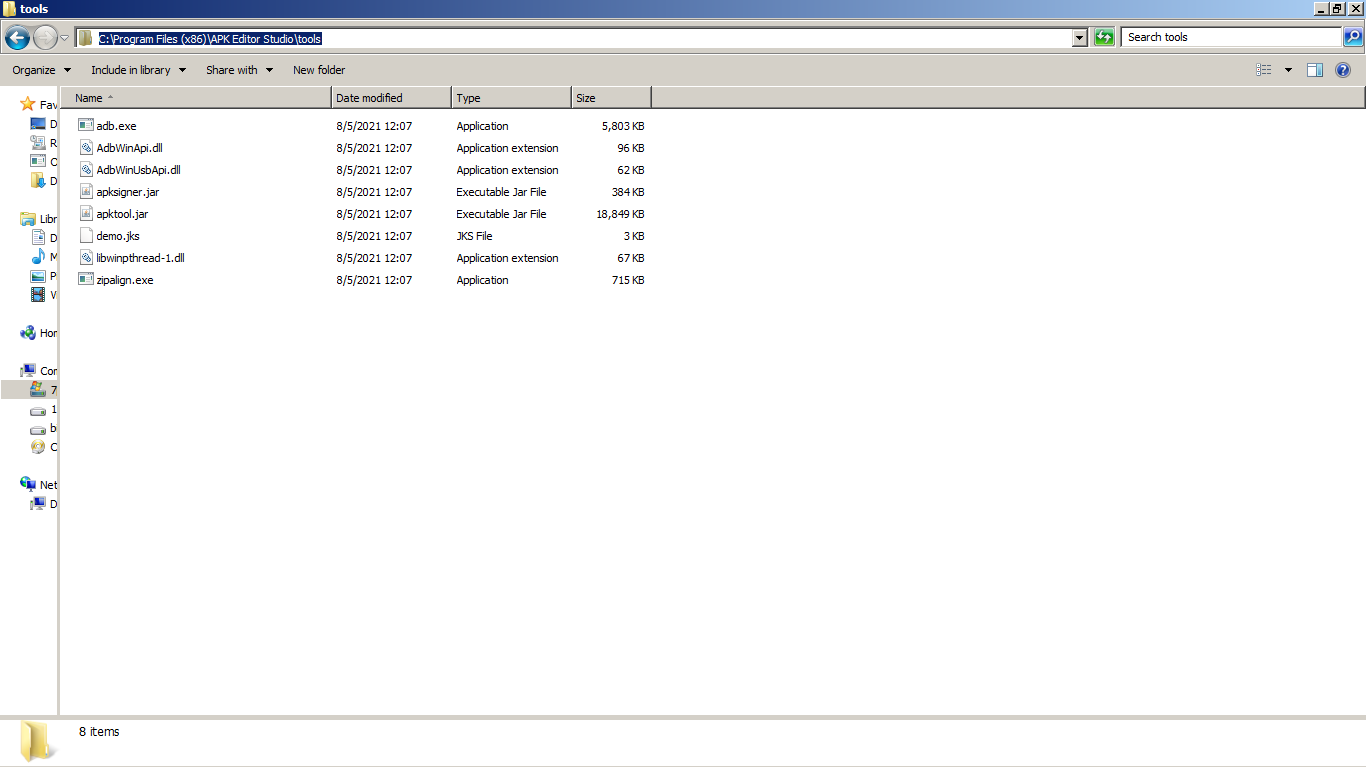

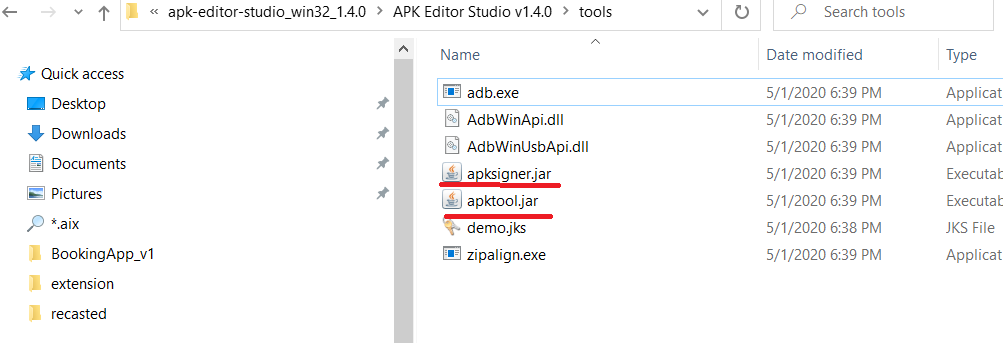

Go to apk tools editor folder ā†’ tools and post a screenshot

Why not just use the default settingsā€¦

Reset each


Before I posted, I Use default Settingā€¦ same resultā€¦ thatā€™s why I tried to fill the field

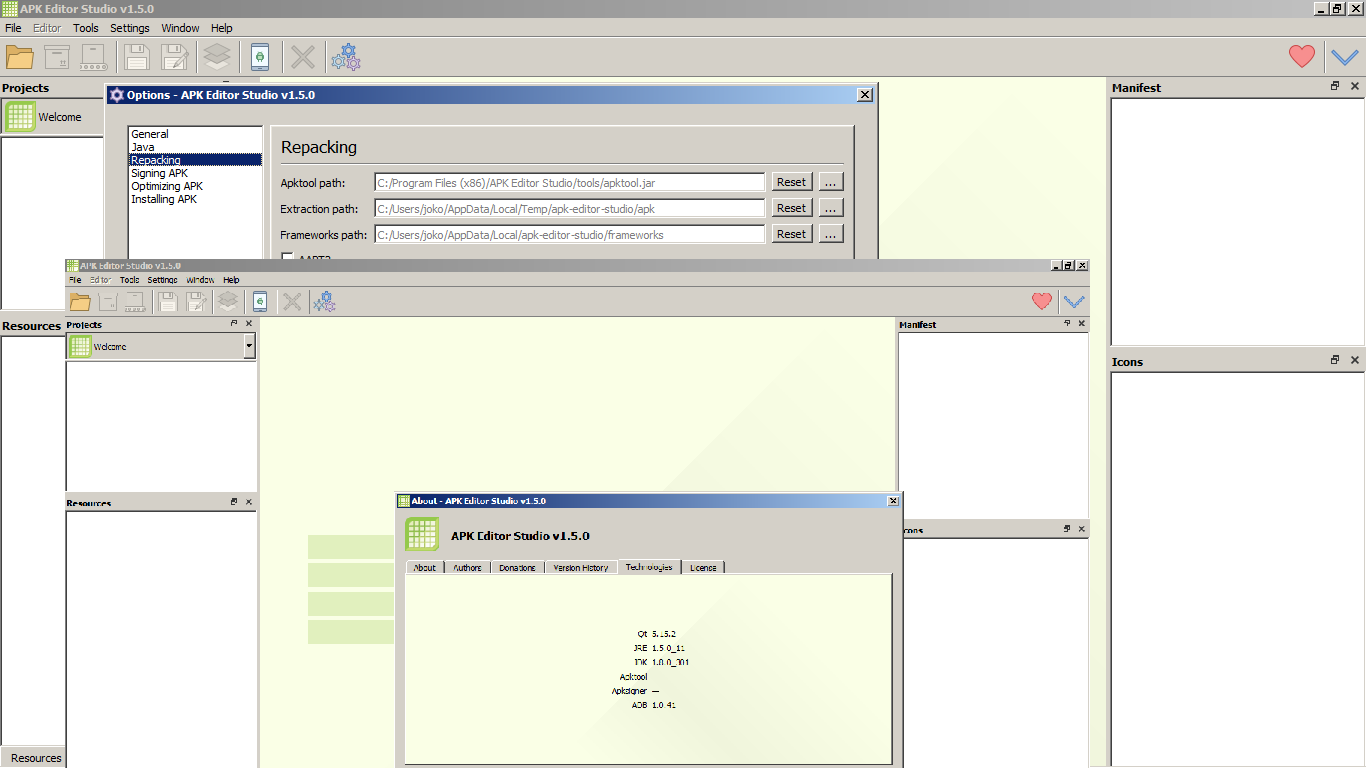

To make sure as @Boban saidā€¦ I tried to reset configuration
and the result

There are already two guides on this:

In addition:

  1. You cannot add unlimited assets (Play Store limit, for APK ā‰¤ 100 MB).

  2. The app must be signed with the original keystore (this step is described in detail in my video tutorial).

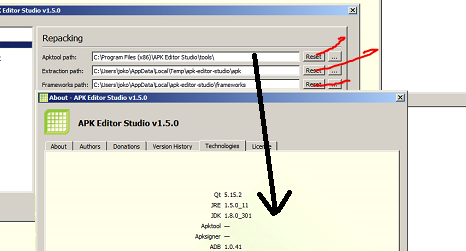

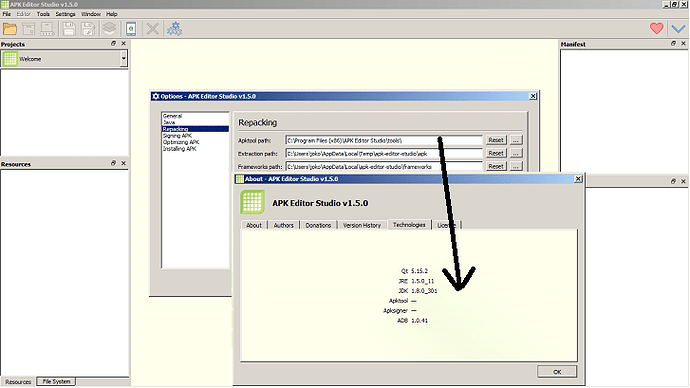

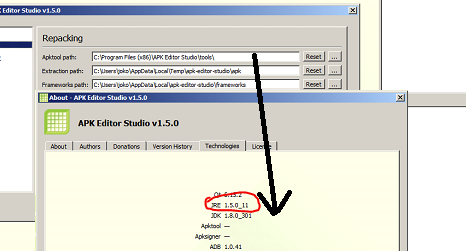

Wondering why your JRE shows 1.5


2 Likes

Let me check againā€¦ my JREā€¦

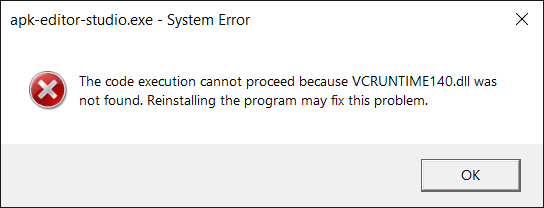

I cannot open apk editor studio
